Specifications
Brand Name :
Anfeng / AF
Model Number :
RES-3T
Certification :
CE, GS, ISO9001
Place of Origin :
China
MOQ :
100 pcs
Price :
Call or Email for quote
Payment Terms :
T/T,L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
Within 45 days after order confirmation
Packaging Details :
Carton + pallet, or wooden box
Material :
100% Polyester
Key word :
Eye and eye lifting sling, polyester round sling
Color :
Red
Standard :
JB/T 8521-2007, EN 1492-2:2000, AS 4497.1-1997
Packaging :
Carton+pallet, wooden box
Usage :
Lifting
Length :
custom
Custom service :
OEM, ODM
Description

Engineered for Safety & High-Efficiency Rigging (EN 1492-2 / ASME B30.9)

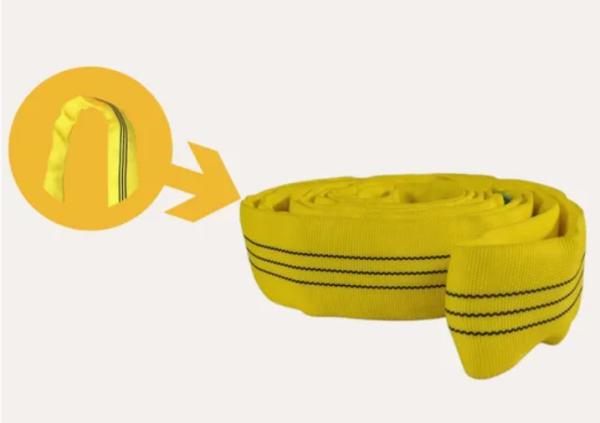

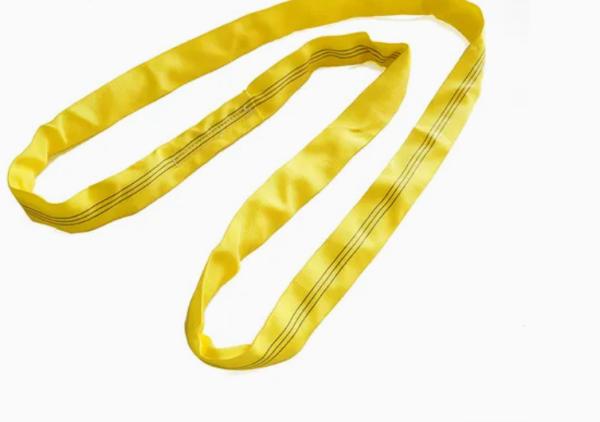

When lifting capacity meets legal compliance, you need more than just a sling – you need a certified lifting solution. Our 3t Endless Round Webbing Sling is manufactured in an ISO 9001:2015 facility, offering European and American rigging professionals a perfect balance between factory-direct pricing and third-party verified safety standards.

Unlike standard yellow cargo straps, this endless sling is designed for overhead lifting, heavy equipment securing, and industrial hoisting operations where zero downtime is mandatory.

Key Product Differentiators (Why Our Sling Stands 40% Apart)

  • 100% Polyester with High-Visibility Yellow Coating: Industry-standard high-visibility yellow alerts operators to wear and damage instantly. The UV-stabilized polyester resists degradation from sunlight, chemicals, and moisture – critical for outdoor construction sites in the EU and USA.

  • Endless Design = Uniform Load Distribution: No seams, no weak points. The continuous loop construction allows the sling to conform to the load shape, distributing tension evenly across all fibers. This reduces pressure points compared to flat web slings.

  • 3-Ton Working Load Limit (WLL) with 7:1 Safety Factor: Tested and certified to a 21-ton breaking strength. The sling meets the rigorous 7:1 design factor required for ASME B30.9 compliance (above the European minimum 5:1), giving you an extra safety buffer for unpredictable shock loads.

  • Wear-Resistant Edge Protection Built-In: The webbing edges are reinforced using a proprietary double-stitched ultrasonic cutting process, preventing fraying under abrasive concrete or steel edges. No need for separate corner protectors for light-to-medium abrasion.

  • Stitched Tattle-Tail ID Label (Permanent): Each sling includes a color-coded, wear-patch-protected label displaying WLL, serial number, and batch traceability. Our label is recessed into the sling body – not glued on – ensuring it survives job site abuse.

Technical Specifications (Parameter Table)



Parameter Specification
Working Load Limit (WLL) 3,000 kg (3 metric tons / 6,600 lbs)
Safety Factor 7:1 (Standard: 5:1 for Europe, 7:1 for USA)
Material 100% High-Tenacity Polyester (PES)
Sling Type Endless Round Webbing Sling
Color Signal Yellow (RAL 1003) with Black/Painted ID Tag
Width of Webbing 60mm (2.36 inches)
Effective Length (Circumference) Custom: 1m, 2m, 3m, 4m, 5m, 6m (Made-to-order for longer lengths)
Min. Breaking Strength 21,000 kg (46,300 lbs)
Temperature Range -40°C to 100°C (-40°F to 212°F)
Standards Met EN 1492-2:2000 + A1:2008, ASME B30.9, ISO 4878
Certification Batch test certificate included; Third-party inspection (TUV, SGS) available
Surface Treatment UV & chemical resistant coating
End Fitting Compatibility Shackles, hooks, eye hooks, crane hooks (endless design wraps through hardware)

Key Advantages for Professional Riggers

1. Superior Lifting Flexibility

The 3t endless sling adapts to basket, choke, and vertical hitches without removing the sling from the hook. Its soft, lightweight body (under 1.5kg per meter) allows one person to handle loads that would require two people with chain or wire rope.

2. Load Protection – No Scratching

Metal slings damage painted, polished, or pre-finished cargo. Polyester webbing is non-marring and non-sparking, ideal for lifting stamped steel, aluminum extrusions, machinery housings, and finished wood products – common in automotive and aerospace logistics.

3. Cost-Per-Lift Advantage

Factory-direct pricing cuts 30–40% off European-distributor brands. You pay for proven polyester and certified seams, not brand marketing. Frequent bulk order discounts available for construction fleet managers and supply houses.

4. Easy Visual Inspection (OSHA Compliant)

Before each lift, inspect the yellow sling. Red inner fibers indicate abrasion damage. No special tools or gauges required. This simple red-yellow warning system is already trusted by major oil & gas riggers.

Recommended Applications (EU & USA Markets)

  • Steel service centers – bundling pipes and beams.

  • Precast concrete yards – lifting panels with soft slings between formwork.

  • Machine moving & plant maintenance – hoisting gearboxes and motors.

  • Wind tower assembly – blade root and tower section lifts (anti-static version available on request).

  • Shipping & ports – securing containers and break-bulk cargo.

Order & Customization Options

  • Lengths: Exact cut-to-length from 0.5m to 12m circumference.

  • Reinforced eyes: Double-thick wear pads for choke hitch lifting.

  • Custom tags: Add your company logo or asset number.

  • Packaging: Each sling individually polybagged with traceable test certificate.
