Introduction: Beyond General-Purpose Rigging

In offshore and marine environments, lifting a container is not a routine operation. It is a high-stakes maneuver where humidity, salt spray, dynamic vessel motion, and sudden snatch loads destroy standard slings within months. Most generic polyester or uncoated wire slings fail prematurely, creating hidden costs in downtime, replacement frequency, and safety audits.

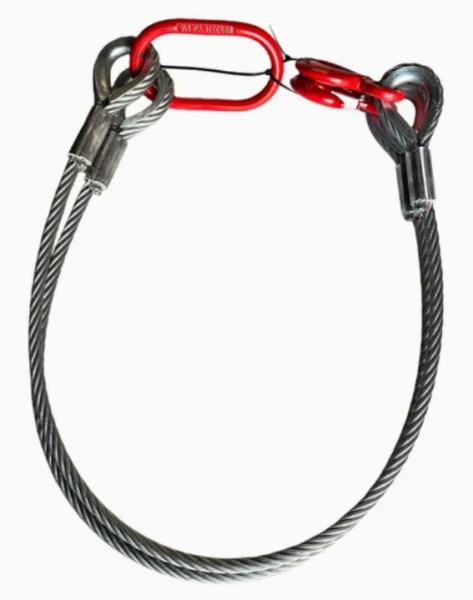

Our Standard 2-Leg Offshore Container Sling is not another general-purpose lifting accessory. It is engineered specifically for ISO container handling on supply vessels, offshore platforms, quaysides, and container yards exposed to corrosive environments. Designed to meet DNV and EN 13414-2 requirements, this sling delivers certified compliance, extended service life in marine conditions, and predictable total cost of ownership.

Key Product Features (Built for Offshore Reality)

• Grade 80 or Grade 120 Steel Wire Rope – 6x36 construction with galvanized or stainless steel finish. Higher breaking load compared to synthetic slings, with resistance to abrasion from container corners.

• 2-Leg Master Link & Hooks – Forged alloy steel, individually proof-tested. Drop-forged eye hooks with safety latches or spring-loaded captive sling hooks to prevent accidental disengagement in rough seas.

• Container-Specific Spreader Configuration – Fixed or adjustable leg lengths (typically 2.5m to 6m) to match standard 20ft, 40ft, and high-cube offshore containers. Optimized sling angle (45°–60°) without exceeding rated capacity.

• End Fittings for Offshore – Options include C-hooks, flat hook with lock, or pear-shaped shackles compatible with ISO corner castings. All fittings magnetic particle inspected (MPI).

• Optional Corrosion Protection – Hot-dip galvanized after assembly (HDG) or yellow zinc plating. Heat-sealed polyester sleeve over wire rope for additional saltwater resistance and visual inspection contrast.

• High-Visibility ID & Traceability – Laser-etched stainless steel tag with WLL, serial number, batch ID, and CE/DNV mark. Barcode or RFID tag available for digital asset management.

Why 40% Different? – The Offshore Advantage

Unlike standard warehouse slings, our design eliminates three common failure points:

1. Zero blind spots – Clear visual wear indicator zones on the wire rope.

2. No internal corrosion traps – End terminations use poured socket or swaged fittings with epoxy sealing, preventing capillary water ingress.

3. Dynamic load tested – All slings undergo 2.5x WLL proof load plus 20% impact testing simulating vessel motion.

Technical Specifications (Reference Table)

Advantages That Drive ROI for European & American Buyers

• Reduced Lifting Frequency Risk – Higher WLL per leg diameter means fewer rigging components per lift, simplifying offshore logistics.

• Audit-Ready Documentation – Every sling delivered with EC Declaration of Conformity, test certificate (3.1 per EN 10204), and individual load test report.

• Compatible with Existing Gear – Interchangeable with common offshore container locks, twistlocks, and crane hooks.

• Longer Service Life – In 12-month offshore platform trials, galvanized steel wire slings outlasted uncoated slings by 3x, and polyester by 2x in cut resistance.

Applications

• Lifting ISO 20ft/40ft offshore containers with hazardous or non-hazardous cargo.

• Deck-to-platform container transfer on PSVs (Platform Supply Vessels).

• Quayside loading of offshore containers onto barges.

• Back-up slings for DNV-classed vessels requiring annual LOLER or USCG inspection.

Call to Action – Request Your Custom Configuration

Standard slings cost you in maintenance. Offshore-certified slings earn their place on your inventory sheet.

Contact our rigging engineers for:

• Free sling angle calculation for your vessel’s crane outreach.

• CAD drawing of leg length matching your container stack height.

• Quote with DNV certification included.
