PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
Specifications
Brand Name :
SHARE FILTERS
Model Number :
SG-PPS-05
Certification :
SGS RoHS
Place of Origin :
Zhejiang, China
MOQ :
300 m2
Price :
$13 for 300 m2, $12 for 10,00 m2, $11 for 3, 000 m2
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
1, 0000 m2 / day
Delivery Time :
5 working days
Packaging Details :
PE bag and carton
Material :
100% PPS Monofilament
Width :
Up to 300cm
Forms :
Fabric, Bag, Custom Shape
Performance :
High Performance Material
Features :
Heat Resistance, Chemical Resistance, Hydrolysis Resistance, Flame Retardancy
Applications :
Ion Exchange Processes, Alkaline Water Electrolysis for Hydrogen Production, Desalination...
Description
Resin Mesh PPS Mesh Membrane
High-performance PPS mesh membrane with 120 wire diameter, 55 µm eye opening, 156 µm open area, 55% thickness, and available in sizes 100cm, 200cm, and 300cm.
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
Product Specifications
Material: 100% PPS Monofilament
Width: Up to 300cm
Forms: Fabric, Bag, Custom Shape
Key Features
  • Heat resistance (continuous use up to 190°C)
  • Chemical resistance to acids, alkalis, and organic solvents
  • Hydrolysis resistance at elevated temperatures
  • Flame retardancy
  • Uniform fabric structure
  • High porosity and large surface area
  • Affordable pricing
Applications
  • Ion exchange processes
  • Alkaline water electrolysis for hydrogen production
  • Feed and food drying
  • Filtration for food, semiconductor, and chemical applications
  • Chemical catalyst substrates
  • Oil-water separation
  • Gas filtration and purification
  • Wastewater treatment
  • Air pollution control
  • Desalination
Technical Specifications
Available Mesh Options
Thread Diameter: 30 - 250 µm
Mesh Count: 25 - 420 per inch
Mesh Opening: 30 - 800 µm
Open Area: 25 - 60%
Mesh Thickness: 56 - 508 µm
Pattern: Plain weave, twill weave
Width: Up to 300cm (custom widths available)
Technical Datasheet
Material Item No. Specification Thread Diameter (µm) Mesh Opening (µm) Open Area (%) Mesh Thickness (µm) Weight (g/m²) Tensile Breaking Strength (N/5CM) Tensile Elongation (%)
PPS 20T-140 350/51PW 140 350 51 260 86 660/643 29.5/27.8
PPS 20T-150 340/48PW 150 340 48 280 100 766/755 29.5/28.4
PPS 47T-55 156/55PW 55 156 55 100 34 246/253 26.4/30
PPS (Toray yarn) 20T-150 340/48PW 150 340 48 287 100 810/780 24/24
PPS (Toray yarn) 59T-45 125/54PW 45 125 54 80 27 210/210 17.7/17.7

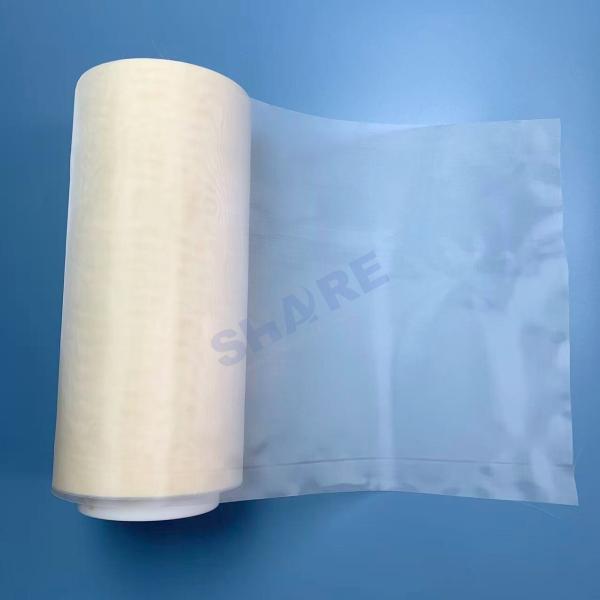

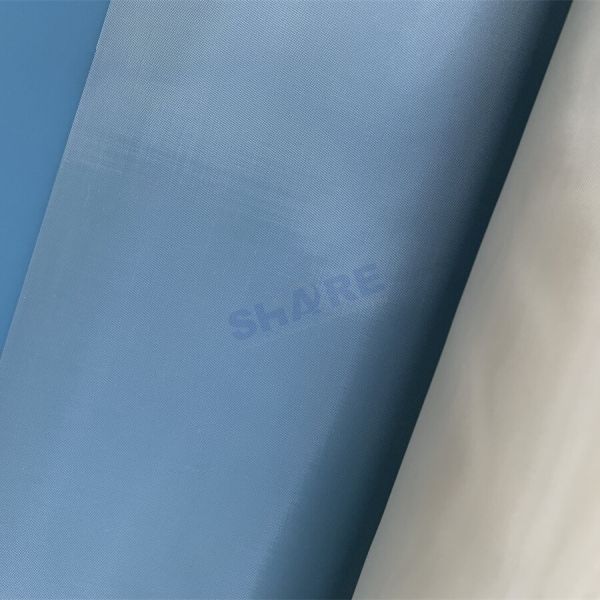

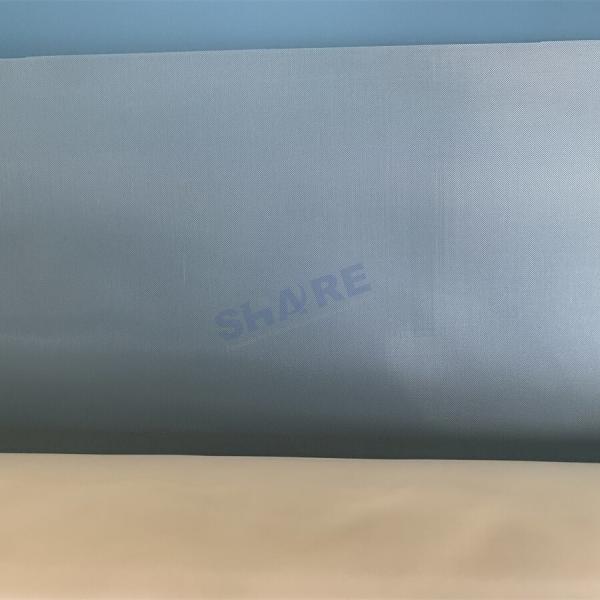

Product Images
PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical ResistantPPS Monofilament Mesh Fabric 55% Open Area Heat Chemical ResistantPPS Monofilament Mesh Fabric 55% Open Area Heat Chemical ResistantPPS Monofilament Mesh Fabric 55% Open Area Heat Chemical ResistantPPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
Packaging & Shipping
Our standard packaging includes:
  • Rolled on paper core or plastic pipe
  • Packed into PE bags
  • Placed in standard export cartons
  • Additional PP woven bag for transportation protection
Labels include: item name, manufacturer, material, dimensions, manufacturing date, order number, and batch number.
Shipping Options
Method Port to Port Door to Door
Express (DHL, UPS, FEDEX, EMS) 1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight (FCL) 15 - 30 days 20 - 35 days
Sea Freight (LCL) 15 - 30 days 22 - 37 days
Frequently Asked Questions
Where is your factory located?
We are located in Taizhou city, Zhejiang province, China. Approximately one hour from Hangzhou and two hours from Shanghai by train.
Can I get free samples?
Yes, we provide free samples for evaluation, typically delivered within 2 days.
How long does a quotation take?
We usually respond within 2 days. If any details in your RFQ need confirmation, we will notify you promptly.
What is your production lead time?
Production typically takes 5 to 15 working days after order placement, depending on quantity.
What about your quality control?
Our quality control includes operator self-inspections at every stage, spot inspections, and final QC checks using visual inspection, optical equipment, and automated 3D image-inspection systems.
What are your payment terms?
We accept T/T, LC, and other standard payment methods.
