PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
Specifications
Brand Name :
foundation innovations
Model Number :
PBT PDR4922
Place of Origin :
Schaber
MOQ :
25KG
Price :
USD2.6-3KG
Payment Terms :
T/T
Supply Ability :
500TONS
Delivery Time :
7-15
Packaging Details :
Plastic bag/Paper bag
Certification :
MSDS
Material :
PBT PDR4922
Shape :
Pellets
Process :
Injection molding
HDT Unannealed 0.45MPa 3.2mm :
216
HDT Unannealed 1.8MPa 3.2mm :
184
HDT 1.8MPa 4.0mm :
170
Density :
1.4
Flexural Strength :
79 MPa
Ingredient :
100% Virgin Material
DELIVERY TIME :
5-14 Days
Port :
ShenZhen/GuangZhou,China
Description

Products Description

PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish

PBT Schaber Foundation Innovation PDR4922 Glass Fiber Reinforced Thermal Stability High Impact High Strength Automotive Parts

VLAOX PBT PDR4922 advantages
Customizable features High mechanical, thermal and electrical properties as well as excellent chemical resistance and dimensional stability;
Excellent chemical resistance Excellent resistance to a wide range of chemicals including hydrocarbons, dilute acids and bases, cleaning agents and most aqueous salt solutions; Versatility and regulatory compliance offers a wide range of fill and unfill levels with specified UL and other agency compliance levels. Health care level meets food contact and medical regulatory norms.

product feature

PBT
PDR4922
Product information
Part Marking Code >PBT-GF<
Material Shape Pellets
Process Injection molding
FR HB
Material Attribute Glass Fiber Reinforced
specification ·UL
UL File NO. E45587
Certificate W
Physical property
Standard Value Unit
Density ASTM D792 1.4 g/cm³
Density ISO 1183 1.4 g/cm³
Shrinkage Flow 3.2mm INTERNAL METHOD 0.16 %
Shrinkage xFlow 3.2mm INTERNAL METHOD 0.94 %
Water Absorption 23℃ Saturation ISO 62 0.03 %
Water Absorption 23℃50RH ISO 62 0.03 %
Melt Index 250℃ 2.16kg ASTM D1238 13.4 g/10min
Melt Index 250℃ 2.16kg

Mechanical behavior		 ISO 1133

Standard		 12

Value		 cm³/10min

Unit
Tensile Modulus 50mm/min ASTM D638 5410 MPa
Tensile Modulus 1.0mm/min ISO 527 5230 MPa
Tensile Strength Yield 50mm/min Type I ASTM D638 85 MPa
Tensile Strength Break 50mm/min Type I ASTM D638 81 MPa
Tensile Strength Yield 50mm/min ISO 527 85 MPa
Tensile Strength Break 50mm/min ISO 527 81 MPa
Elongation Yield 50mm/min Type I ASTM D638 2.4 %
Elongation Break 50mm/min Type I ASTM D638 3.3 %
Elongation Yield 50mm/min ISO 527 3 %
Elongation Break 50mm/min ISO 527 3.6 %
Flexural Strength Yield 1.3mm/min ASTM D790 133 MPa
Flexural Strength Yield 2.0mm/min ISO 178 130 MPa
Flexural Modulus 1.3mm/min ASTM D790 4580 MPa
Flexural Modulus 2.0mm/min ISO 178 4860 MPa
Izod Notch Impact 23℃ ASTM D256 102 J/m
Izod Notch Impact -30℃ ASTM D256 58 J/m
Izod Notch Impact 23℃4.0mm Type A ISO 180 10 kJ/m²
Izod Notch Impact -30℃4.0mm Type A ISO 180 6 kJ/m²
Charpy Notch Impact 23℃ 1eA ISO 179 8 kJ/m²
Instrumented Impact 23℃ Tota Energy ASTM D3763 8 J
Thermal
Standard Value Unit
HDT Unannealed 0.45MPa 3.2mm ASTM D648 216 ℃
HDT Unannealed 1.8MPa 3.2mm ASTM D648 184 ℃
HDT 1.8MPa 4.0mm ISO 75 170 ℃
Vicat Softening Temperature 50℃/hr 50N ASTM D1525 200 ℃
Vicat Softening Temperature 50℃/hr 50N ISO 306 195 ℃
Vicat Softening Temperature 120C/hr 50N ISO 306 196 ℃
CLE Flow-40.0~40℃ ASTM E831 4.20E-5 cm/cm/℃
CLE xFlow-40.0~40℃ ASTM E831 1.14E-4 cm/cm/℃
CLE Flow -40.0~40℃ ISO11359 4.40E-5 cm/cm/℃
CLE xFlow-40.0~40℃ ISO 11359 1.18E-4 cm/cm/℃
Flammability Standard Value Unit
Flame Rating All Color 0.75mm UL94 HB
Flame Rating All Color 1.5mm UL94 HB

Application

PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish

PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

 PDR4922 PBT Raw Material UV And Weather Resistance With Surface FinishElectronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

 PDR4922 PBT Raw Material UV And Weather Resistance With Surface FinishMechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter​

PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish

PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish

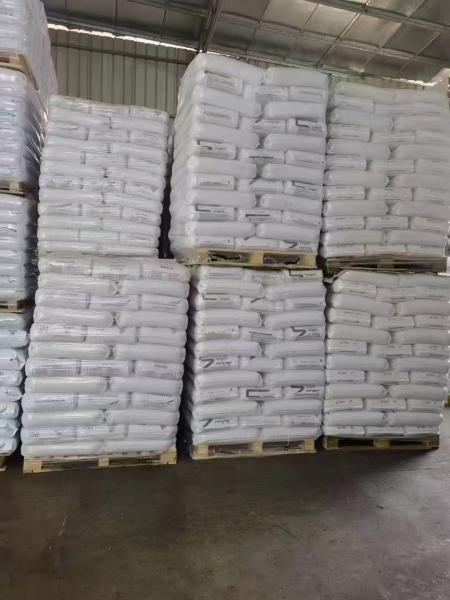

Warehouse:

PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish PDR4922 PBT Raw Material UV And Weather Resistance With Surface Finish
FAQ
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted
