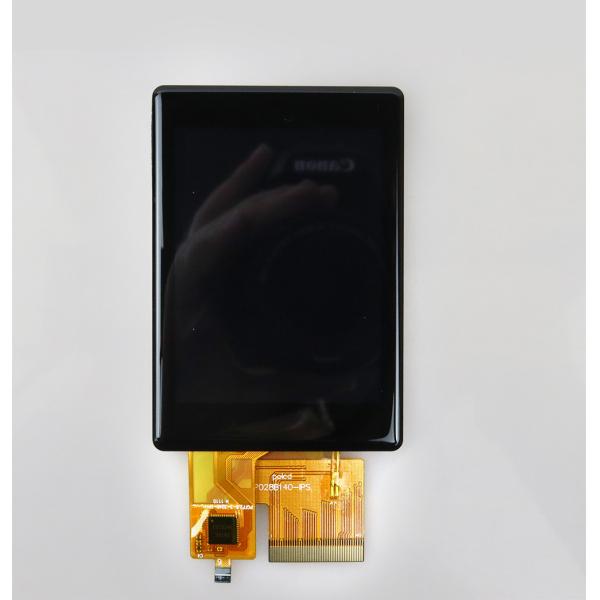

Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module
Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module
Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module
Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module
Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module
Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module
Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module
Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module
Specifications
Brand Name :
Polcd
Model Number :
P028B140-IPS-CTP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
25,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Resolution :
240x320
Interface :
3W 18Bit RGB
Driver IC :
ST7789V
Brightness (cd/m²) :
500 nit
Viewing Angle :
IPS all view angle
Display area :
43.20(H)x57.60(V)mm
Description

Description of 2.8 inch TFT LCD :

2.8 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The display has a diagonal screen size of 2.8 inch and a resolution of 240x320 pixels, providing clear and sharp images with accurate color representation.


Parameter:

ItemSpecification
ModelP028B140-IPS-CTP
Screen Size2.8 inch
Number of Pixel240RGB(H)x320(V)
Display area43.20(H)x57.60(V)mm
Pixel pitch0.180(H)x0.180(V)mm
Pins40 pins
Outline Dimension53.00x77.00x4.35mm
Pixel arrangementRGB Vertical Stripe
Display modeNormally Black
Viewing Direction(eye)ALL
Gray inversion direction--
Display Color262K
Luminance(cd/m2)500 nit
Contrast Ratio1200:1
Surface treatment--
Interface3W 18Bit RGB
Back-lightLED Side-light type
Drive ICST7789V
CTP ICCST3240
Operation Temperature-20~70℃
Storage Temperature-30~80℃
