Specifications
Brand Name :
Polcd
Model Number :
P028B140-IPS-CTP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
25,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Resolution :
240x320
Interface :
3W 18Bit RGB
Driver IC :
ST7789V
Brightness (cd/m²) :
500 nit
Viewing Angle :
IPS all view angle
Display area :
43.20(H)x57.60(V)mm
Description

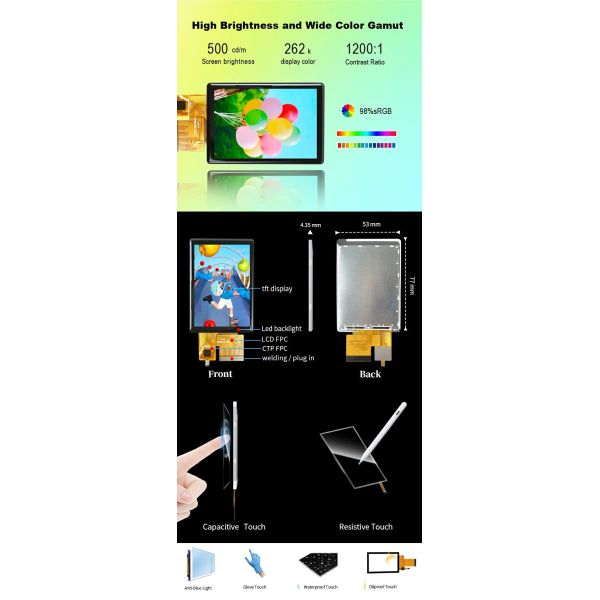

Description of 2.8 inch TFT LCD :

2.8 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The display has a diagonal screen size of 2.8 inch and a resolution of 240x320 pixels, providing clear and sharp images with accurate color representation.


Parameter:

Item Specification
Model P028B140-IPS-CTP
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.180(H)x0.180(V)mm
Pins 40 pins
Outline Dimension 53.00x77.00x4.35mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 500 nit
Contrast Ratio 1200:1
Surface treatment --
Interface 3W 18Bit RGB
Back-light LED Side-light type
Drive IC ST7789V
CTP IC CST3240
Operation Temperature -20~70℃
Storage Temperature -30~80℃
