Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module
Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module
Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module
Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module
Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module
Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module
Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module
Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module
Specifications
Brand Name :
Polcd
Model Number :
P055H020-V2-IPS-CTP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/P,D/A,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
5.5 inch
Resolution :
720*1280
Display area :
68.04(H)x120.96(V)mm
Brightness (cd/m²) :
350 nit
Interface :
MIPI
Driver IC :
ST7703
CTP IC :
GT911
Viewing Direction(eye) :
IPS Full View Angle
Description

Features:

5.5-Inch IPS Display: Enjoy vibrant colors and wide viewing angles (up to 170°) from virtually any direction. Perfect for portable devices and interactive projects.


Parameter:

Model P055H020-V2-IPS-CTP
Screen Size 5.5 inch
Number of Pixel 720RGB(H)x1280(V)
Pin 30 pin
Display area 68.04(H)x120.96(V)mm
Pixel pitch 0.0945(H)x0.0945(V)mm

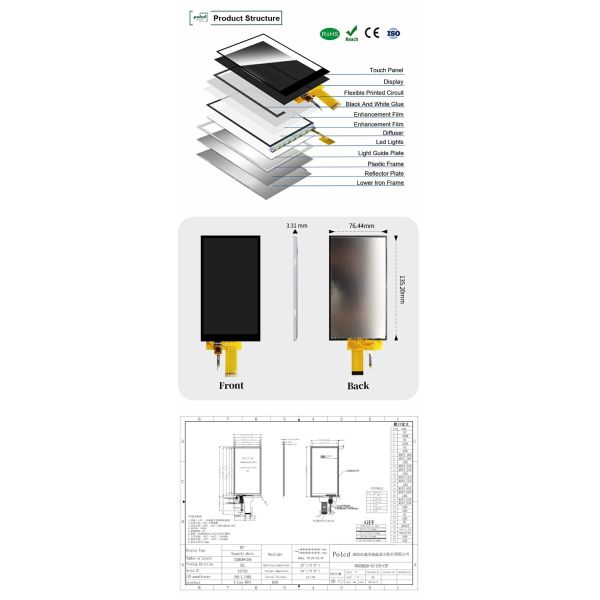

Outline Dimension 76.44x135.20x3.31mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 800:1
Interface MIPI
Back-light LED Side-light type
LCM IC ST7703
CTP IC GT911
Operation Temperature -20~70
Storage Temperature -30~80
