Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Specifications
Interface :
4wire SPI
Brand Name :
Polcd
Model Number :
P028B129-IPS-TP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Display area :
43.20(H)x57.60(V)mm
Driver IC :
ST7789V
Resolution :
240x320
Viewing Angle :
IPS all view angle
Brightness (cd/m²) :
260 nit
Description

Parameter:

Item Specification
Model P028B129-IPS-TP
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)
Pixel pitch 0.180(H)x0.180(V)mm
Pins 14 pins

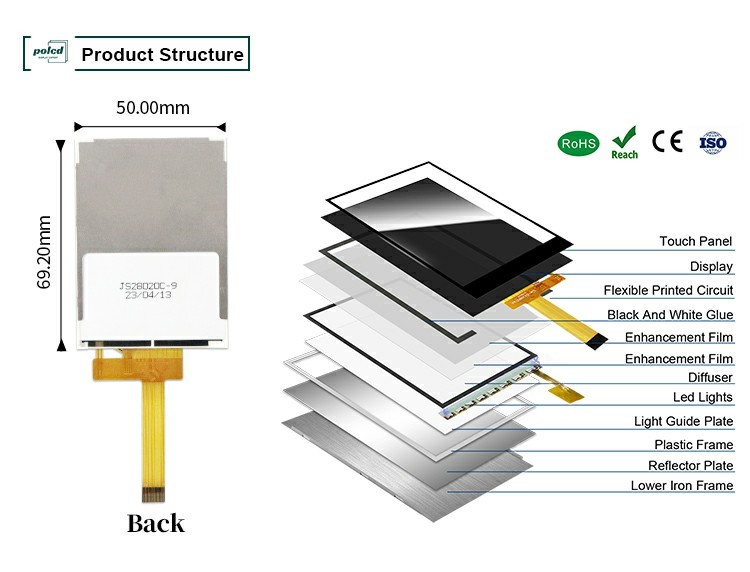

Outline Dimension 50.00x69.20x3.50mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 260 nit
Contrast Ratio 1200:1
Surface treatment --
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃


There are several medical devices that use 2.8 inch TFT LCD with RTP, including:

Handheld Patient Monitors: These devices are used for monitoring vital signs such as blood pressure, heart rate, and oxygen saturation. A 2.8 inch TFT LCD with RTP can provide a clear display of the patient's vital signs, and the touch panel can be used to input data and adjust settings.

Portable Ultrasound Machines: These devices are used for imaging internal organs and tissues. The LCD can provide a clear display of the ultrasound image, and the touch panel can be used to adjust settings and perform measurements.

Portable ECG Monitors: These devices are used for recording and analyzing the electrical activity of the heart. Lcd can display the ECG waveform and allow the user to input patient information and adjust settings.

Handheld Pulse Oximeters: These devices are used for measuring the oxygen saturation of the blood. TFT LCD can display the oxygen saturation level and pulse rate, and the touch panel can be used to input patient information and adjust settings.

Portable Blood Glucose Meters: These devices are used for measuring blood glucose levels in diabetic patients. Lcd can display the glucose level and allow the user to input patient information and adjust settings.
