Specifications
Brand Name :
Polcd
Model Number :
P028B119-IPS-CTP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/P,D/A,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1~7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Screen Size :
2.8 inch
Resolution :
480RGB(H)x640(V)
Brightness (cd/m²) :
300 nit
Interface :
RGB 24bit
Driver Ic :
ST7701S
Display area :
43.20(H)x57.60(V)
Viewing Direction(eye) :
ALL
Description

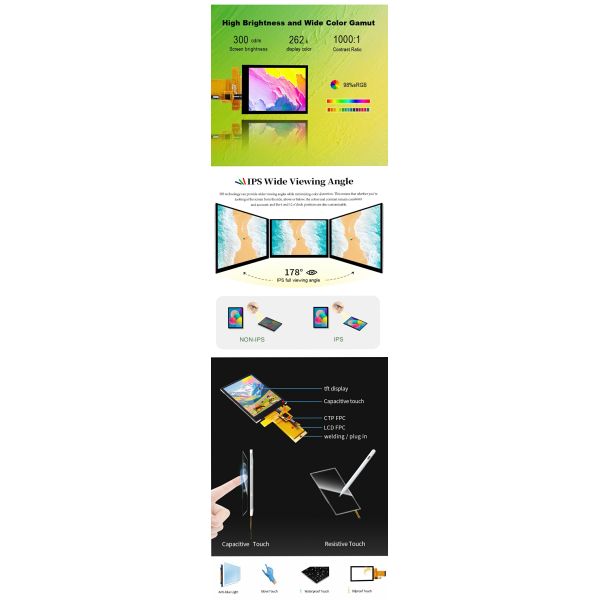

TFT Display Description:

Equipped with Full viewing angle, RGB interface, and brightness of 300 nit, this 2.8-inch TFT LCD display delivers a high-quality display suitable for various applications, especially in low-light environments.


Parameter:

Model P028B119-IPS-CTP
Screen Size 2.8 inch
Number of Pixel 480RGB(H)x640(V)
Pin 40 pin
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.09(H)x0.09(V)mm
Outline Dimension 50.00x69.20x3.20mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1000:1
Interface RGB 24bit
Back-light LED Side-light type
LCM IC ST7701S
CTP IC GT911
Operation Temperature -20~70
Storage Temperature -30~80
