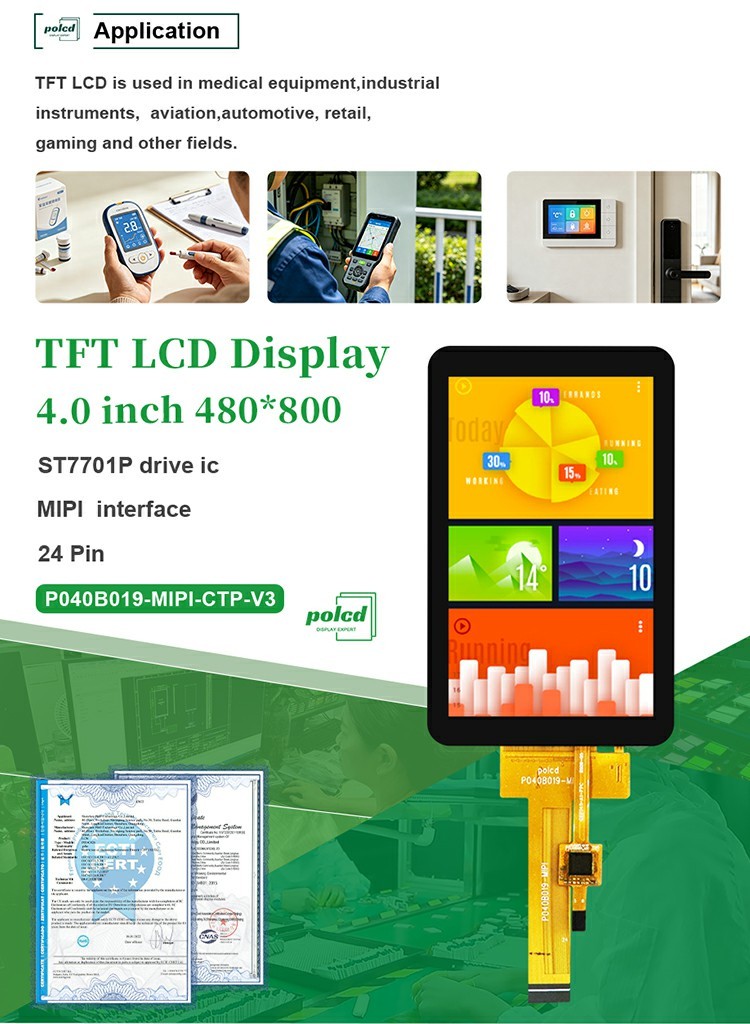

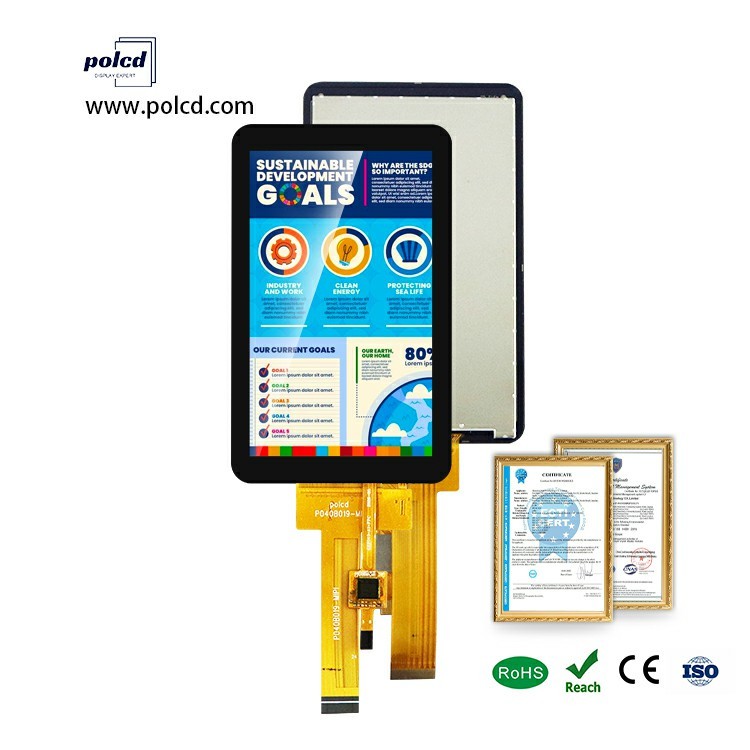

Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
Specifications
Pixel arrangement :
RGB Vertical Stripe
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P
Size (inch) :
4 inch 480x800
Brand Name :
Polcd
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Brightness (cd/m²) :
300
Model Number :
P040B019-MIPI-CTP-V3
PIN :
24 pin
MOQ :
1 piece
Delivery Time :
5-8 working days
Driver IC :
ST7701P
Place of Origin :
Shenzhen, China
Viewing Direction(eye) :
IPS Full View Angle
Price :
Please contact us for latest price
Interface :
MIPI
Certification :
RoHS, ISO9001
Display area :
61x103x3.85mm
Supply Ability :
40,000 PCS per day
Description

Parameter:

Model

P040B019-MIPI-CTP-V3

Screen Size

3.97 inch

Number of Pixel

480RGB(H)x800(V)

Display area

51.84(H)x86.4(V)mm

Pixel pitch

0.180(H)x0.180(V)mm

Pin

24 pin

Outline Dimension

61x103x3.85mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally black

Viewing Direction(eye)

ALL

Display Color

262K

Luminance(cd/m2)

300 nit

Contrast Ratio

1200:1

Interface

MIPI

Back-light

LED Side-light type

Drive IC

ST7701P

CTP IC

GT911

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃


Polcd 4 Inch 480*800 Mipi Interface IPS TFT LCD Display with GT911 Capacitive Touch Panel Module
