Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4 Mini Small TFT LCD Display
Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4 Mini Small TFT LCD Display
Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4 Mini Small TFT LCD Display
Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4 Mini Small TFT LCD Display
Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4 Mini Small TFT LCD Display
Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4 Mini Small TFT LCD Display
Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4 Mini Small TFT LCD Display
Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4 Mini Small TFT LCD Display
Specifications
Driver IC :
ST7789V
MOQ :
1 piece
Delivery Time :
1-7 working days
Contrast Ratio :
800:1
Brightness (cd/m²) :
300 nit
Place of Origin :
Shenzhen, China
Display area :
36.72(H)x48.96(V)mm
Model Number :
P024H037-IPS-CTP
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Certification :
RoHS, ISO9001
Interface :
4 Wire SPI
Brand Name :
Polcd
Resolution :
2.4 inch 240x320
Viewing Angle :
IPS all view angle
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Description

Description:

2.4 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The display has a diagonal screen size of 2.4 inches and a resolution of 240x320 pixels, providing clear and sharp images with accurate color representation.

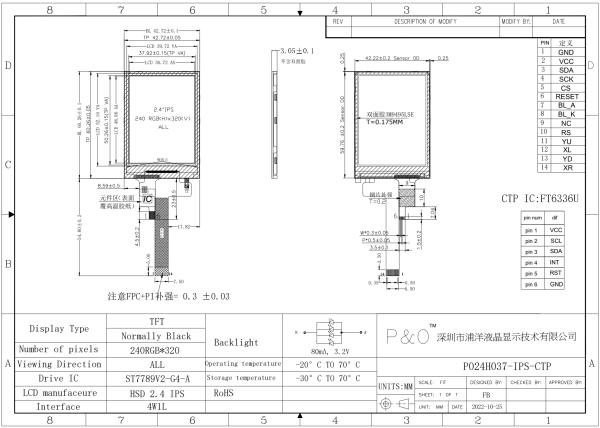

Parameter:

Model P024H037-IPS-CTP
Screen Size 2.4 inch
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 0.153(H)x0.153(V)mm
Pins 14 Pins
Outline Dimension 42.72x60.26x3.05mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 800:1
Surface treatment --
Interface 4Line SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃


Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4Polcd 2.4 inch Touch Panel 240x320 IPS Tech Capacitive Touch Screen 2.4
