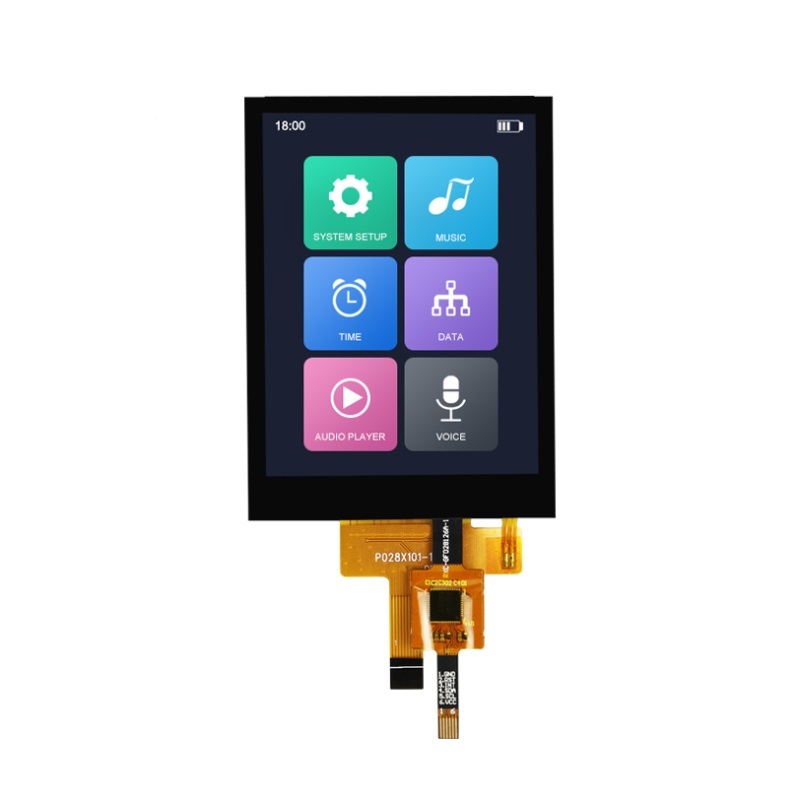

Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8 LCD Module
Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8 LCD Module
Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8 LCD Module
Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8 LCD Module
Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8 LCD Module
Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8 LCD Module
Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8 LCD Module
Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8 LCD Module
Specifications
MOQ :
1 piece
Delivery Time :
1-7 working days
PIN :
10 pin
Price :
Please contact us for latest price
Brightness :
300 cd/m²
Interface :
4 Wire SPI
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Model Number :
P028X101-10-CTP
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P
Resolution :
240x320
Driver Ic :
ST7789V
Supply Ability :
40,000 PCS per day
Size :
2.8 inch
Brand Name :
Polcd
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
Description

Description:

The 2.8 inch TFT LCD with capacitive touch is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and accurate touch input. It is commonly used in various applications where a small, high-quality display with touch input is required, such as handheld devices, industrial equipment, and automotive displays.

Parameter:

Model

P028X101-10-CTP

Screen Size

2.8 inch

Number of Pixel

240RGB(H)x320(V)

Display area

43.20(H)x57.60(V)mm

Pixel pitch

0.06(H)x0.18(V)mm

Pins

10 Pin

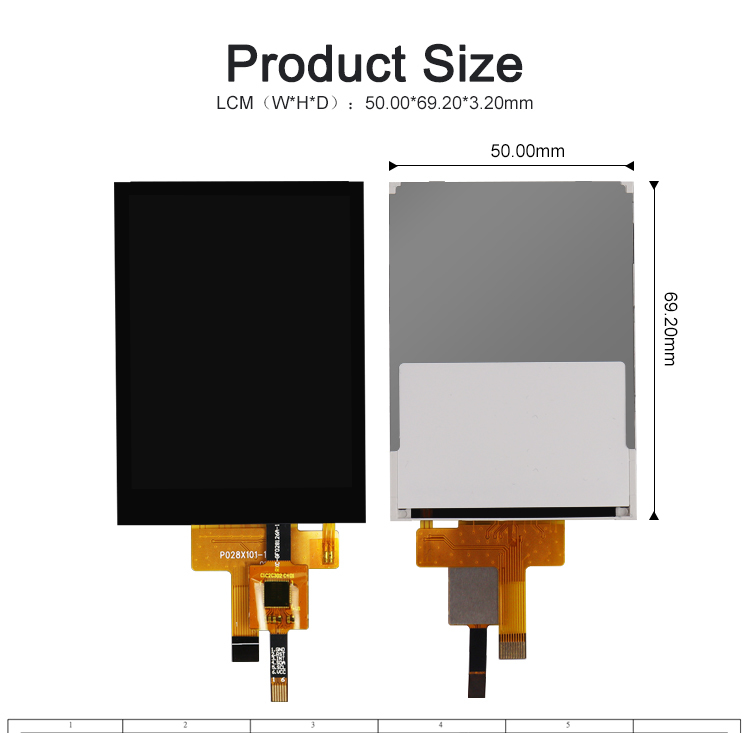

Outline Dimension

50.00x69.20x3.20mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262K

Luminance(cd/m2)

300 nit

Contrast Ratio

500:1

Interface

4wire SPI

Back-light

LED Side-light type

Drive IC

ST7789V

Operation Temperature

-20~70 ℃

Storage Temperature

-30~80 ℃


Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8
