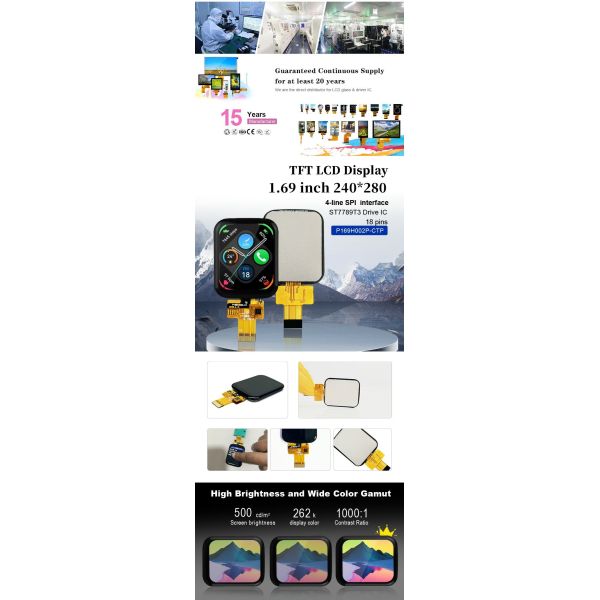

Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd
Specifications
Brand Name :
Polcd
Model Number :
P169H002-CTP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability :
25,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
1.69
Resolution :
240*280
Brightness (cd/m²) :
300
Interface :
4 Line SPI
Driver Ic :
ST7789V
Contrast Ratio :
1000:1
Description

New published LCD Touch Panel for commercial and industrial use. Screen size is 1.69 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 240 * 280 resolution product. 300 nits allow this lcd to work well indoors.

P/N P169H002-CTP
Size(inch) 1.69
Resolution 240*280
Active Area(mm) 27.97*32.63
Pixel pitch(um) 116.55*116.55
Outline Dimension(mm) 33.13*41.13*3.61
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Brightness
(cd/m²)		 300
Contrast Ratio 1000:1
Interface 4 Line SPI
Back-light LED Side-light type
Driver Ic ST7789V
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 35
Pin Number 18

The Interface of this LCD is 4 Line SPI . We can also customize other types of interfaces and FPCs for you. ST7789V is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
