Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Specifications
Brand Name :
Polcd
Model Number :
P035C018-TP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
3.5
Resolution :
320*480
Brightness (cd/m²) :
300
Interface :
MCU 8/16bit RGB 18bit SPI 3/4wire
Driver Ic :
ILI9488
Contrast Ratio :
500:1
Description

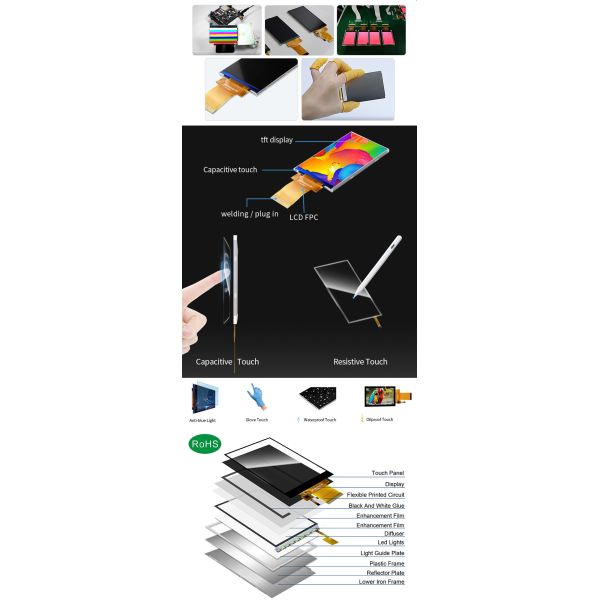

This TFT Touch Screen is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 3.5 inch then our lcd is just what you need. Improve your product design by adding our 320 * 480 resolution product. QC department measured the luminance is 250 nits under normal operating.


Parameter:

Model

P035C018-TP

Screen Size

3.5 inch

Number of Pixel

320RGB(H)x480(V)

Display area

48.96(H)x73.44(V)mm

Pixel pitch

0.153(H)x0.153(V)mm

Pin

50 pin

Outline Dimension

54.48x84.71x2.25mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262k

Luminance(cd/m2)

300 nit

Contrast Ratio

500:1

Interface

MCU 8/16bit RGB 18bit SPI 3/4wire

Back-light

LED Side-light type

Drive IC

ILI9488

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃


Product advantages

This 3.5-inch TFT LCD display, with MCU, RGB, and SPI interface, features a 12 o'clock viewing angle and is suitable for various applications. Its advantages include high-resolution display, vivid colors, fast display speed, quick response, and low power consumption, making it easy to control and integrate. Additionally, the display supports multiple display modes and image formats, providing wide compatibility and reliability. It is a compact and efficient display solution suitable for various fields such as consumer electronics, medical, industrial control, communication, and security.

Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480

Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
