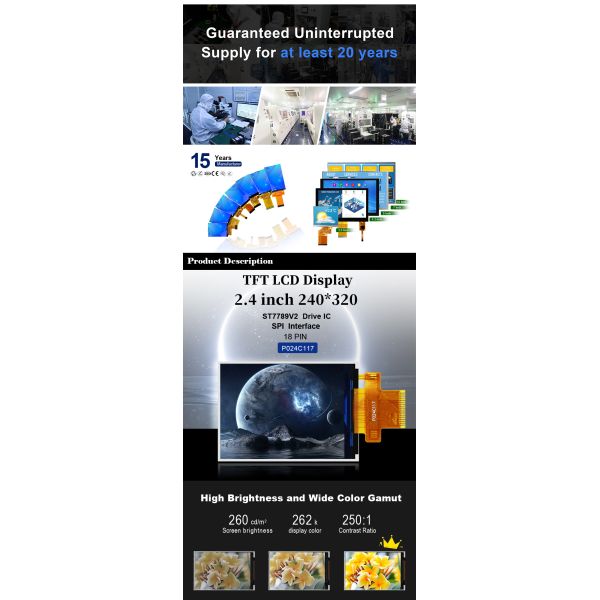

Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD
Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD
Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD
Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD
Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD
Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD
Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD
Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD
Specifications
Brand Name :
Polcd
Model Number :
P024C117
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
2.4
Resolution :
240*320
Brightness (cd/m²) :
260
Interface :
4 Wire SPI
Driver Ic :
ST7789V2
Description

New published Industrial Touch Screen for commercial and industrial use. Our TFT LCD has a 2.4 inch diagonally. The resolution of our tft lcd is 240 * 320. The normal brightness is 260 nits under the test of laboratory. The Interface of this LCD is 4 Wire SPI. We can also customize other types of interfaces and FPCs for you. The ST7789V2 driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.


Parameter:

Model

P024C117

Screen Size

2.4 inch

Number of Pixel

240RGB(H)x320(V)

Display area

36.72(H)x48.96(V)mm

Pixel pitch

51(H)x153(V)um

Pins

18 pins

Outline Dimension

42.72x60.26x2.30mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262K

Luminance(cd/m2)

260 nit

Contrast Ratio

250:1

Interface

4W SPI

Back-light

LED Side-light type

Drive IC

ST7789V3

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃

Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm TFT LCD

FAQ

Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
