Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen
Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen
Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen
Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen
Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen
Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen
Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen
Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen
Specifications
Brand Name :
Polcd
Model Number :
P024C115
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
2.4
Resolution :
240*320
Brightness (cd/m²) :
260
Interface :
4 Wire SPI
Driver Ic :
ST7789V3
Description

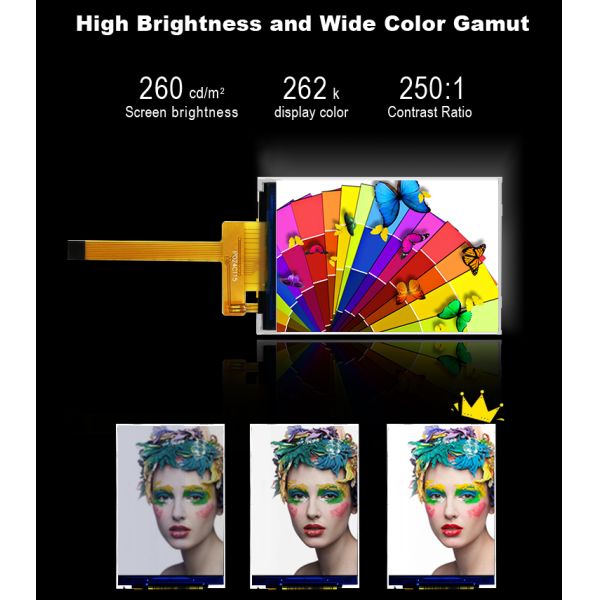

New published HD TFT Display for commercial and industrial use. Our TFT LCD has a 2.4 inch diagonally. The resolution of our tft lcd is 240 * 320. The normal brightness is 260 nits under the test of laboratory. The Interface of this LCD is 4 Wire SPI. We can also customize other types of interfaces and FPCs for you. The ST7789V3 driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.


Parameter:

Model P024C115
Screen Size 2.4 inch diagonal
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 51(H)x153(V)um
Pins 10 Pins
Outline Dimension 42.72x60.26x3.20mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 12 0'CLOCK
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 260 nit
Contrast Ratio 250:1
Surface treatment ――
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V3
Operation Temperature -20~70℃
Storage Temperature -30~80℃


Polcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft ScreenPolcd RoHS 2.4 Inch Lcd Tft Display ST7789V3 TFT LCD Module 4 Wire SPI 240x320 Tft Screen

FAQ

Q: Can we customize product? What cost will be included?

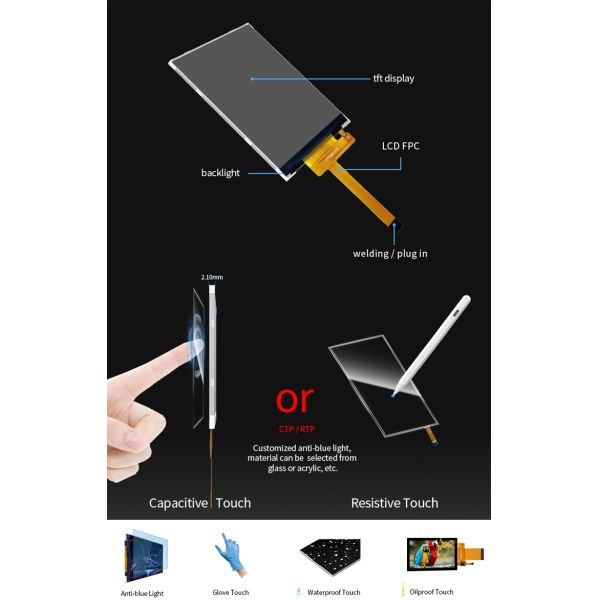

A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
