Specifications
Brand Name :
Polcd
Model Number :
P021B001-IPS
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability :
25,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Resolution :
2.1 inch 480x480
Interface :
2Line MIPI
Driver IC :
ST7701S
Brightness (cd/m²) :
300 nit
Viewing Angle :
IPS all view angle
Display area :
53.28(H)x53.28(V)mm
Description

Introduction:

The 2.1-inch circular LCD (Liquid Crystal Display) is an innovative and compact display module that offers a versatile solution for various electronic applications. With its small form factor and excellent visual performance, this circular LCD is becoming increasingly popular in today's technology-driven world.

Application:

This LCD module finds applications in various industries, including smartwatches, fitness trackers, portable medical devices, electronic instruments, and smart home systems. Its small size and adaptability make it suitable for a wide range of products.

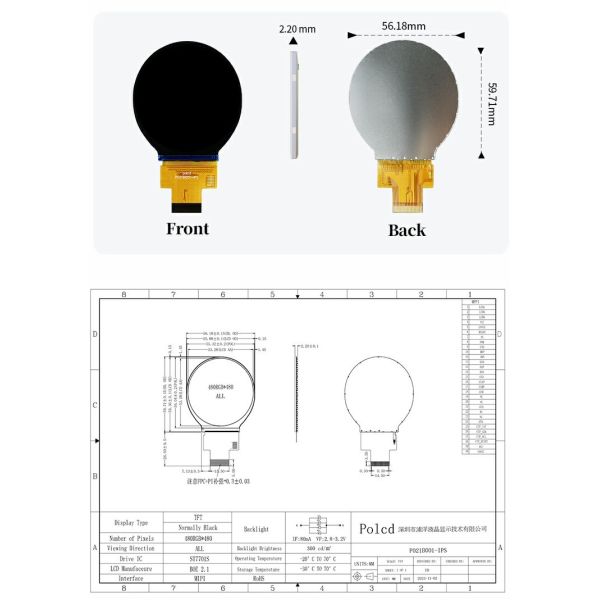

Parameter:

Model P021B001-IPS
Screen Size 2.1 inch
Number of Pixel 480RGB(H)x480(V)
Display area 53.28(H)x53.28(V)mm
Pixel pitch 111(H)x111(V)um
Pin 30 pins
Outline Dimension 56.18x59.71x2.2mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262k
Luminance(cd/m2) 300 nit
Contrast Ratio 1000:1
Interface 2Line MIPI
Back-light LED Side-light type
Drive IC ST7701S
Operation Temperature -20~70℃
Storage Temperature -30~80℃

Polcd 2.1 inch IPS Small Round LCD 480*480 Mipi interface ST7701S Circle Circular TFT Display ModulePolcd 2.1 inch IPS Small Round LCD 480*480 Mipi interface ST7701S Circle Circular TFT Display Module
