4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector
Specifications
Brand Name :
UPE
Model Number :
RM-1049-A04-31 / RM-1049-B04-41
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE
Name :
Magnetic Connectors
Material :
THN, Brass C3604, SUS304, NdFeB N52
Spring force :
70g±20g,at 1.0mm working stroke
Volatge :
12V
Current :
2A
Mechanical life :
5000 cycle Min.
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Description

2.54mm Pitch 4 Pin Male & Female Magnetic Pogo Pin Connector

4pin horizontal pogo pin magnetic power connectors for smart wear, 4pin 2.54 space smart watch magnetic charging connector,UPE focus on high current magnetic connector and magnetic cable pogo pin connector

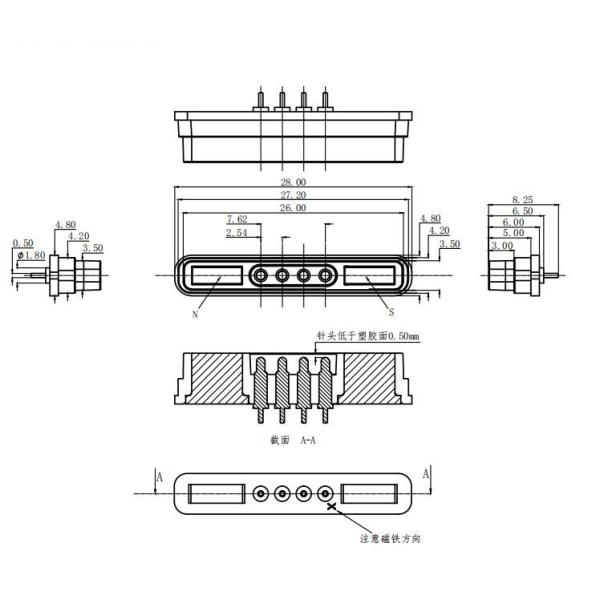

4pin male magnetic connector spec:

4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector

4pin female magnetic connector spec:

4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector

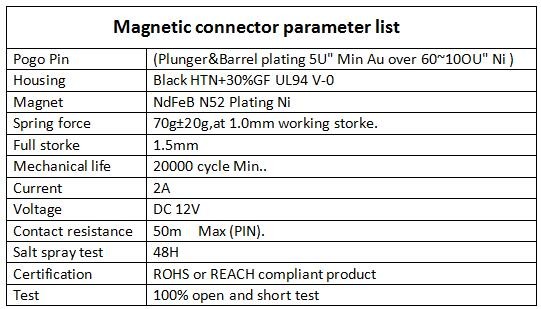

Magnetic connector parameter list:

4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

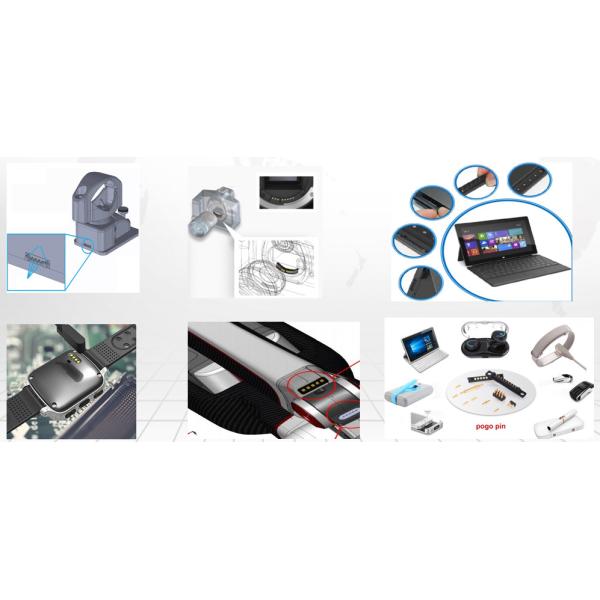

Magnetic connector application:

4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards


Any question, please send to union@upetech.net
