40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products
Specifications
Brand Name :
UPE
Model Number :
LBC0545A / LBC0545B
Certification :
ISO9001
Place of Origin :
China
MOQ :
5000
Price :
$5-$7
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
10-15 working days
Packaging Details :
PE
Name :
Spring Loaded Connector
Pitch :
2.54mm
Pin number :
40Pin
Type :
SMT
Material :
HTN,Brass C3604,SUS304
Spring force :
100g±20g,at working storke.
Working storke :
1.5mm
Full storke :
1.8mm
Current :
1.0A
Volatge :
12V
Description

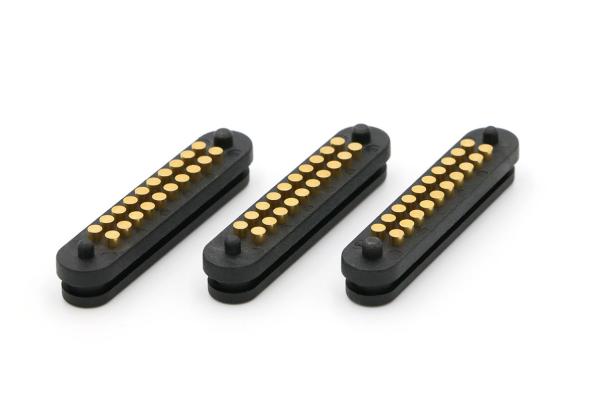

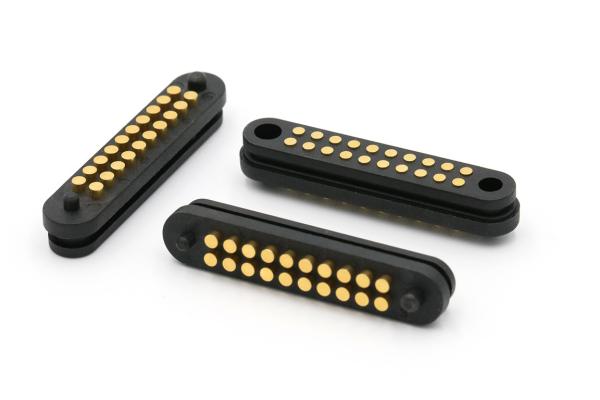

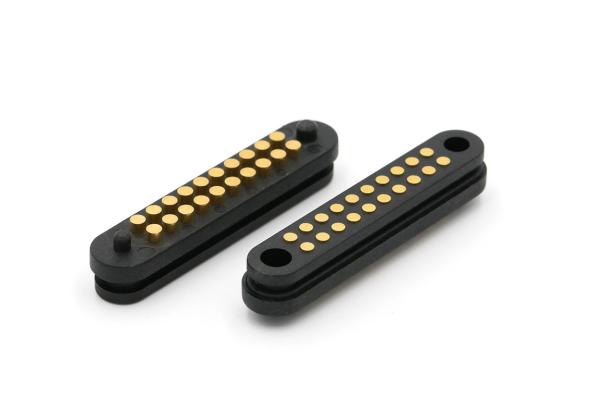

2.54mm Pitch Male & Female 40pin Pogo Pin Connector For Medical Products

Double row 2x20pins through-hole type spring loaded connector pogo pin connector for medical products, brass C3604 HTN black housing male spring connector female pin connector.UPE provide professional POGO PIN CONNECTOR customization service

Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap

40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products

Some of customized Pogo Pin Connectors for reference:

40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products

Product application field:

40 Pin Spring Loaded Connector 2.54mm Pitch Pogo Pin Connector 1.0A For Medical Products

Our Advantage and your choice:

UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.

UPE developed 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.

Pogo Pin Life test up to 1000,000 cycles.

All products can pass HF, RoHS REACH standard.

100% electrical test provided report before delivery the goods.

Custom of various shapes is available, small structure and high current.

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures
