2.2MM Pitch 4Pin Magnetic Connector 3A Male and Female DC Power Charger Terminal.

UPE – Professional Magnetic Connector & Cable Manufacturer | Custom Solutions

UPE is a trusted leader in designing and manufacturing high-performance magnetic connectors and magnetic cable connectors, delivering innovative, reliable, and customizable connectivity solutions for a wide range of industries.

To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.

Materials:
-Housing: Black HTN UL94V-0

-Pogo Pin: Brass C6801 Plating Au 0.125um
-Female pin: Brass C6801 Plating Au 0.125um
-Magnet: N52 NdFeB Plating Ni Cu Ni

Mechanical:

-Contact force:80g±20g at 1.0mm working storke

-Full storke: 1.1mm

-Male and female adsorption Life test: 10,000cycle

Electrical:

-Rated voltage:DC12V; Rated voltage: 3AMax.

-Contact resistance of spring pin: 50 milliohm Max.

Environmental performance:

-Operation Temperature: -25℃ to +80℃

-Environmental Test: Salt Spray 24 hours

4Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:

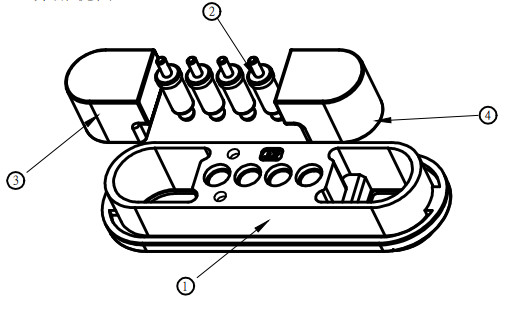

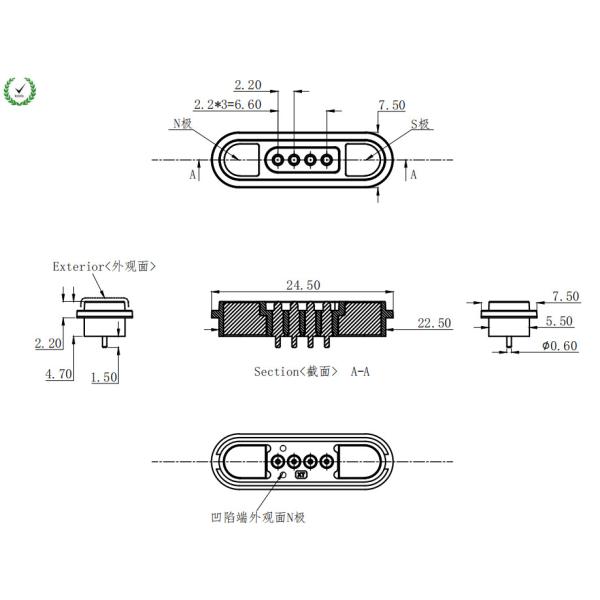

4Pin Male Magnetic Connector Technical Drawing

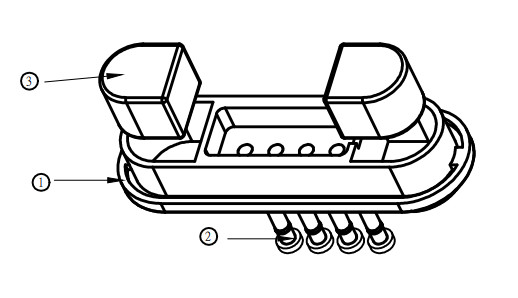

4Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.

2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).

3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.

4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.

Magnetic connector products application:

Why UPE shall be your partner?

✔ Premium Quality – Durable, high-efficiency magnetic connectors for secure connections.
✔ Custom Solutions – Tailored designs to meet specific application requirements.
✔ Innovative Technology – Advanced magnetic coupling for easy, safe, and quick connections.
✔ Wide Applications – Ideal for consumer electronics, medical devices, industrial equipment, and more.
✔ Reliable Performance – Engineered for longevity and consistent connectivity.
