2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector
2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector
2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector
2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector
2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector
2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector
Specifications
Brand Name :
UPE
Model Number :
4P-2.54PH-4.0H
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE bags
Name :
Magnetic Connectors
Material :
PA46/PA9T, Brass C3604, SUS304, NdFeB N52
Volatge :
12V
Current :
2A
Mechanical life :
10000 cycle Min.
Force :
35±10gf at working height
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Withstanding Higt Tenperature :
260°C
Operational Temperature :
-40~85°C
Color :
Black, yellow
Description
2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector
2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector with PA46/PA9T housing. Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components.
As a leading company in China's connector industry, we focus on delivering competitive solutions, including pogo pin connectors, magnetic connectors and industrial waterproof connectors.

Our products are widely used in various industries, such as:

Telecommunications,Medical Devices,Aerospace&Aviation,Automotive,Wireless Equipment,

Wearable Technology,Industrial Testing Equipment (e.g., smartphones, TVs, tablets, gaming consoles, learning devices, etc.)

Computer Peripherals With a strong global presence, our products are primarily exported to Europe,

the United States, Canada, and developed regions across Asia.

UPE is equipped with advanced technology and modern production techniques. We are ISO9001 and ISO14001 certified, ensuring that all our products comply with the EU RoHS environmental standards. To guarantee superior quality, we source key raw materials from Taiwan and Japan. With years of production expertise, a streamlined management system, and a team of skilled, experienced professionals, we deliver high-performance electronic components at competitive prices.
Materials & Construction
  • Material: Plunger: Brass C3604 | Barrel: Brass C3604 | Spring: SUS304 | Housing: PA46/PA9T
  • Magnet: Material: Rubidium iron boron | Performance: N52 | Salt spray: 24H | Pole: S (South Pole) - N (North Pole)
  • Plating: Plunger: 1-3μ"Au over 50μ"Ni | Barrel: 1-3μ"Au over 50μ"Ni
  • Electrical: Rated Current & Voltage: DC12V; 2A | Contact Resistance: 50 mΩ Max. at working height
  • Temperature: Withstanding High Temperature: 260°C | Operational Temperature: -40~85°C
  • Mechanical: Force: 35±10gf at working height | Durability: 10000 cycles (min)
  • 48 hours delay test
  • Products that comply with the RoHS standard
  • The electroplating film thickness test standard: The film thickness measurement is based on a deviation of 1.0mm from the riveting point between the needle head and the needle tube
4-Pin Magnetic Connector Specifications
Parameter Specification
Pin Count 4-pin or customized
Pitch 2.54mm
Type DIP
Pogo Pin Material Brass
Housing Material PA46/PA9T
Magnet Material Neodymium iron boron
Magnet Grade N52 (As requirement)
Mechanical Life 10000 cycle Min.
Current 2.0A
Voltage DC 12V
Contact Resistance 50mΩ Max (PIN)
Salt Spray Test 48H
Withstanding High Temperature 260°C
Operational Temperature 40~85°C
Certification ROHS or REACH compliant product
Testing 100% open and short test
Product Images
4-Pin Male Magnetic Connector:

2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector

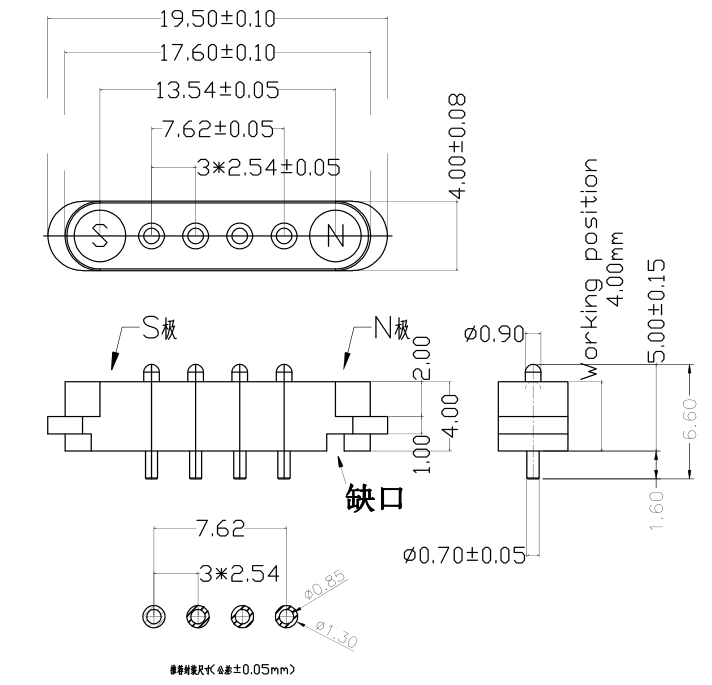

4-Pin Female Magnetic Connector:

2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector

UPE Company Competitive Advantages
High-Technology Production: Utilizes advanced manufacturing techniques for superior product quality
Systematic Management System: Streamlined processes ensure efficiency and consistency in production
ISO 9001 Certification: Demonstrates commitment to international quality management standards
RoHS Compliance: All products meet Restriction of Hazardous Substances regulations
Short Development Lead Time: Faster prototyping and production cycles
Competitive Pricing & Stable Quality: Cost-effective solutions without compromising reliability
Product Advantages
Humanized design with automatic adsorption connection experience
Anti-fall protection: Easy to remove from charging interface without device damage
Extended lifespan: Up to 100,000-200,000 cycles
Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
Fast charging capability: 5A-10A design for large current transmission
Customizable appearance to match customer application device design
Anti-short circuit structure design with foolproof protection
High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions
Why Customers Choose Us
  • Professional customization service
  • Fast sample production capability
  • Strict quality control system
  • Processing with imported components
  • High-precision test equipment
  • Reasonable cost control procedures
  • Product environmental standards
Application

2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector

Ordering & Shipping Information

Payment Methods: T/T, PayPal, OCBC

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Packaging & Shipping:

2.54mm pitch 4pin rectangle magnetic type Pogo pin docking connector
