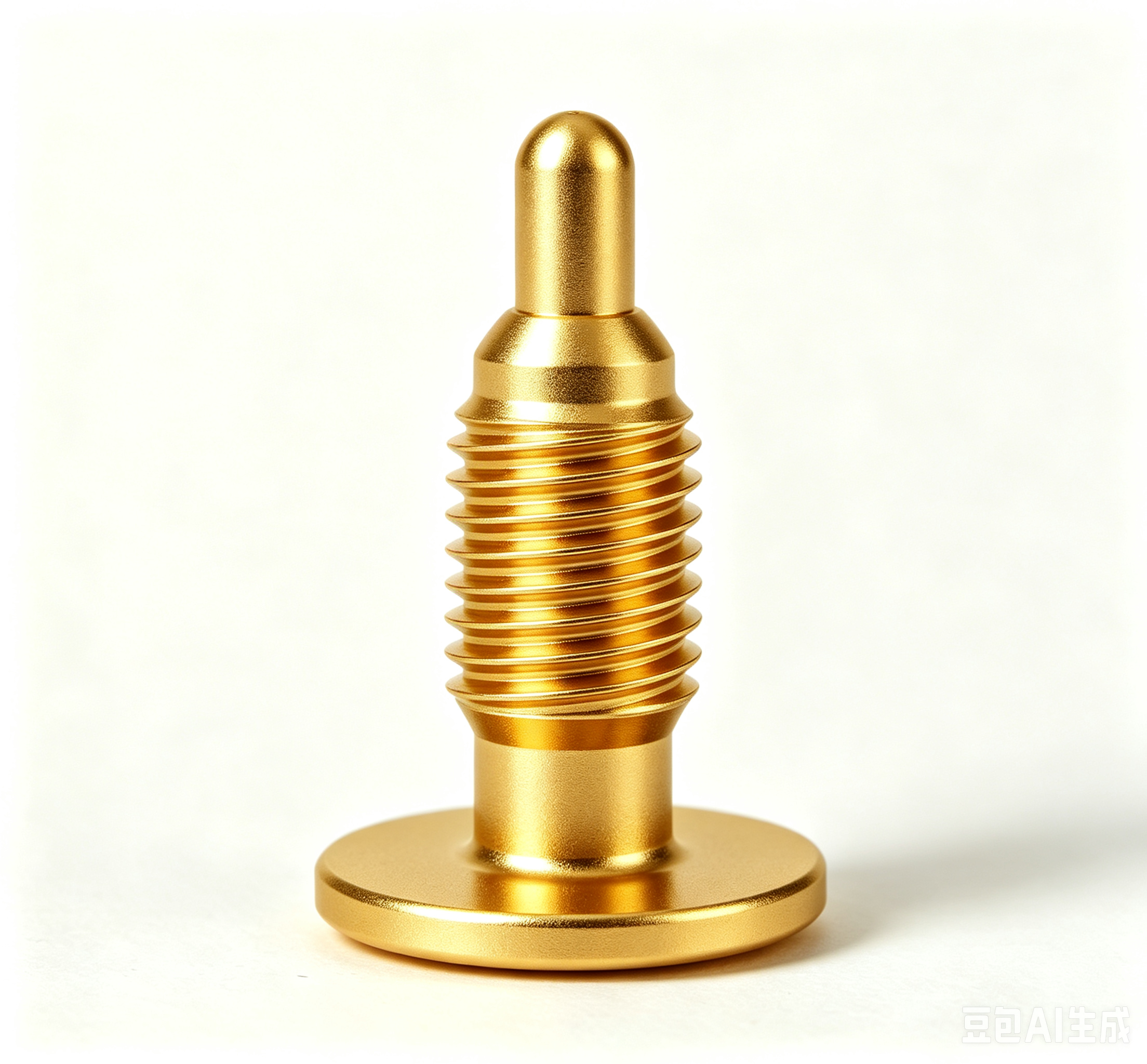

Screw type gold plating spring pogo pin
Screw type gold plating spring pogo pin
Specifications
MOQ :
10000
Delivery Time :
10-12 working days
Salt spray test :
48 H
Price :
$0.1-$0.5
Color :
yellow
Model Number :
Double Head Pogo Pin
Material :
Brass C3604, SUS304
Payment Terms :
T/T
Supply Ability :
50KPCS/Day
Packaging Details :
PE bags
Brand Name :
UPE
Name :
Screw type Pogo Pin
Certification :
ISO9001
Contact resistance :
50mΩ Max at working height
Place of Origin :
China
Operating Temperature :
-40℃~+130℃ within 24 hours.
Description
Screw Type Gold Plating Spring Pogo Pin
Professional POGO PIN customization service with various shapes and small structures available. Customized high current solutions from 15A to 30A. Different products and pogo pin solutions designed according to customer requirements.
What is a Pogo Pin?
A Pogo Pin is an electrical connector used to establish temporary connections between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing compression and maintaining reliable contact when pressed against conductive surfaces.
Technical Specifications
ParameterSpecification
NameScrew type pogo pin
PlungerBrass C3604
BarrelBrass C3604
SpringSUS304
Mechanical life50,000 cycles Min.
Contact resistance50mΩ Max (PIN)
Operating Temperature-40℃~+130℃ within 24 hours
Resistance to Soldering Heat260℃±5℃ 20s±2s
Salt spray test48H
CertificationROHS or REACH compliant
Test100% open and short test
Available Structure Types
Standard POGO PIN total height: 2.8mm ~ 11.0mm (excluding DIP pogo pin's tail length)
Screw type gold plating spring pogo pin
  • SMT: Good stability with flat bottom design for easy PCB board soldering
  • DIP: Positioning pin prevents deviation during PCB welding
  • Double Head: Flexible bi-directional board-to-board connection without welding
  • Right Angle: Bent tail for space optimization, can be soldered with wire
  • Solder Cup: Suitable for cable products, easy wire welding
  • Screw-type: Special specifications to meet diverse customer needs
  • One-piece type: High current capacity with custom requirements
  • Spherical ball type: Lateral force capability with custom options
Internal Structure Options
Structure A: Plunger with Oblique Bevel
Screw type gold plating spring pogo pin
Advantages: Conventional use, stable impedance, long life
Application: SMT & DIP Regular use
Structure B: Plunger with Drilled Design
Screw type gold plating spring pogo pin
Advantages: Maximum compression in limited space
Application: SMT & DIP Regular use
Structure C: Plunger with Flat Design
Screw type gold plating spring pogo pin
Advantages: Easy machining for space-constrained structures
Application: SMT & DIP Regular use
Structure D: Barrel with Insulating Beads
Screw type gold plating spring pogo pin
Advantages: Stable impedance, suitable for currents above 10A
Application: SMT & DIP Regular use
Structure E: Double-Sided Compression
Screw type gold plating spring pogo pin
Advantages: Space saving, long distance, large compression board contact
Application: Board-to-board docking
Structure F: Four-Piece Combination
Screw type gold plating spring pogo pin
Advantages: High press smoothness, small plunger deflection, waterproof, dustproof, extended life
Application: High current, high performance, waterproof and dustproof applications
Structure G: Intermediate Shaft Compression
Screw type gold plating spring pogo pin
Advantages: Simple structure, high current capacity
Application: Welding high current use
Structure H: Ball Compression Contact
Screw type gold plating spring pogo pin
Advantages: Simple structure, easy processing
Application: Small working stroke applications
Product Applications
  • PCB boards
  • Digital cameras / Medical products / Printer cartridges
  • Golf handles / Electric vehicles / Telephony applications
  • Cardiac defibrillators / Car charging / Air purifiers
  • LED flat luminaries / LED flash lights / Tablets / Laptops / PCs
  • Power banks / Digital products / Small household electrical applications
  • Charging products / Signal transmission products
Why Choose UPE?
  • Customization & Flexibility: Tailored solutions for specific requirements
  • Fast Samples: Faster time-to-market with quick prototyping
  • Rigorous Quality Checks: Comprehensive testing throughout production
  • Customer-Focused QC Flexibility: Adaptable quality control processes
  • Real-Time QC Collaboration: Continuous quality monitoring and feedback
Performance Parameters
ComponentMaterial Options
Barrel MaterialBrass, Beryllium copper, Phosphor Bronze
Plunger MaterialBrass, Beryllium copper, Phosphor Bronze, Stainless steel
Spring OptionsStainless steel, Music wire
Plating RequirementsGold-Au, Silver-Ag, Palladium-Nickel (Pd-Ni)
Rated Current1A, 2A, 3A, 5A, 15A or 30A (different structures)
Rated VoltageDC 12V, 24V
Contact Resistance30mΩ, 50mΩ Max. (stillness)
Life Test50,000 cycles Min., 1,000,000 cycles Max
Reflow Temperature265°, 4~5 seconds
Reliability Testing
Test TypeSpecification
Retention Force50,000 cycles minimum at 500±50 cycles per hour
Humidity90-95% RH at 40℃±2℃ for 96 hours
Resistance to Solder Heat265℃+10/-0℃ for 30-35 seconds
Salt Spray5±1% salt solution at 35+1℃/-2℃ for 48 hours
Spring Force Test100g±20g at working height
Temperature Life85℃±2℃ for 96 hours
Solderability265±5℃, 60/40±5% Sn/pb solder for 4.0-5.0 seconds
Contact ResistanceTest current: 100 mA max, Voltage: 20 mV max
Testing Equipment
Independent laboratory equipped with comprehensive testing equipment including:
  • Insertion force testing machine
  • Two-dimensional projector
  • Thickness meter
  • Automatic inspection machine
  • Insulation Resistance Tester
  • Metallographic sample polishing machine
  • Salt spray tester
  • Current temperature rise tester
  • Load stroke curve instrument
  • ROHS tester
  • Roughness tester
  • Elastic impedance tester
  • Life tester
Competitive Advantages
  • High-Technology Production: Advanced manufacturing techniques for superior quality
  • Systematic Management System: Streamlined processes for efficiency and consistency
  • ISO 9001 Certification: Commitment to international quality standards
  • RoHS Compliance: Meets environmental and safety regulations
  • Short Development Lead Time: Faster prototyping and production cycles
  • Competitive Pricing & Stable Quality: Cost-effective solutions without compromising reliability
Ordering Information
Payment Methods
  • T/T (Bank Transfer)
  • PayPal
  • OCBC Bank
Recommendation: PayPal for samples (safer), T/T for bulk orders (lower fees)
Lead Times
  • Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
  • Production Lead Time: 10-15 working days
Trade Terms
  • Markets: America, Europe, Asia, South Africa
  • Trade Term: EXW
  • Freight: Air, Sea, Express
  • Service: High quality with reasonable price, OEM service, custom sizes, colors, and designs available
Packaging & Shipping
Screw type gold plating spring pogo pin
