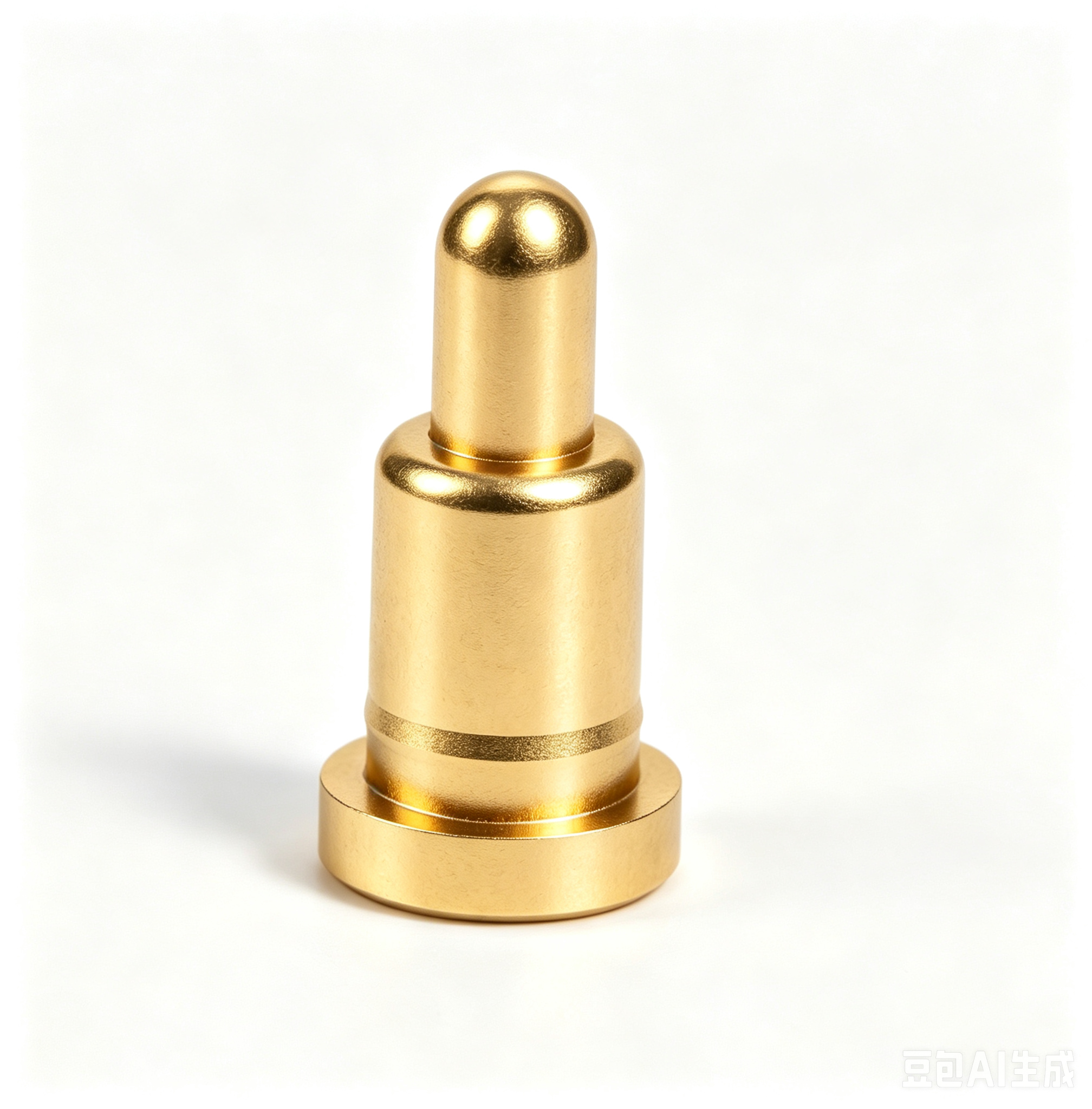

Spring loaded smt contacts pogo pin
Spring loaded smt contacts pogo pin
Specifications
MOQ :
10000
Delivery Time :
10-12 working days
Mechanical life :
50000 cycle Min..
Price :
$0.1-$0.5
Contact resistance :
50mΩ Max at working height
Packaging Details :
PE bags
Model Number :
SMT Spring-Loaded Pogo Pin
Material :
Brass C3604, SUS304
Payment Terms :
T/T
Operating Temperature :
-40℃~+130℃ within 24 hours.
Supply Ability :
50KPCS/Day
Salt spray test :
48 H
Brand Name :
UPE
Name :
SMT Spring-Loaded Pogo Pin
Certification :
ISO9001
Current :
3A
Place of Origin :
China
Voltage :
12V
Description
Spring Loaded SMT Contacts Pogo Pin
UPE provides professional POGO PIN customization services, offering various shapes and small structures. We customize high-current pogo pins ranging from 15A to 30A. Different products and pogo pin solutions can be designed according to specific customer requirements.
A Pogo Pin is an electrical connector used to establish temporary connections between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing compression and maintaining reliable contact when pressed against conductive surfaces.
Pogo Pin Exterior Structures
We offer 8 types of exterior structure POGO PINs for customer selection. Standard POGO PINs are designed with total heights ranging from 2.8mm to 11.0mm (excluding DIP pogo pin tail length).
Spring loaded smt contacts pogo pin
SMT Structure
Good stability with flat bottom barrel design for easy PCB board soldering.
DIP Structure
Features positioning pin at barrel tail for accurate PCB welding without deviation.
Double Head Structure
Provides flexibility in bi-directional board-to-board connections without welding requirements.
Right Angle Structure
Bent tail design offers space optimization options and can be soldered with wires.
Solder Cup Structure
Suitable for cable products with easy wire welding capabilities.
Screw-type Structure
Special specifications to meet diverse customer requirements with custom options.
One-piece Type Structure
Capable of passing large currents and customizable to specific customer needs.
Spherical Ball Type Structure
Supports lateral force and can be customized according to customer requirements.
Pogo Pin Internal Structures
We match suitable internal structures according to customer requirements:
Spring loaded smt contacts pogo pin
Structure A: Oblique Bevel Plunger
Conventional use with stable impedance and long life. Application: SMT & DIP regular use. Precautions: Cannot exceed limit working stroke.
Spring loaded smt contacts pogo pin
Structure B: Drilled Plunger
Maximum compression in limited spaces. Application: SMT & DIP regular use. Precautions: Cannot exceed limit stroke or excessive current use.
Spring loaded smt contacts pogo pin
Structure C: Flat Plunger
Easy machining for space structures based on A&B. Application: SMT & DIP regular use. Precautions: Cannot exceed limit stroke or excessive current use.
Spring loaded smt contacts pogo pin
Structure D: Barrel with Insulating Beads
Stable impedance suitable for currents above 10A. Application: SMT & DIP regular use. Precautions: Cannot exceed limit working stroke.
Spring loaded smt contacts pogo pin
Structure E: Double-sided Compression Plunger
Space-saving design with long distance and large compression board-to-board contact. Application: Board-to-board docking. Precautions: Cannot exceed limit working stroke.
Spring loaded smt contacts pogo pin
Structure F: Four-piece Combination
High press smoothness, small plunger deflection, waterproof and dustproof with extended working life. Application: High current, high performance, waterproof and dustproof requirements.
Spring loaded smt contacts pogo pin
Structure G: Intermediate Shaft Compression
Simple structure capable of passing high currents. Application: Welding high current use. Precautions: Cannot exceed limit working stroke.
Spring loaded smt contacts pogo pin
Structure H: Ball Compression Contact
Simple structure with easy processing. Application: Small working stroke use. Precautions: Cannot exceed limit working stroke.
Pogo Pin Application Areas
Spring loaded smt contacts pogo pin
Why Choose UPE?
  • Customization & Flexibility
  • Fast Samples = Faster Time-to-Market
  • Every connector undergoes rigorous quality checks (Incoming Material Inspection, In-Process Quality Checks, 100% Final Testing, Traceability & Compliance)
  • Customer-Focused QC Flexibility
  • Real-Time QC Collaboration
Spring-Loaded Pogo Pin Connector Performance Parameters
Name of Parts Parameter Performance Table
Barrel Material Brass | Beryllium copper | Phosphor Bronze
Plunger Material Brass | Beryllium copper | Phosphor Bronze | Stainless steel
Spring Options Stainless Steel | Music wire
Plating Requirements Gold-Au | Silver-Ag | Palladium-Nickel (Pd-Ni)
Rated Current 1A, 2A, 3A, 5A, 15A or 30A (different structures)
Rated Voltage DC 12V 24V
Contact Resistance 30mΩ 50mΩ Max. (stillness)
Life Test 50,000 cycles Min. 1,000,000 cycles Max
Reflow Temp. 265°, 4~5sec
POGO PIN Reliability Testing
Test Type Specifications
Retention Force At rated cycling of 500±50 per hour, 50,000 cycles minimum
Humidity EIA-364-31, Test method II, Condition A: 90-95% RH at 40℃ ± 2℃ for 96 hours
Resistance to Solder Heat EIA-364-56, Procedure 5, Level 2: 265℃+10/-0℃ for 30-35 seconds
Salt Spray EIA-364-26, Test condition B: 5±1% salt solution at 35+1℃/-2℃ for 48 hours
Spring Force Test Normal Force Test Procedure, 100g±20g at working height
Temperature Life EIA-364-17, Test method A, condition 4: 85℃± 2℃ for 96 hours
Solderability EIA-364-52: Dip into 265±5℃, 60/40±5% Sn/pb solder for 4.0-5.0 seconds
Contact Resistance EIA-364-23: Test current 100 mA maximum, 20 mV voltage maximum
Testing Equipment
We maintain an independent laboratory equipped with experimental equipment including:
  • Insertion force testing machine
  • Two-dimensional projector
  • Thickness meter
  • Automatic inspection machine
  • Insulation Resistance Tester
  • Metallographic sample polishing machine
  • Salt spray tester
  • Current temperature rise tester
  • Load stroke curve instrument
  • ROHS tester
  • Roughness tester
  • Elastic impedance tester
  • Life tester
UPE Company Competitive Advantages
  • High-Technology Production utilizing advanced manufacturing techniques
  • Systematic Management System ensuring efficiency and consistency
  • ISO 9001 Certification demonstrating international quality standards
  • RoHS Compliance meeting environmental and safety regulations
  • Short Development Lead Time for faster prototyping and production
  • Competitive Pricing & Stable Quality without compromising reliability
Payment Methods
T/T (Bank Transfer), PayPal, OCBC Bank
Recommendation: Use PayPal for samples (safer), Use T/T for bulk orders (lower fees)
Lead Times & Service Details
Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days
Markets Served: America, Europe, Asia, South Africa
Trade Term: EXW
Freight Options: Air, Sea, Express
Services: High quality with reasonable price, OEM service, any special size, color, designs accepted
