No Piezoelectric Ringing RTP Nonlinear Optical Materials , Nlo Crystals For OPA / OPO
No Piezoelectric Ringing RTP Nonlinear Optical Materials , Nlo Crystals For OPA / OPO
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
Jinan,China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30 days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Flatness :
λ/8 at 633nm
Clear aperture :
90% of full aperture
Aperture tolerance :
±0.1mm
Angle tolerance :
≤± 0.25°
Coatings :
C1---AR@1064(R<0.2%)&532(R<0.5%) C2---HR@1064(R>99.8%)&HT@532(T>95%) C3---AR@1064(R<0.2%)&1570(R<0.5%) C4---HR@1570(R>99.8%)&HT@1064(T>99.5%) C5---HR@1064(R>99.8%)&PR@1570(R=50,60,70%+/-2%)
Dimension Tolerance :
W(+/-0.1)*H(+/-0.1)*L(+0.5/-0.1)mm
Description

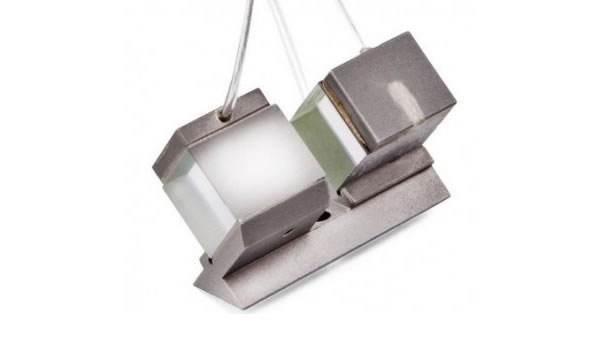

No Piezoelectric Ringing RTP Nonlinear Optical Crystals For OPA And OPO.

Products Description:

RTP NON-LINEAR CRYSTALS

Rubidium Titanyl Phosphate RbTiOPO4 (RTP) is a new NLO crystal for the SHG,OPO and Electro-optic application.

RTP single crystals are recently grown by Top Seeded Solution Growth (TSSG) from self-flux and treated electro-thermally.

ADVANTAGES

  • An excellent crystal for Electro Optical applications at high repetition rate
  • No Piezoelectric Ringing
  • Low Insertion Loss
  • Thermal Compensating Design
  • High Extinction and Contrast Ratio
  • Non-hygroscopic

APPLICATIONS

  • E-O application

SPECIFICATIONS

Parallelism ≤20 arcsec
Surface quality 20-10 scratch & dig (MIL-PRF-13830B)
Perpendicularity ≤5 arcmin
Angle tolerance ≤± 0.25°
Dimension tolerance ±0.1mm
Aperture tolerance ±0.1mm
Clear aperture 90% of full aperture
Chamfer ≤0.2 mmx45°
Chip ≤0.1mm
Quality Warranty Period One year under proper use
