Electro Optical Laser Optics , Non Linear Media For E - O / Parametric Amplifiers
Electro Optical Laser Optics , Non Linear Media For E - O / Parametric Amplifiers
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
Jinan,China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30 days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Flatness :
λ/8 at 633nm
Clear aperture :
90% of full aperture
Aperture tolerance :
±0.1mm
Angle tolerance :
≤± 0.25°
Chamfer :
≤0.2mmx45°
Wavefront distortion :
λ/8@633nm
Description

An Excellent Crystal For Electro Optical Applications RTP Nonlinear Optical Crystals For E-O Application

Products Description:

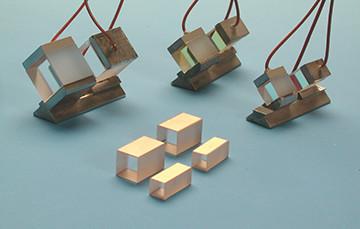

RTP NON-LINEAR CRYSTALS

Rubidium Titanyl Phosphate RbTiOPO4 (RTP) is a new NLO crystal for the SHG,OPO and Electro-optic application.

RTP single crystals are recently grown by Top Seeded Solution Growth (TSSG) from self-flux and treated electro-thermally.

ADVANTAGES

  • An excellent crystal for Electro Optical applications at high repetition rate
  • No Piezoelectric Ringing
  • Low Insertion Loss
  • Thermal Compensating Design
  • High Damage Threshold
  • High Extinction and Contrast Ratio

APPLICATIONS

  • SHG Nd: lasers at 1064nm
  • Optical Parametric Amplifiers (OPA] and Oscillators (OPO) application
  • E-O application

SPECIFICATIONS

Flatness λ/8 at 633nm
Parallelism ≤20 arcsec
Surface quality 20-10 scratch & dig (MIL-PRF-13830B)
Perpendicularity ≤5 arcmin
Angle tolerance ≤± 0.25°
Dimension tolerance ±0.1mm
Aperture tolerance ±0.1mm
Clear aperture 90% of full aperture
Chamfer ≤0.2 mmx45°
Quality Warranty Period One year under proper use
