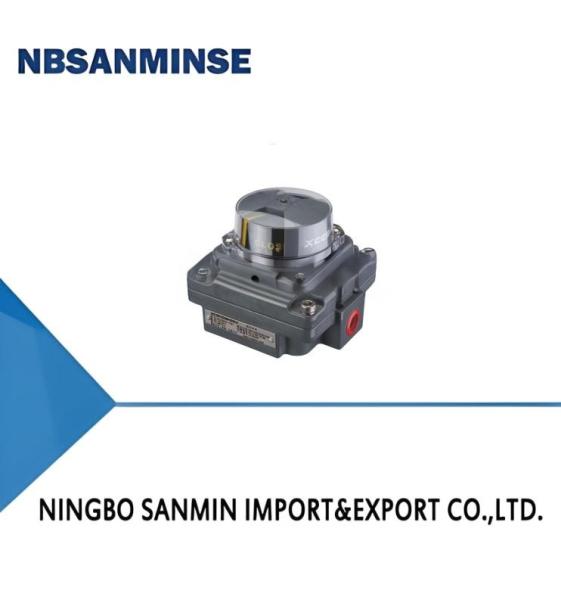

CGSCN 11N1 Sanmin Dust Low-temperature Explosion-proof Limit Switch
CGSCN 11N1 Sanmin Dust Low-temperature Explosion-proof Limit Switch
Specifications
Brand Name :
NBSANMINSE
Model Number :
CGSCN 11N1
Place of Origin :
CHINA
Certification :
CE
In switch :
Mechanical Switch (2*SPDT) Inductive Proximity Sensor Omron P+F
Terminal :
8 Point 8 Point
Level protection :
Ex d IIC T6 Gb Ex Td A21 IP67 T80℃
temperature :
-20℃+60℃-40℃~+60℃
Scaffold :
2-1/2(NPT,PT,PF),M20x1.5
Scaffold Stack :
NAMUR VDI/VDE 3845,ISO 5211
Texture of timber :
Aluminium die casting
Weight :
1.6KG
Description
CGSCN 11N1 Dust low-temperature explosion-proof limit switch

1.When using in environments with explosive gases, power cables and connectors with explosion-proof certification must be used for wiring. Always disconnect the power before opening the XCGSCN cover.

2.When opening the XCGSCN cover for maintenance, ensure the power is disconnected and wait at least 30 seconds before removing the casing.

3.For the two power interfaces, any unused port must be completely sealed with an explosion-proof certified connector.

4.Pay attention to correct polarity during wiring to avoid reverse connections.

5.Avoid excessive force during wiring to prevent insulation damage.

6.Proper grounding must be ensured in accordance with on-site and explosion-proof regulations.
Selection code
CGSCN A B C D E F A
A.Explosion proof type 0: Ordinary type 1: Split type 2: Low temperature type 3:Dust and low-temperature explosion-proof type
B.Mechanical switch 1:Mechanical switch (2 xSPDT) 2: Induction switch C.Position transmission (2 switches only) ——————
N: not have 0:4-20 mA output signal 1:20-4 mA output signal —————— ——————
D. cable interface 1:2-NPT1/2 2:2xM20x1.5 —————— ——————
E.Control mode (only with solenoid valve) —————— —————— —————— ——————
N: not have —————— —————— —————— ——————
S:Single electric control —————— —————— —————— ——————
D:Dual electric control —————— —————— —————— ——————
F.Supply voltage (only with solenoid valve) 1:220VAC 2 24VAC —————— ——————
In switch Mechanical Switch (2*SPDT) Inductive Proximity Sensor
Omron P+F

Voltagerated

AC

250V 3A

125V 5A

250V 10.1A

125V 10.1A

DC

250V 0.2A

125V0.4A 30V 4A

250V 0.2A

125V0.4A

30V 4A

5-60V 4-100mA

8-25V
Terminal 8 Point 8 Point
Level ofprotection Ex d IIC T6 Gb Ex Td A21 IP67 T80℃

Environ mental

temperature

 -20℃+60℃-40℃~+60℃

Scaffold

spedifications

 2-1/2(NPT,PT,PF),M20x1.5

Scaffold

Stack specifications

 NAMUR VDI/VDE 3845,ISO 5211
Texture of timber Aluminium die casting
Weight

1.6KG

CGSCN 11N1 Sanmin Dust Low-temperature Explosion-proof Limit Switch

CGSCN 11N1 Sanmin Dust Low-temperature Explosion-proof Limit Switch

Installation Method

1.Fix the bracket below the product.

2.Insert the main shaft of the product into the groove of the actuator, and then fix the bracket to the actuator.
