FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A Perfect Steel Flat Plate Level Gauge For Oil
FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A Perfect Steel Flat Plate Level Gauge For Oil
Specifications
Brand Name :
NBSANMINSE
Model Number :
FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A
Place of Origin :
china
Code :
FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A
Size（mm） :
L 300 350 440 600 670 A L1 145 172 200 350 420 B D 115(105) D1 85(75) D2 65(55)
Part name :
valve body Sealing Glass gasket glass
Material :
Q235,forged steel bushing graphite Low alkali high borosilicate
Nominal pressure :
2.5（4.0）Mpa
Strength test pressure :
4.0（6.4）Mpa
Seal test pressure :
2.5（4.0）Mpa
Operation temperature :
≤225℃
Working medium :
Water, steam, oil
Description

Hot spot of 105 steel flat plate level gauge: Advantages of flat plate level gauge: professional manufacturer | suitable for high temperature | good quality. Flat level gauges are suitable for various complex measurements, such as small dielectric constant media, large temperature and pressure changes, corrosive working conditions, media such as fly ash, and volatile corrosive liquid media Order now!

FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A Perfect Steel Flat Plate Level Gauge For Oil

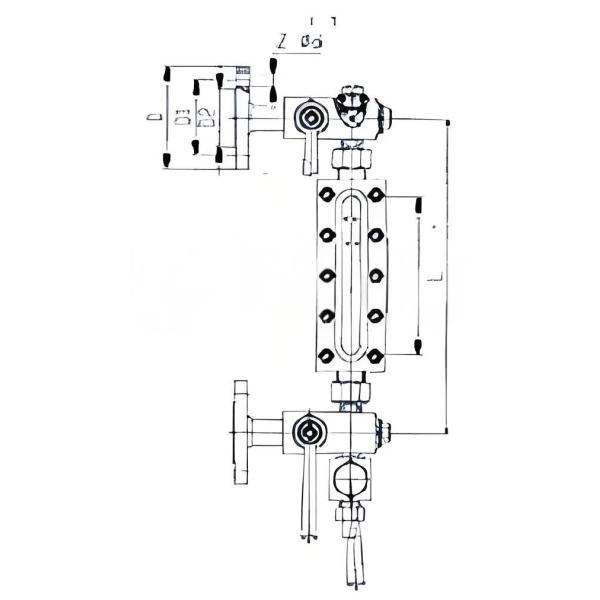

code size(mm) Part name material
L L1 D D1 D2
FL-105-300 300 145 115(105) 85(75) 65(55)
FL-105-350 350 172
FL-105-440 440 200 valve body Q235, forged steel
FL-105-600 600 350 Sealing bushing
FL-105-670 670 420 Glass gasket graphite
FL-105-A A B glass Low alkali high borosilicate
Nominal pressure 2.5(4.0)Mpa
strength test pressure 4.0(6.4)Mpa
Seal test pressure 2.5(4.0)Mpa
operation temperature ≤225℃
Working medium Water, steam, oil
