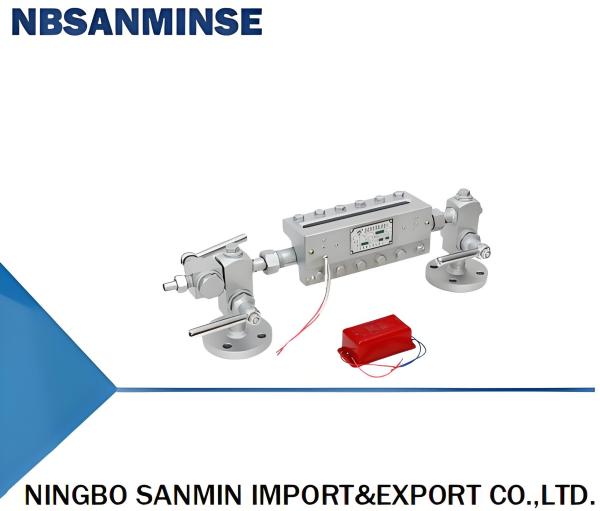

Valve Body Steel Dual Color Liquid Level Gauge With 2.5（4.0）Mpa Nominal Pressure And Sealing Glass Gasket Glass
Valve Body Steel Dual Color Liquid Level Gauge With 2.5（4.0）Mpa Nominal Pressure And Sealing Glass Gasket Glass
Specifications
Brand Name :
NBSANMINSE
Model Number :
FLD-109-300 FLD-109-350 FLD-109-440 FLD-109-A
Place of Origin :
china
Code :
FLD-109-300 FLD-109-350 FLD-109-440 FLD-109-A
Size（mm） :
L 300 350 440 A L1 145 172 200 B D 115(105) D1 85(75) D2 65(55) Z-φd 4-φ14
Part name :
valve body Sealing Glass gasket glass
Material :
Q235,forged steel bushing graphite Low alkali high borosilicate
Nominal pressure :
2.5（4.0）Mpa
Strength test pressure :
4.0（6.4）Mpa
Seal test pressure :
2.5（4.0）Mpa
Operation temperature :
≤225℃
Working medium :
Water, steam, oil
Description

This water level gauge is suitable for steam boilers or reservoirs with a working temperature of t ≤ 220 ℃, and is used to indicate the liquid level through two colors displayed on the glass plate: red (with water) and green (without water).

Valve Body Steel Dual Color Liquid Level Gauge With 2.5（4.0）Mpa Nominal Pressure And Sealing Glass Gasket Glass

code size(mm) Part name material
L L1 D D1 D2 Z-φd
FLD-109-300 300 145 115(105) 85(75) 65(55) 4-φ14 valve body Q235,forged steel
FLD-109-350 350 172 Sealing bushing
FLD-109-440 440 200 Glass gasket graphite
FLD-109-A A B glass Low alkali high borosilicate
Nominal pressure 2.5(4.0)Mpa
strength test pressure 4.0(6.4)Mpa
Seal test pressure 2.5(4.0)Mpa
operation temperature ≤225℃
Working medium Water, steam, oil
