Sealing Element Three Handle Liquid Level Gauge For D1 1/2 3/4 Valve Body
Sealing Element Three Handle Liquid Level Gauge For D1 1/2 3/4 Valve Body
Specifications
Brand Name :
NBSANMINSE
Model Number :
TL103-15 TL103-20
Place of Origin :
china
Code :
TL103-15 TL103-20
Size（mm） :
D1 1/2" 3/4"
Part name :
valve body Sealing element handle
Material :
brass PTFE
Nominal pressure :
0.6Mpa
Strength test pressure :
1.0Mpa
Seal test pressure :
0.6Mpa
Operation temperature :
≤200℃
Working medium :
Water, steam, oil
Description

This level gauge (also known as a water level gauge) is suitable for water, steam, and reservoirs with a working temperature t ≤ 200 ℃, and is used to indicate the level of liquid through a glass tube. 103 X29F-6T type code: 103 X29F-6T type (three handles/pair) water level gauge main parts material part name material valve body brass seal polytetrafluoroethylene (plastic king) handle forged steel main technical parameters nominal pressure PN0.6MPa strength test pressure 1.0 sealing test pressure 0.6 working temperature ≤ 200 ℃ working medium: water, steam, oil

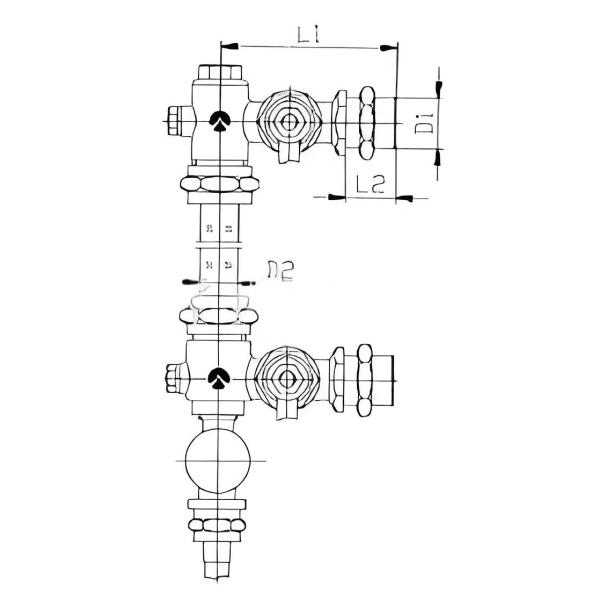

Sealing Element Three Handle Liquid Level Gauge For D1 1/2

code size(mm) Part name material
D1 D2 L1 L2 valve body brass
TL103-15 1/2" 14 87 25 Sealing element PTFE
TL103-20 3/4" 19 95 30 handle forged steel
Nominal pressure 0.6Mpa
strength test pressure 1.0Mpa
Seal test pressure 0.6Mpa
operation temperature ≤200℃
Working medium Water, steam, oil
