PSPD Series Double Springs Heavy-duty Level Compensator
PSPD Series Double Springs Heavy-duty Level Compensator
Specifications
Brand Name :
NBSANMINSE
Model Number :
PSPD-E25G2M-M20
Place of Origin :
CHINA
MOQ :
10PCS
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Certification :
ISO9001
Price :
Negotiate
Payment Terms :
T/T,L/C
Pretightening force(1) N :
8.6
Elastic force(2) N :
16.8
Vertical load(3) N :
2400
Working temperature ℃ :
0~80
Weight g :
181
Warranty :
1 Year
Description
Features
◇ Oilless, wear-resistant bushing is built in the guide sleeve
◇ With double buffer springs
◇ Non-rotating type can be selected
◇ Various buffer stroke specifications are available
Advantages
◇ Reduce product wear, improve the lifetime of the products
and reduce the noise
◇ Flexible contact with fragile workpieces, compensate the height
difference of workpieces
◇ Suitable for precise positioning of oval suction cup
◇ Suitable for various working conditions
Applications
◇ Suitable for handling heavy workpieces, such as steel plate
◇ Suitable for the working conditions that need flexible contact
and shock absorption when carrying objects, such as glass
◇ Suitable for use in harsh environment
◇ Non-rotating level compensator is suitable for oval suction cup
◇ Double spring buffer structure can prevent the impact on the
support rod end when handling the workpiece and turning it over

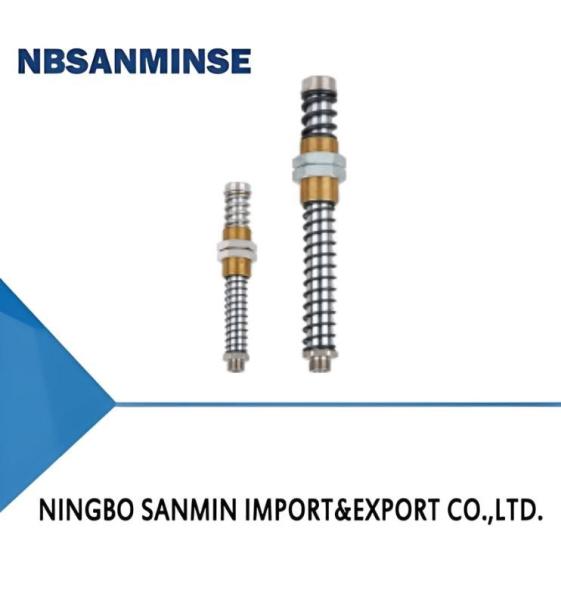

PSPD Series Double Springs Heavy-duty Level Compensator
Structure
◇ (1) Vacuum generator connection
◇ (2) Spring
◇ (3) Mounting nut
◇ (4) Guide sleeve
◇ (5) Spring
◇ (6) Suction cup connection
PSPD Series Double Springs Heavy-duty Level Compensator
PSPD -E 25 R G3M -M30
① ② ③ ④ ⑤ ⑥
①Series ②Buffer type ③Buffer stroke ④Rotary type ⑤Suction cup connection ⑥Mounting thread
PSPD E-External spring 25 Nil-Verticalrotating G2M-G1/4 male thread M20-M20×1.5


50 R-Vertical non-rotating G3M-G3/8male thread M30-M30×1.5

90
G4M-G1/2male thread
Selection
Model/Connection thread
G2M RG2M G3M RG3M G4M RG4M
PSPD-E25G2M-M20


 PSPH-E25RG2M-M20
 PSPD-E25G3M-M30
 PSPD-E25RG3M-M30
 PSPD-E25G4M-M30
 PSPD-E25RG4M-M30
PSPD-E50G2M-M20

 PSPH-E50RG2M-M20 PSPD-E50G3M-M30 PSPD-E50RG3M-M30 PSPD-E50G4M-M30 PSPD-E50RG4M-M30
- - PSPD-E90G3M-M30 PSPD-E90RG3M-M30 PSPD-E90G4M-M30 PSPD-E90RG4M-M30
Technical parameters
Model Pretightening force(1)
N		 Elastic force(2)
N		 Vertical load(3)
N		 Working temperature
℃		 Weight
 g
PSPD-E25(R)G2M-M20

 8.6


 16.8 2,400 0~80 181

PSPD-E50(R)G2M-M20
 PSPD-
 14.4

 21 2,400 0~80 207

PSPD-E25(R)G3M-M30

24 74.5 4,800 0~80 507
PSPD-E50(R)G3M-M30


 7.5 61 4,800 0~80 600
PSPD-E90(R)G3M-M30 25.2 73.7 4,800 0~80 754
PSPD-E25(R)G4M-M30


24 74.5 4,800 0~80 515
PSPD-E50(R)G4M-M30


 7.5 61 4,800 0~80 608
PSPD-E90(R)G4M-M30 25.2 73.7 4,800 0~80 762
◇ Note: 1. Pretightening force is spring elastic force when spring is compressed in nature state
2. Elastic force is spring elastic force when level compensator is compressed in 50% stroke, it is suggested that the actual working compressed
stroke of level compensator does not exceed 50% of its max. compressed stroke
3. Vertical load refers to the max. vertical tension that the level compensator can bear in static state
4. When the level compensator is installed horizontally, the workpiece will produce gravity perpendicular to the direction of the level compenasator,
If the gravity is bigger than the horizontal load range, the spring may get stuck

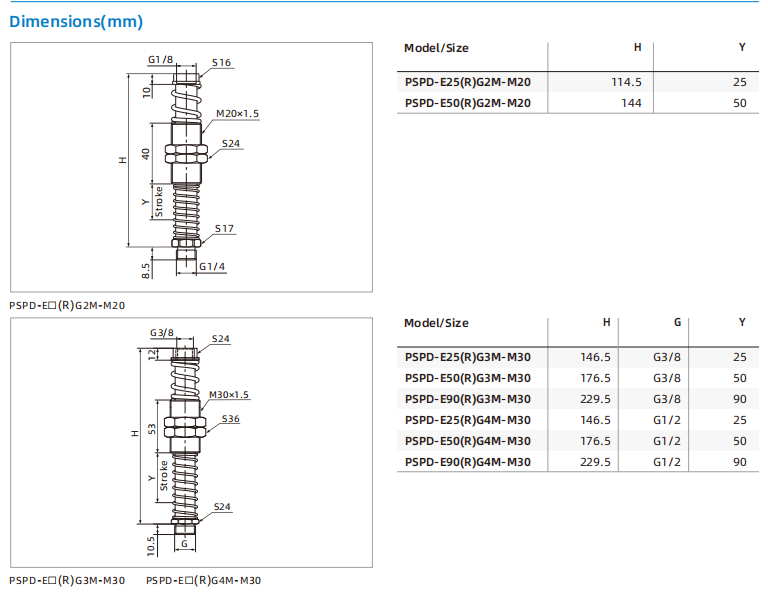

PSPD Series Double Springs Heavy-duty Level Compensator
