SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
Specifications
Brand Name :
NBSANMINSE
Model Number :
SZC10
Place of Origin :
CHINA
MOQ :
10PCS
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Certification :
ISO9001
Price :
Negotiation
Payment Terms :
T/T,L/C
Suction cup type :
U - Flat
Diameter :
2 - φ2mm 16 - φ16mm
Power Type :
Air
Warranty :
1 Year
Series :
sz
Description
Features
◇ Available in various shapes: U type, C type , B type and D type
◇ Simple structure
◇ Conductive material available
◇ Available in various sizes
Advantages
◇ Small size and light weight
◇ Suitable for workpieces of various sizes and shapes
Applications

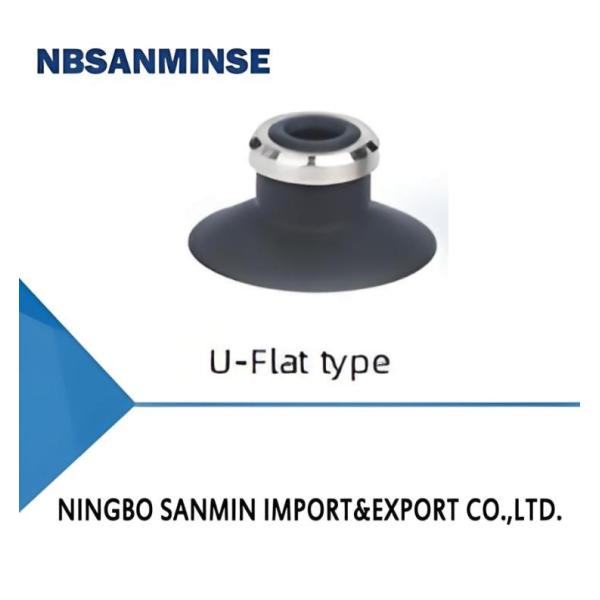

◇ U type suitable for workpieces with even surface and without deformation
◇ C type suitable for easily deformed workpieces

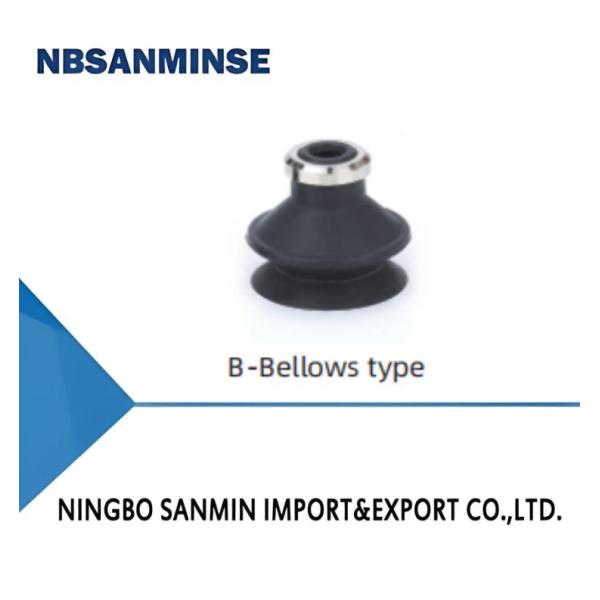

◇ B type suitable for workpieces with inclined surface

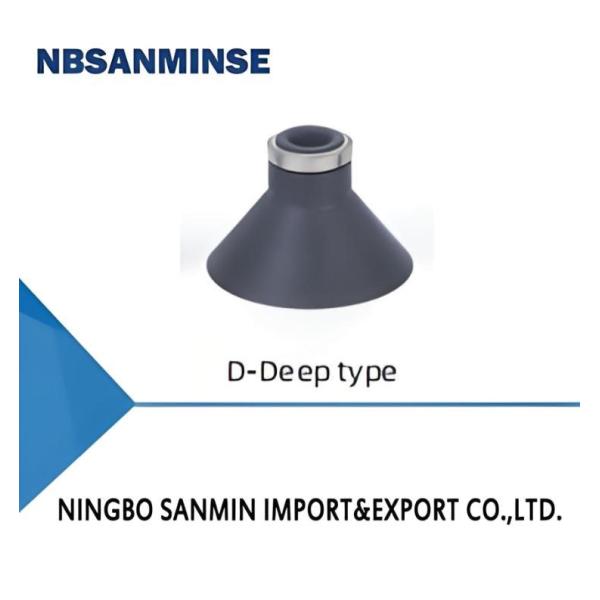

◇ D type suitable for spherical objects
◇ Suitable for handling of paper box, small sized semiconductor, spherical
objects and food, ect.
◇ Conductive material suitable for 3C industry
SZ Series Standard Suction Cup
Structure
◇ Split structure for easy replacement of wearing parts
SZ Series Standard Suction Cup

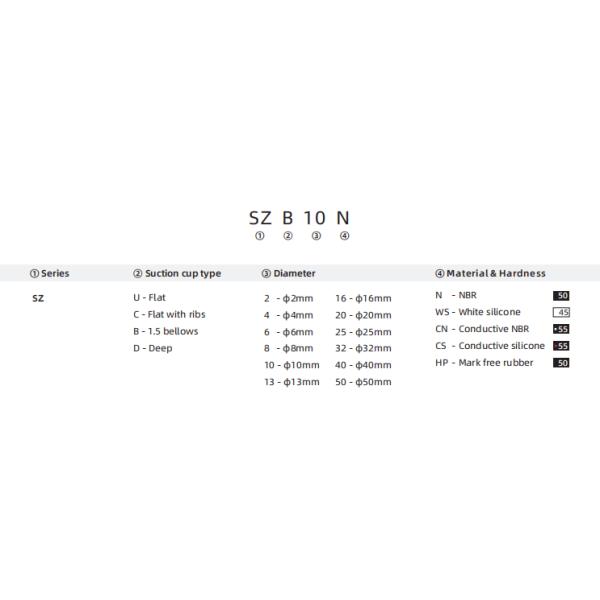

How to orde
SZ Series Standard Suction Cup
◇ Note: HP material is not for all sizes. Please contact AIRBEST if need

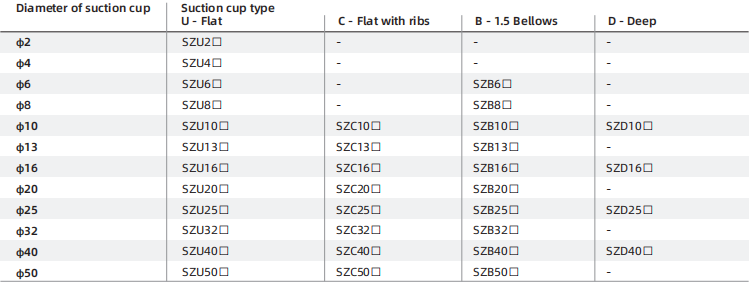

Selection
SZ Series Standard Suction Cup

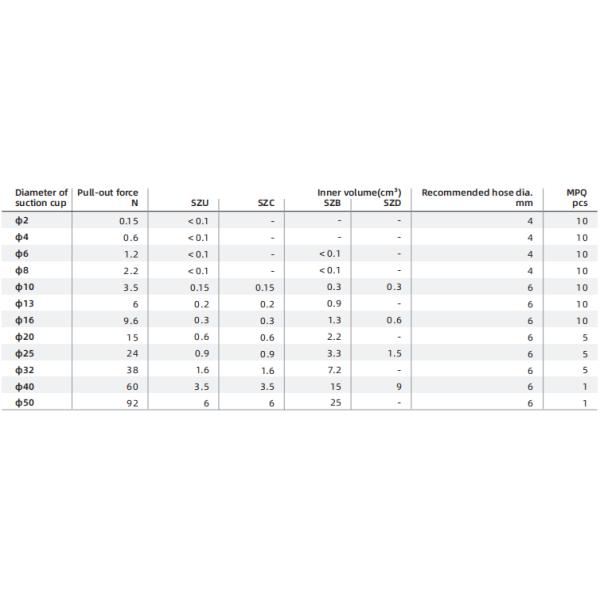

Technical parameters
SZ Series Standard Suction Cup
◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m.

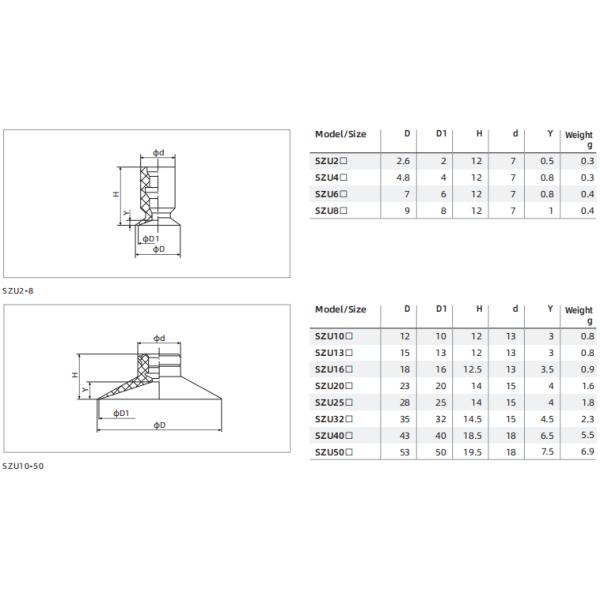

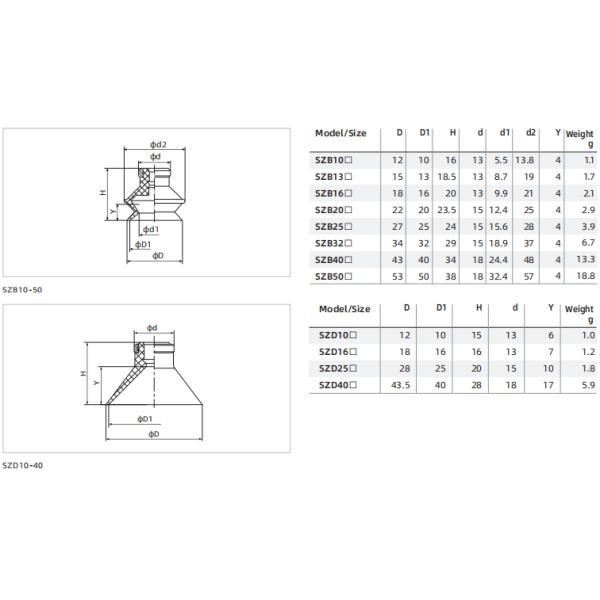

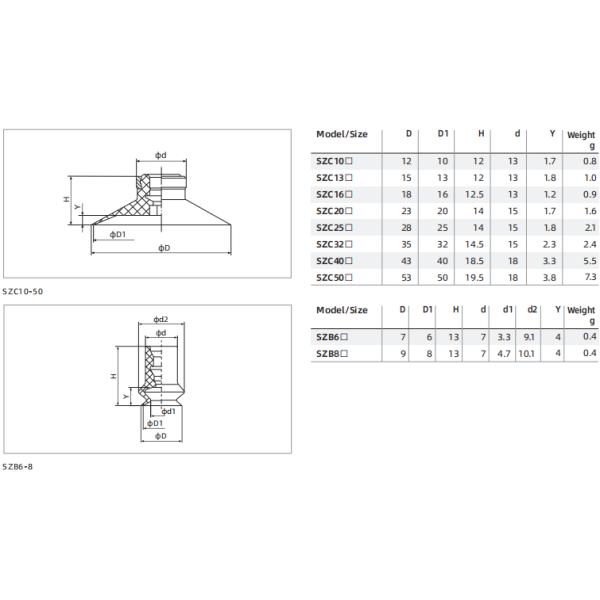

Dimensions(mm)
SZ Series Standard Suction Cup
Dimensions(mm)
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard

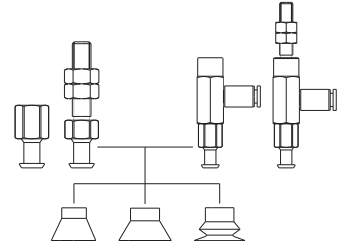

Structure
◇ Consisting of replacement suction cup and locking fitting
◇ Plug-in fitting for suction cup
◇ Vertical vacuum port, male and female thread for mounting
◇ Lateral vacuum port, male and female thread for mounting
In the same series, replacement suction cup and locking fitting can be combined as required
SZ Series Standard Suction Cup

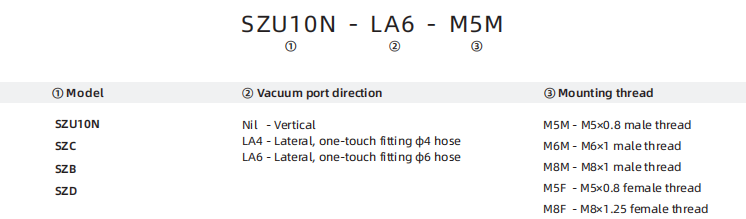

How to order
SZ Series Standard Suction Cup
◇ Please refer to page 64 for suction cup selection

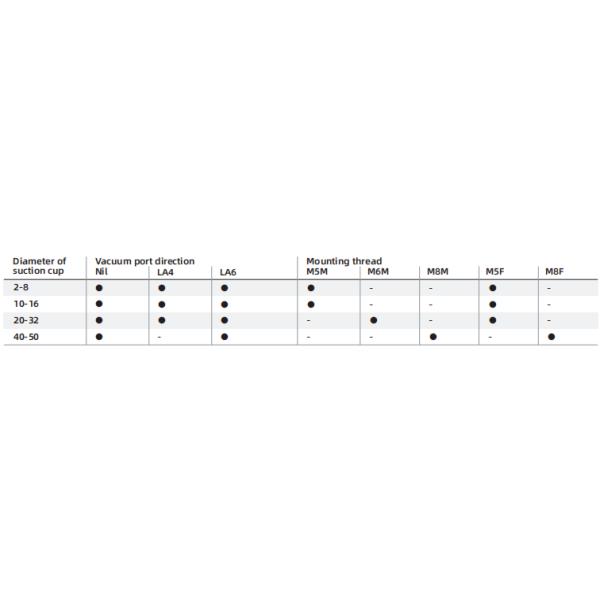

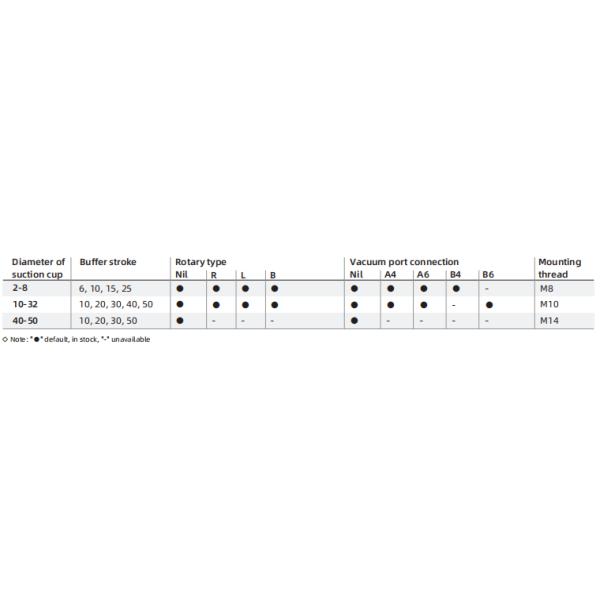

Selection
SZ Series Standard Suction Cup
◇ Note: "●" default, in stock, "-" unavailable

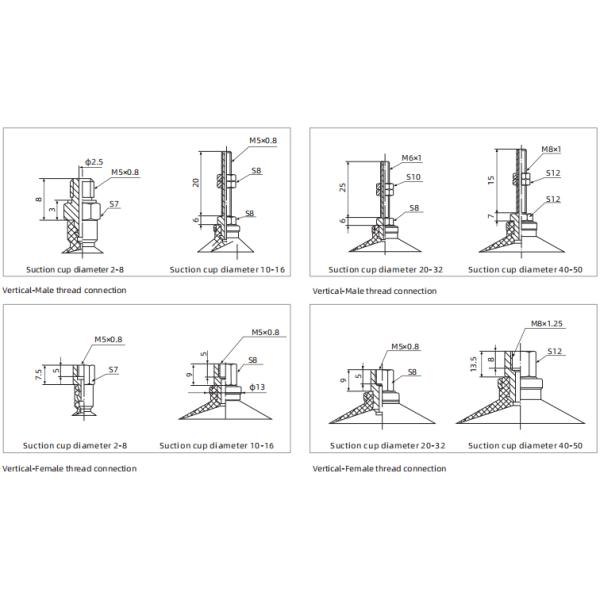

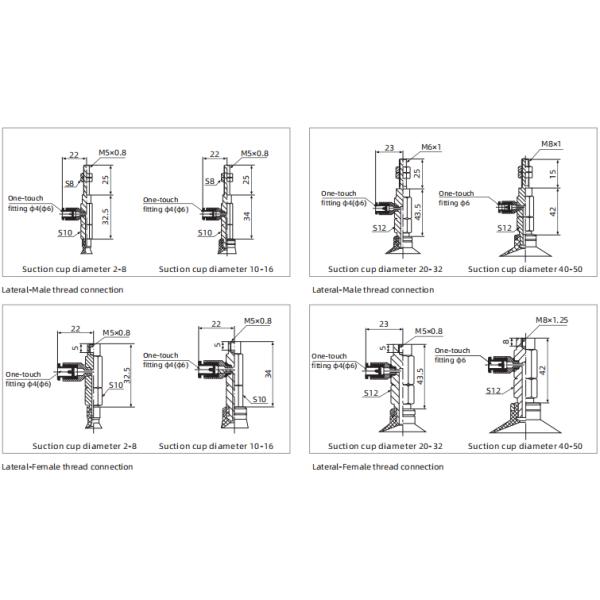

Dimensions(mm)
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup

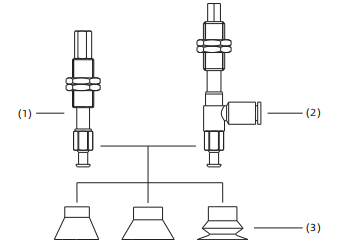

Structure
◇ Consisting of replacement suction cup(3) and level compensator
◇ Plug-in fitting for suction cup
◇ Vertical vacuum port(1), male thread for mounting
◇ Lateral vacuum port(2), male thread for mounting
In the same series, replacement suction cup and locking fitting can be combined as required
SZ Series Standard Suction Cup

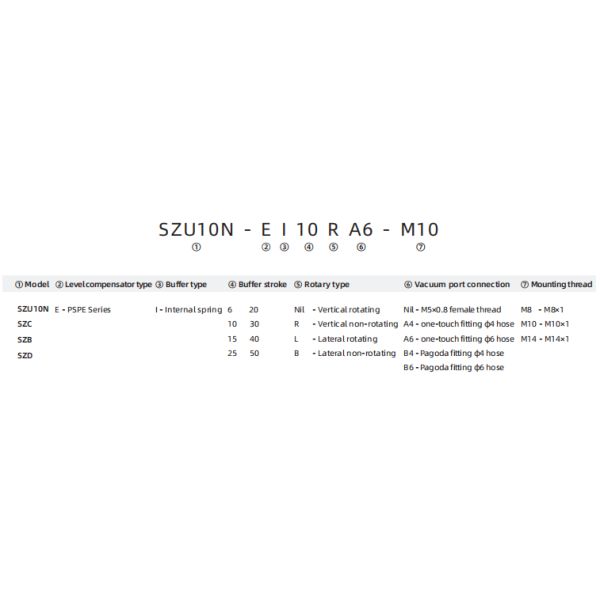

How to order
SZ Series Standard Suction Cup
◇ Please refer to page 64 for suction cup selection
Selection
SZ Series Standard Suction Cup

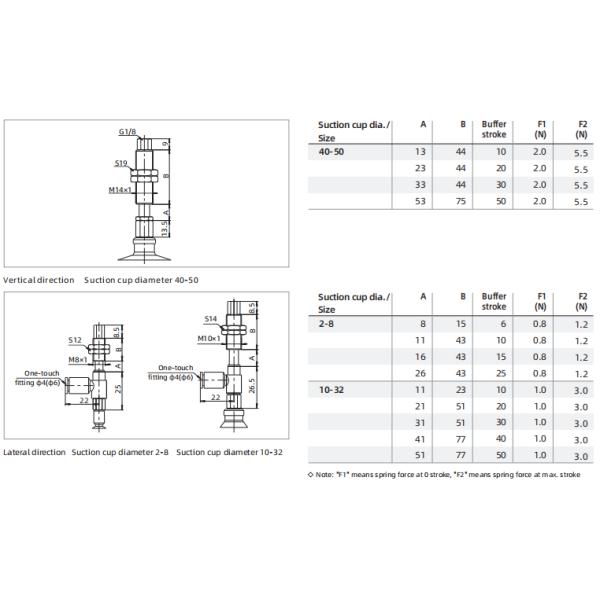

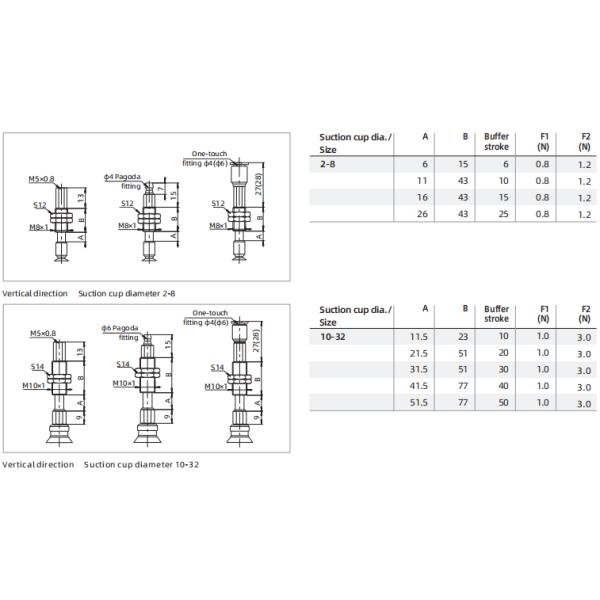

Dimensions(mm)
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
