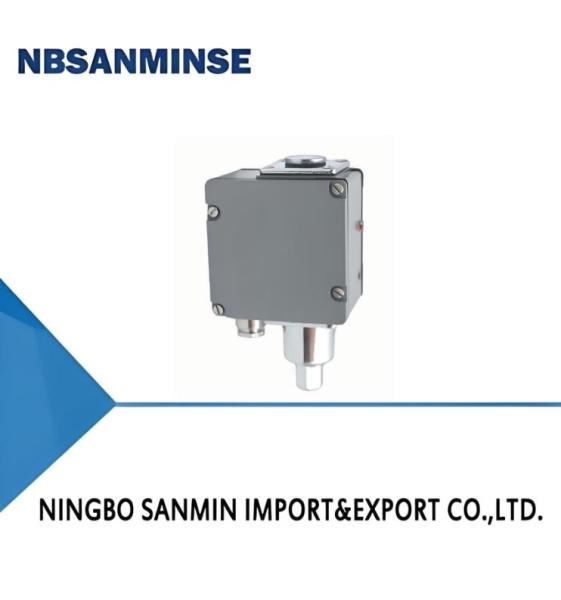

TL5238 Bellows Sensor Pressure Switch Pressure Controller Adjustable
TL5238 Bellows Sensor Pressure Switch Pressure Controller Adjustable
Specifications
Brand Name :
NBSANMINSE
Model Number :
TL5238
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiate
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Working viscosity :
<1×10－3m2/s
Ambient temp. :
－25℃～55℃
Medium temp. :
0～95℃
Repeatability error :
≤1.5%
Warranty :
1 Year
Description

Overview
The TL5238 pressure switch/controller adopts a bellows sensor, which can be used for neutral gases such as air and steam, as well as liquid media such as water, refrigerant, and oil.
The setting value of TL5238 pressure switch/pressure controller is adjustable, with a range of 0-2MPa. The shell is made of cast aluminum and is waterproof.

Main Technical Performance

Working viscosity <1×10－3m2/s
Degrees of protection provided by enclosure IP65
Ambient temperature －25℃～55℃
Medium temperature 0～95℃
Repeatability error ≤1.5%
Contact capacity Vmax=380V AC Imax=6A(Resistive)Pmax=600VA

Specifications
Switching difference is not adjustable (single pole double throw micro switch)

Setting value adjustment range (MPa) Switching difference not greater than (MPa) **Allowable pressure ① (MPa) Switching frequency/minute Pressure sensing material Internal thread of interface Outline dimension drawing number Order Code Catalog
Casing Corrugated tube
0～0.1 0.003 1.2 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.10-110066
0～0.2 0.004 1.2 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.10-112066
0.02～0.4 0.008 1.2 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.10-151066
0.02～0.6 0.01 1.2 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.10-152066
0.03～0.8 0.012 1.8 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.10-157066
0.03～1.0 0.015 2.0 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.10-158066
0.05～1.6 0.025 2.5 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.10-167066
0.05～2.0 0.03 3.5 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.10-168066

Switching difference adjustable (single pole double throw micro switch)

Setting value adjustment range (MPa) Switching difference not greater than (MPa) **Allowable pressure ① (MPa) Switching frequency/minute Pressure sensing material Internal thread of interface Outline dimension drawing number Order Code Catalog
Casing Corrugated tube
0～0.1 0.008 1.2 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.00-110066
0～0.2 0.01 1.2 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.00-112066
0.02～0.4 0.025 1.2 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.00-151066
0.02～0.6 0.03 1.2 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.00-152066
0.03～0.8 0.04 1.8 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.00-157066
0.03～1.0 0.05 2.0 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.00-158066
0.05～1.6 0.08 2.5 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.00-167066
0.05～2.0 0.12 3.5 20 hpb59-1 brass 1Cr18 Ni9Ti stainless steel G1/4 01 TL5238.00-168066

Note: In practical work, even a brief peak pressure cannot exceed
