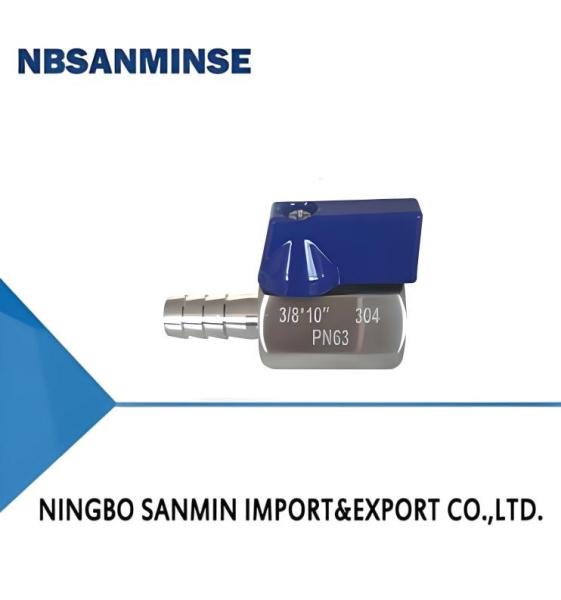

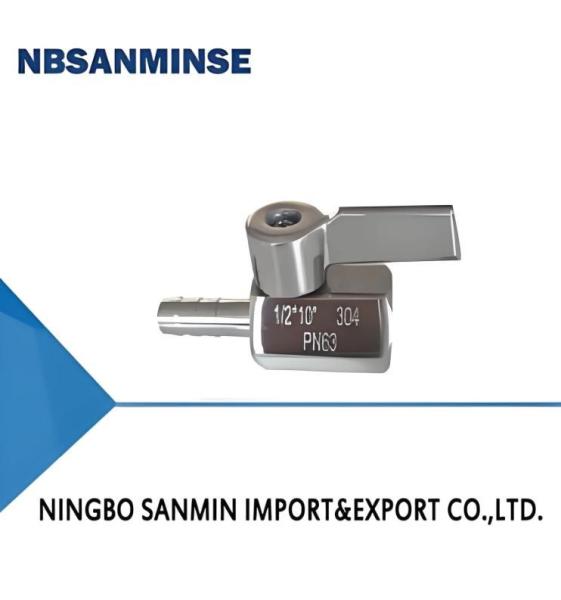

Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''
Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''
Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''
Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''
Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''
Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''
Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''
Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''
Specifications
Brand Name :
NBSANMINSE
Model Number :
1/8'M/F-SS316
Place of Origin :
CHINA
MOQ :
10PCS
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Certification :
ISO9001
Price :
Negotiate
Payment Terms :
L/C,T/T
Pressure Range :
1000PSI/PN63
Size :
1/8'' 1/4'' 3/8'' 1/2'' 3/4''
Material :
SS316
Warranty :
1 Year
Application :
Automatic pressure relief protection device
Description

Features:
1000PSI/PN63
Reduced port
Investment casting
Blow-out proof stem
Sanitary design
PED97/23/EC (CE6036) Approved
Casting Approved AD2000 - W0
Thread : ASME B1.20.1, BS21.0,DIN2999/259, ISO228 - 1, JIS B 2023, ISO7/1
Inspection and Testing: API 598, EN12266

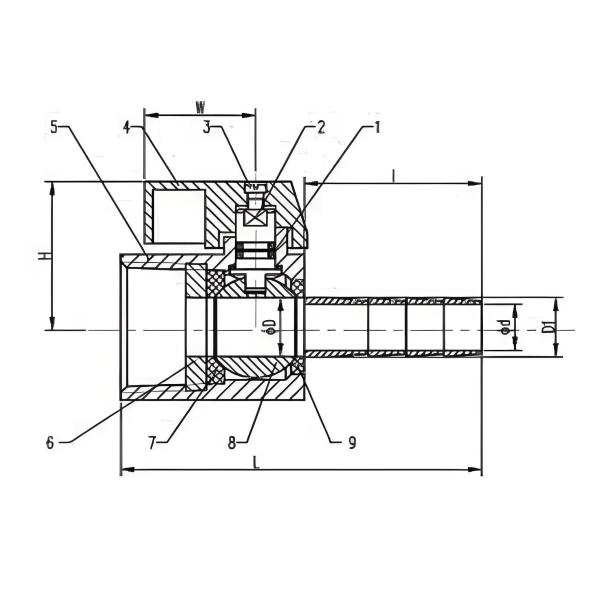

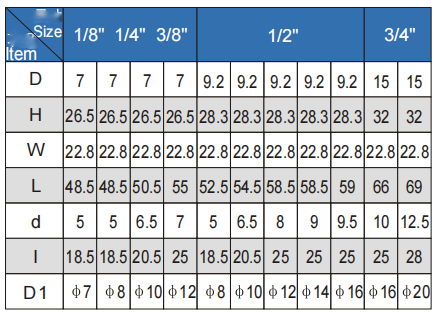

Dimension Table:

Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''


Mini Ball M/F Micro Pneumatic Solenoid Valve 1/4''

Mini ball valves are compact shut-off valves used in applications with limited space, controlling water, gas, air, and oil in domestic and industrial settings such as plumbing, irrigation, HVAC, and small-scale gas and oil lines. Their compact design, quarter-turn operation, and ability to handle varying temperatures and pressures make them ideal for tight spots and space-saving processes where larger valves are impractical.
Common Applications
Plumbing and Domestic Systems: Used in residential and light commercial water systems, including domestic hot and cold water, and for controlling gas flow from natural or bottled gas lines.
Irrigation: Control water flow in smaller irrigation systems.
HVAC Systems: Control the flow of chilled or hot water in heating and air conditioning plants.
Compressed Air Systems: Regulate the flow of compressed air in various applications.
Oil and Gas: Manage the flow of oil in engine coolers and for isolating lines in industrial oil and gas applications.
ndustrial Processes: Control various fluids, including process chemicals, steam, and multi-fluid applications, particularly where space is a constraint.
Key Characteristics
Compact Size: Their small size makes them ideal for tight and confined spaces where conventional valves won't fit.
Quarter-Turn Operation: They open and close with a simple 90-degree turn of their lever handle.
Threaded Connections: Many have threaded ends (male and female) for easy integration into existing pipework.
Durability: Often constructed from materials like stainless steel or brass, they are durable and can operate reliably under high-pressure and high-temperature conditions.
Versatility: Can handle a wide range of media, including water, gas, oil, solvents, and even vacuum, depending on the valve's material and design
