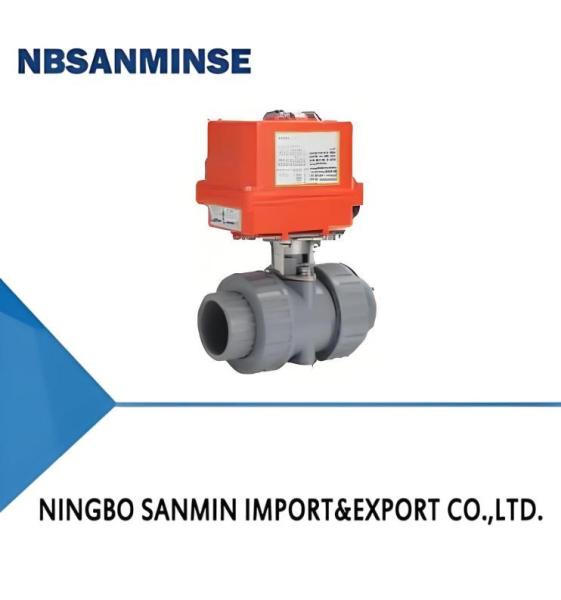

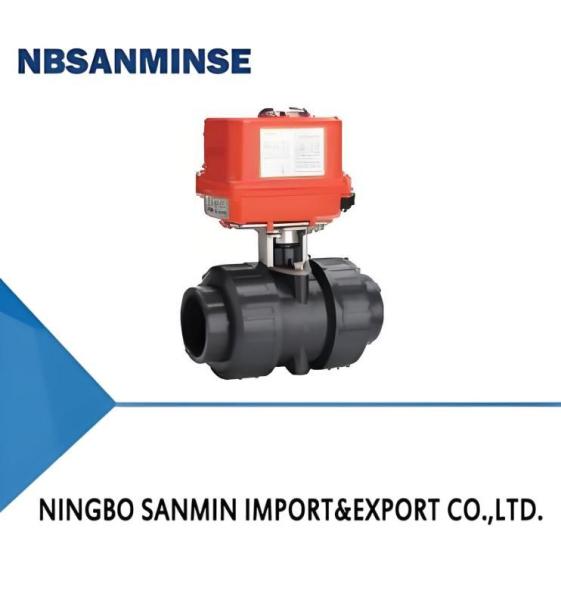

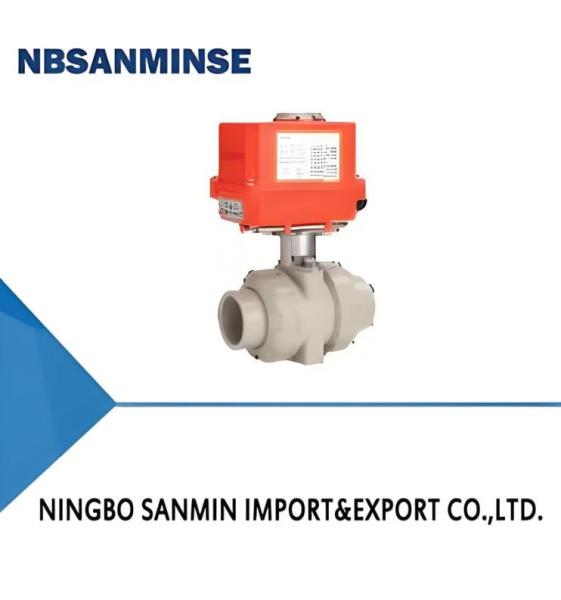

Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance
Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance
Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance
Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance
Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance
Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance
Specifications
Brand Name :
NBSANMINSE
Model Number :
UPVC
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Material :
Alloy,Brass,Stainless Steel,Box,aluminium
Media :
Gas,Water,Air,oil,steam
Standard or nonstandard :
Standard
Motion pattern :
Inner Guide type,Inner Piloted Type,direct drive
Connection :
Female Thread,Thread(NPT,Flange End,BSP,BSPT)
Working temperature :
5-50degree,5~50°C
Description

Product features:

The new generation of small and compact electric actuators, the body is more delicate, the output torque is larger, the performance is stable and accurate, the plastic valve body has high overall strength, flexible rotation, reliable sealing, long service life

SIZE D L L1 H Operating orque(N-M)
1/2”(DN15) 46 112 19.9 148.00 2.0
3/4”(DN20) 55 131.1 23.1 153.00 2.5
1”(DN25) 66 142.6 22 184.00 4.0
1-1/4”(DN32) 82 167 33 190.00 5.0
1-1/2”(DN40) 98 174.7 32.2 196.00 7.5
2”(DN50) 119 204 36.5 245.00 8.5
2-1/2”(DN65) 150 278 64.50 287.00 13
3”(DN80) 169 310 70.00 296.00 16
4”(DN100) 190 352 84.00 330.00 25


Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance

Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance

Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance

UPVC

PVC is formed by the polymerization of vinyl chloride monomer (VCM). When PVC is mixed with solid additives, the resulting product is called PVC, also known as rigid PVC. It has strong mechanical properties, wear resistance, flame retardancy, good dielectric properties, and excellent corrosion resistance, making it suitable for general corrosive fluids.

CPVC

CPVC is a high molecular material with higher chlorine content, produced by chlorinating PVC molecules again. Its average chlorine content reaches 74%. Due to the increased chlorine content, it demonstrates significantly better temperature resistance, acid/alkali resistance, and mechanical strength compared to UPVC. Additionally, it features a higher ignition point, low smoke emission, lower electrical conductivity, and superior wear resistance. These characteristics make it the optimal material for industrial pipe fittings and valves.

PTFE(polytetrafluoroethylene)

Compact High Torque Electric Ball Valve with 5-50°C Working Temperature for Reliable Performance
