2 Port Pilot Operated Solenoid Valve AC100V 50/60Hz 1.0MPA for Dry Air and Industrial Automation
2 Port Pilot Operated Solenoid Valve AC100V 50/60Hz 1.0MPA for Dry Air and Industrial Automation
Specifications
Brand Name :
NBSANMINSE
Model Number :
VQ21 A1-1 G-C6
Place of Origin :
CHINA
MOQ :
10PCS
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Certification :
ISO9001
Price :
Negotiation
Payment Terms :
L/C,T/T
Material :
aluminum
Rated volage :
AC100V 50/60Hz
Pressure :
1.0MPA
Media :
Gas,Water,Air,oil,steam
Structure :
Control,Pilot
Body material :
Aluminum
Power :
Solenoid,Pneumatic
Application :
industrial,Automation Equipment
Description

2 Port Pilot Operated Solenoid Valve AC100V 50/60Hz 1.0MPA for Dry Air and Industrial Automation

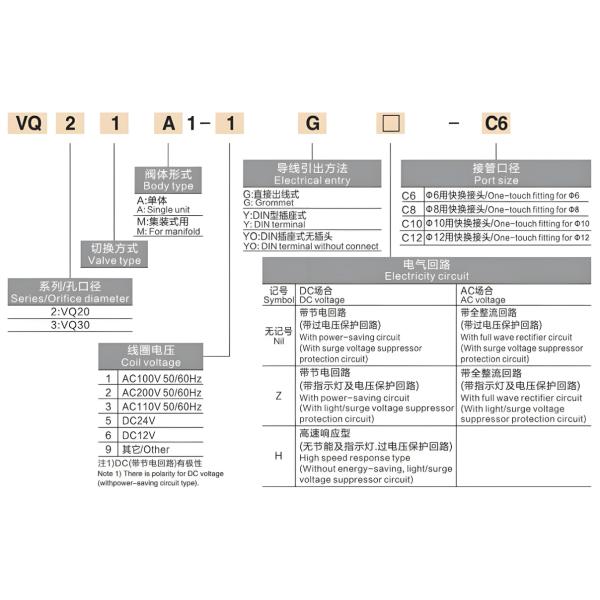

VQ 2 1 A 1 1

Series/Orifice diameter Valve type

Coil voltage
2:VQ20
A:Single unit 1 AC100V50/60Hz
3:VQ30 M:For manifold 2 AC200V50/60Hz


3 AC110V50/60Hz
5 DC24V
6 DC12V
9 Other
G □ C6
Electrical entry Electricity circuit Port size
G:Grommet symbol DCvoltage ACvoltage C6 One-touch fiting forΦ6
Y:DIN terminal Nil

With power-saving circuit

(With surge voltage suppressor protection circuit)

with full wave rectifier circuit

(With surge voltage suppressor protection circuit)

 C8 One-touch fiting forΦ8
YO:DIN terminal without connect Z

With power-saving circuit

(With light/surge voltage suppressor protection circuit)

with full wave rectifier circuit

(With light/surge voltage suppressor protection circuit)

 C10 One-touch fiting forΦ10

H High speed response type
(Without energy-saving, light/surge
voltage suppressor circuit)
C12 One-touch fiting forΦ12


2 Port Pilot Operated Solenoid Valve AC100V 50/60Hz 1.0MPA for Dry Air and Industrial Automation
