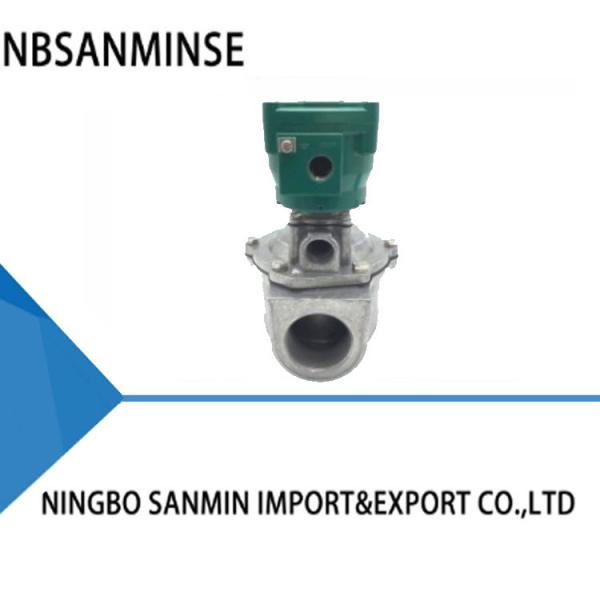

Aluminum Housing Explosion Proof Solenoid Pulse Valve 55°C 0.3-0.7Mpa 19W
Aluminum Housing Explosion Proof Solenoid Pulse Valve 55°C 0.3-0.7Mpa 19W
Specifications
Brand Name :
NBSANMINSE
Certification :
ISO9001
Place of Origin :
CHINA
Model Number :
DP2-NPT12
MOQ :
10PCS
Price :
Negotiate
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Pressure :
0.3-0.7Mpa
Temp :
- 25°C~ 55°C
Explosion-proof class :
CT6+Dust explosion protection
Design :
Pilot diaphragm type
Flameproof head :
aluminum housing (or stainless steel housing)
Body :
cast aluminum or (stainless steel)
power: :
19W
Cable interface :
NPT1/2
Diaphragm life :
more than 1 million blows
Description

Pressure:0.3-0.7Mpa
Temp:- 25°C~ 55°C
Explosion-proof class:CT6+Dust explosion protection
Design: Pilot diaphragm type
Flameproof head:Aluminum housing (or stainless steel housing)
Body: cast aluminum or (stainless steel)
power:19W
Cable interface:NPT1/2
Diaphragm life: more than 1 million blows

Explosion-proof pulse valve is an electromagnetic control valve specially designed for flammable and explosive environment. It is mainly used in industrial dust removal system and other scenes to prevent explosion risks by safely releasing pressure or controlling air flow
one
2. Its core functions include:

Pressure control and explosion-proof protection
Regulate the compressed air flow through the pulse opening and closing action to prevent explosion caused by pressure surge inside the dust collector
1. For example, an explosion-proof right-angle pulse valve can quickly respond to pressure changes to relieve pressure in a timely manner
1.
Wrap the electromagnetic coil with special resin material, completely isolate spark and explosive environment, and realize active explosion-proof
2.
Safety isolation of ignition source
Explosion-proof electromagnetic head is used to seal the power line by gluing to avoid looseness and sparks. It is applicable to the environment mixed with combustible gas or dust
2.
Comply with European directive 94/9/CE standard, with explosion-proof grade of Grade II to ensure stability under severe environment

Aluminum Housing Explosion Proof Solenoid Pulse Valve 55°C 0.3-0.7Mpa 19W
