MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01
MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01
Specifications
Brand Name :
NBSANMINSE
Model Number :
MHS3
Certification :
ISO9001
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Bore Size :
16 - 125 mm
Fluid :
Air
Temperature :
- 10 to 60 ℃
Repeatability :
± 0 . 01
Lubrication :
Not Required
Action :
Double Acting
Description

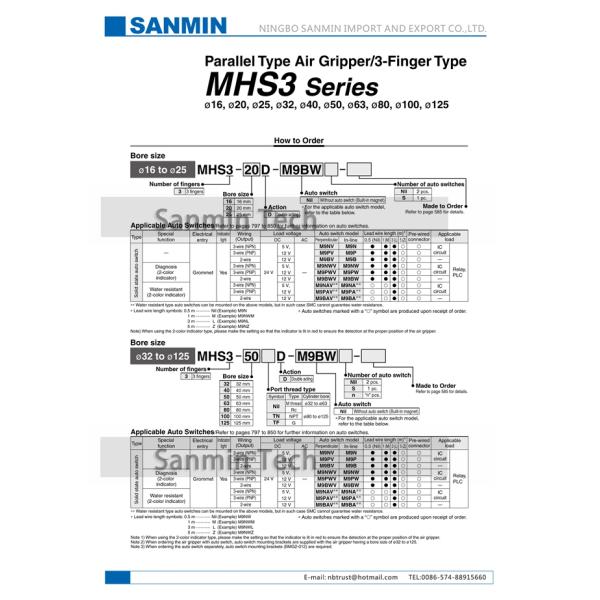

MHS3 Series Parallel Type Air Gripper / 3 - Finger Type φ 16 - φ 125 Similar SMC Type

Models / Specifications

Model : MHS3-16D , MHS3-20D , MHS3-25D , MHS3-32D , MHS3-40D , MHS3-50D , MHS3-63D , MHS3-80D , MHS3-100D , MHS3-125D

Bore Size : 16 , 20 , 25 , 32 , 40 , 50 , 63 , 80 , 100 , 125

Fluid : Air

Operating pressure (MPa) : 0 . 2 to 0 . 6 , 0 . 1 to 0 . 6

Ambient and fluid temperature ( ℃ ) : - 10 ro 60 ℃

Repeatability ( mm ) : ± 0 . 01

Max .Operating frequency (c.p.m.): 120 , 60 , 30

Lubrication : Not required

Action : Double acting

Component Parts

Description Material Note
Body Aluminum alloy Hard anodized
Piston Aluminum alloy Hard anodized
Cam Carbon steel Heat treated , Specially treated
Finger Carbon steel Heat treated , Specially treated
Cap Aluminum alloy Hard anodized
End Plate Stainless steel
Piston Bolt Stainless steel
Magnet -
Type C snap ring Carbon steel Phosphate coated
Piston seal NBR
Rod seal NBR
Gasket NBR
Gasket NBR
Cross recessed flat head screw Carbon steel Zinc chromated

MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01
