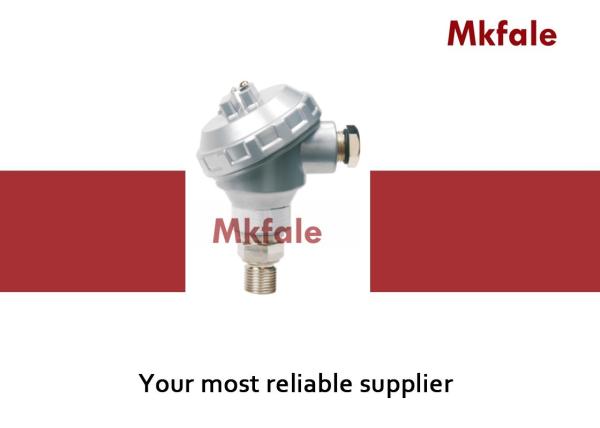

Pressure Transmitter SMJPB2000 Diffused - silicon Type Pressure Transmitter IP65

Technical Specification Table

SMJPB2000 SERIES PRESSURE TRANSMITTER :

SMJPB2000

Accuracy :

0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability

Measuring Range :

-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar

Linear :

Superior to 0.25%F S

1 year stability :

Superior to 0.25%F S

Response time :

≤ 10ms

Power supply :

24VDC (or 12 to 36VDC)

Output :

4 to 20mA(Or 0 to 10mA, 1 to 5V,0 to 5V,0 to 10V

Proof pressure :

150%F S

Burst pressure :

300%F S

Operating Temp :

-20 to +85℃

Compensated Temp :

-10 to +70℃

Storing Temp :

-40 to +125℃

Process connection :

M20*1.5 male or 1/2NPT male

Enclosure Protection :

IP65

Wetted parts :

SS304

Diaphragm material :

SS316L

Power Consume :

<0.5W(24VDC)

Weight :

380g

Why choose us

1: Customize according to your special request .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: 12-18month quality guarantee

5: Large stock for fast shipping .

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
