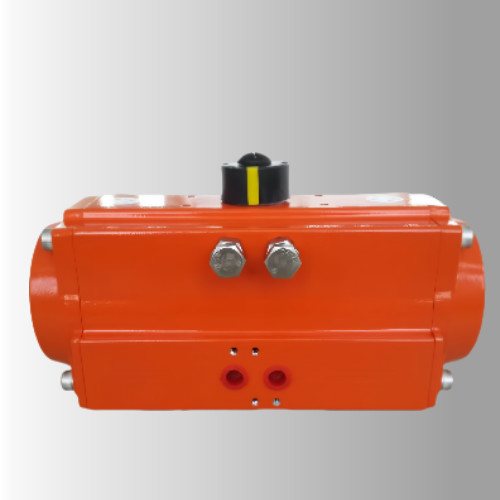

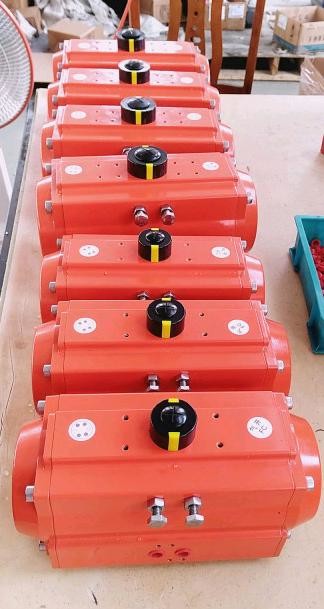

Epoxy Painting Rack And Pinion Actuator Aluminum Alloy Actuator For Butterfly Valve Ball Valve
Epoxy Painting Rack And Pinion Actuator Aluminum Alloy Actuator For Butterfly Valve Ball Valve
Epoxy Painting Rack And Pinion Actuator Aluminum Alloy Actuator For Butterfly Valve Ball Valve
Epoxy Painting Rack And Pinion Actuator Aluminum Alloy Actuator For Butterfly Valve Ball Valve
Epoxy Painting Rack And Pinion Actuator Aluminum Alloy Actuator For Butterfly Valve Ball Valve
Epoxy Painting Rack And Pinion Actuator Aluminum Alloy Actuator For Butterfly Valve Ball Valve
Specifications
Brand Name :
OEM
Model Number :
32mm to 400mm
Certification :
CE,ATEX,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
10-2000USD
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
Foam+Carton Box+Wooden Case
Name :
Rack And Pinion Actuator
Installation Valve :
butterfly valves,ball valves
Body :
Aluminum Alloy
Type :
Double Effect .Single Effect
Sizes Range :
AT32-AT400
Normal Temp :
-20℃-80℃
Description
Epoxy Painting Rack And Pinion Pneumatic Actuator For Butterfly Valves Ball Valves
Product Specifications
Attribute Value
Installation Valve Butterfly valves, Ball valves
Body Aluminum Alloy
Type Double Effect, Single Effect
Sizes Range AT32-AT400
Structure Rack And Pinion Pneumatic Actuator
Normal Temp -20℃ to 80℃
Main Features
  • Designed for ball valves and butterfly valves with low cost, compact design, and long working life
  • Available in single acting (spring return) or double acting configurations
  • Custom color options: orange, blue, black, dark gray (OEM colors available)
  • Working pressure: 0.3~0.8MPa
  • Bottom connection: ISO 5211 standard
  • Solenoid valve standard: Namur
  • Compatible accessories: limit switch box, solenoid valve, positioner
Technical Specifications
Material: Extruded Aluminum alloy
Rotary Angle: 0~90 degree
Structure: Rack and pinion rotary actuator
Working Pressure: 2~8bar
Surface Treatment: Hard anodizing
Working Temperature:
- Normal: -20ºC(-4°F) to 80ºC (+176°F)
- High: -15ºC(+5°F) to 150ºC (+302°F)
- Low: -40ºC(-104°F) to 80ºC (+176°F)
Connection: NAMUR, ISO5211 and DIN3337
Application: Ball valve, butterfly valve, and rotary machine
Color Options: Grey, black, sky blue, dark blue, red, orange
Product Features
AT series pneumatic actuators incorporate the latest technology with full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications. The extruded high-intensity aluminum body features a honed internal surface with hard anode oxygenation for durability and low friction.
Key advantages include compact construction, external stroke adjustment (±5°), and options for double acting or spring return (normally-open/normally-close) configurations. The pre-compressed load spring ensures safe mounting, while die-cast aluminum pistons and end caps provide strength with light weight.
Pneumatic Actuator Dimensions
Model A B C D H × I G N J K L M Air connection
ATO32 110 45 45 20 50 × 25 12 9 Æ36 M5 × 7.5 G1/8"
AT400 950 464 516 30 130 × 30 60 55 Æ254 Æ165 8-M16 × 25 M20 × 25 NAMUR G1/2"
Product Applications
AT series Pneumatic Actuators are suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions. Ideal for industrial automation in:
  • Electric power plants
  • Petrochemical facilities
  • Metallurgy operations
  • Oil and gas processing
  • Water treatment and drainage systems
  • Chemical processing plants
  • Mining operations
  • Food and pharmaceutical production
