OEM Two Way Actuator Aluminum Double Acting Actuator Pneumatic For Valves
OEM Two Way Actuator Aluminum Double Acting Actuator Pneumatic For Valves
OEM Two Way Actuator Aluminum Double Acting Actuator Pneumatic For Valves
OEM Two Way Actuator Aluminum Double Acting Actuator Pneumatic For Valves
OEM Two Way Actuator Aluminum Double Acting Actuator Pneumatic For Valves
OEM Two Way Actuator Aluminum Double Acting Actuator Pneumatic For Valves
Specifications
Brand Name :
OEM
Model Number :
DA32-DA400
Place Of Origin :
China
Certification :
CE.ATEX.SIL3
MOQ :
1pcs
Price :
10-2000USD
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 DAYS
Packaging Details :
Foam+Carton Box+Wooden Case
Name :
Two Way Actuator
Air Supply :
Clean And Dry Compressed Air
Power :
Pneumatic
Usage :
Pneumatic Actuator Control For Valves
Operating Pressure :
0.2-0.8MPa
Connection :
ISO 5211,DIN 3337
Seal Material :
NBR
Media :
Hydraulic Oil Or Water
Description
Two Way Pneumatic Actuator for Valves - Pneumatic Double Action Actuator
Product Specifications
Attribute Value
Air Supply Clean And Dry Compressed Air
Power Pneumatic
Warranty 1 Year
Usage Pneumatic Actuator Control For Valves
Operating Pressure 0.2-0.8MPa
Connection ISO 5211, DIN 3337
Seal Material NBR
Media Hydraulic Oil Or Water
Product Overview

The Double Action Pneumatic Actuator is a versatile and reliable product designed for precise control of valves. Featuring a rack and pinion structure, this actuator ensures smooth and efficient operation in various industrial applications.

With an operating pressure range of 0.2-0.8MPa, this double-action pneumatic actuator provides consistent and accurate control in different pressure environments. Constructed with high-quality aluminum body material, this actuator is durable and resistant to corrosion, ensuring a long service life even in challenging conditions.

Key Features
  • Rack and pinion structure for smooth operation
  • 1-year warranty for quality assurance
  • Standard connections: ISO 5211, DIN 3337
  • Compatible with hydraulic oil or water media
  • Operating temperature range: -20℃ to 80℃
  • Durable aluminum construction
  • NBR seal material for reliable performance
Technical Parameters

Operating Pressure: 0.2-0.8MPa

Body Color: Silver, black

Structure: Rack And Pinion

Usage: Pneumatic Actuator Control For Valves

Normal Temp: -20℃-80℃

Connection: ISO 5211, DIN 3337

Body Material: Aluminum

Warranty: 1 Year

Seal Material: NBR

Media: Hydraulic Oil Or Water

Applications

This double-acting pneumatic actuator is ideal for various industrial applications requiring precise valve control. Its certifications (CE, ATEX, SIL3) make it suitable for demanding environments where safety and reliability are paramount.

Common applications include:

  • Industrial process control systems
  • Pneumatic valve automation
  • Fluid control systems
  • Manufacturing automation

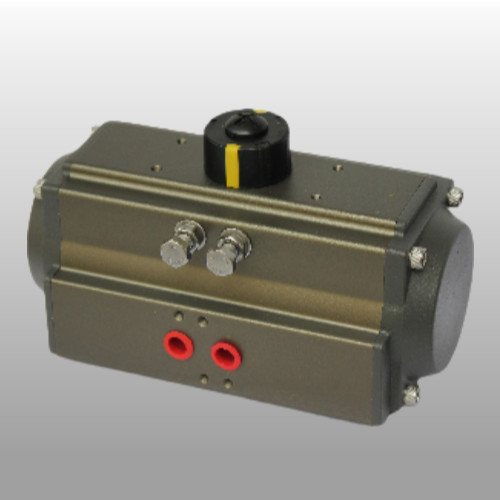

Product Images
OEM Two Way Actuator Aluminum Double Acting Actuator Pneumatic For Valves OEM Two Way Actuator Aluminum Double Acting Actuator Pneumatic For Valves
Support & Services

Our technical support team is available to assist with installation or operational questions. We offer maintenance programs, repair services, and staff training to ensure optimal performance of your pneumatic actuator.

Frequently Asked Questions
What is the brand name of this pneumatic actuator?

OEM

What are the available model numbers for this product?

DA32-DA400

Where is this pneumatic actuator manufactured?

China

What certifications does this product have?

CE, ATEX, and SIL3

What is the minimum order quantity for this pneumatic actuator?

1 piece
