OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
Specifications
Brand Name :
OEM
Model Number :
AT32-AT400
Certification :
CE,ATEX,ISO9001
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
Foam+Carton Box+Wooden Case
Price :
10-2000USD
Name :
Double Action Pneumatic Actuator
Material :
Aluminum Alloy
Structure :
Rack & Pinion
Application :
Automatic control valve
Power :
Pneumatic
Temperature :
Normal Temperature,Low Temperature,High Temperature
Media :
hydraulic oil or water
Color :
RAL5021.blue,gray,according to customer's requirements,customized
Size :
32mm to 400mm
Description
OEM Pneumatic Rack And Pinion Actuator Double Effect Valve Actuators
Product Specifications
AT series Pneumatic Actuators are designed for dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
AttributeValue
TypeDouble Action Single Action
MaterialAluminum Alloy
StructureRack & Pinion
ApplicationAutomatic control valve
PowerPneumatic
TemperatureNormal Temperature, Low Temperature, High Temperature
MediaHydraulic oil or water
ColorRAL5021.blue, gray, according to customer's requirements, customized
Size32mm to 400mm

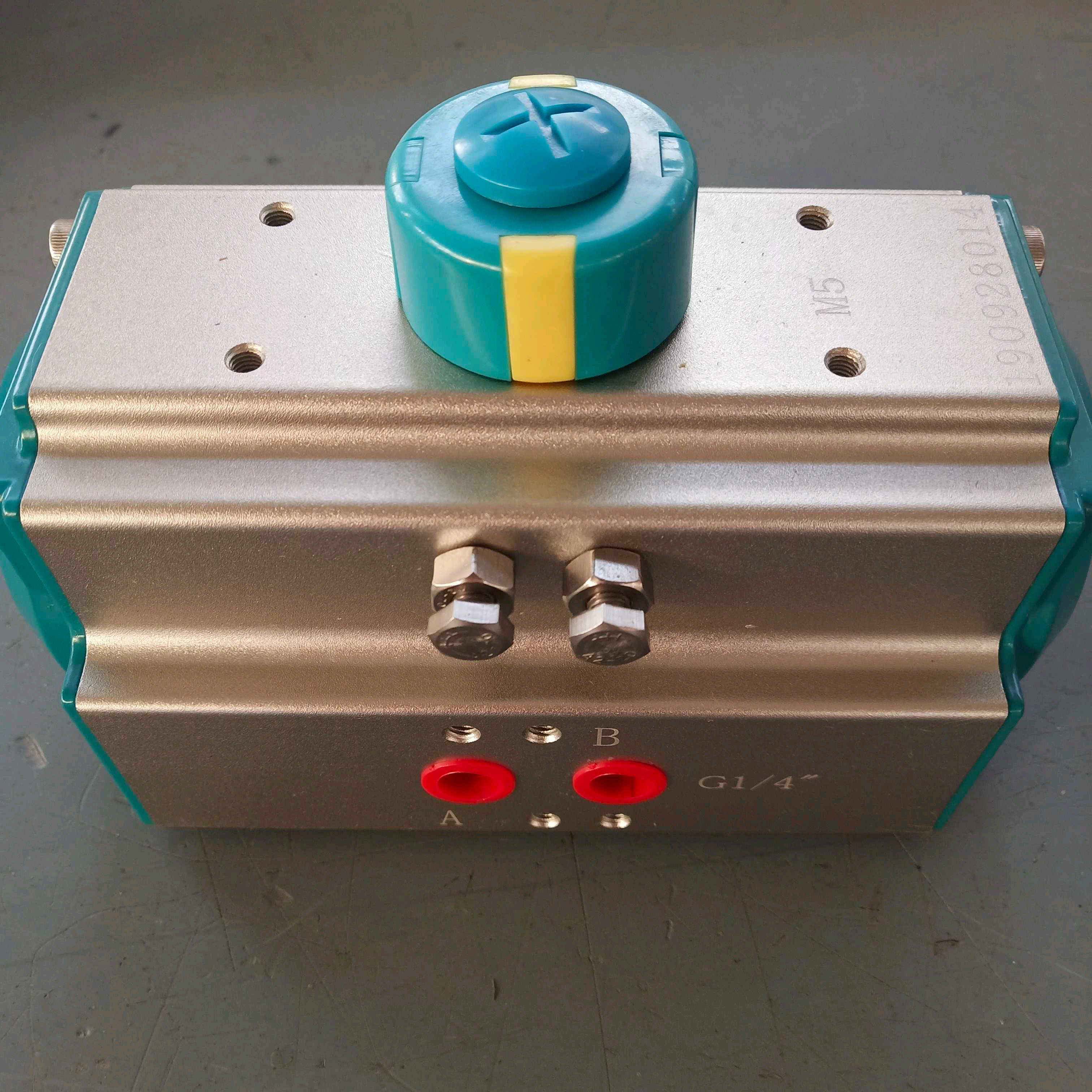

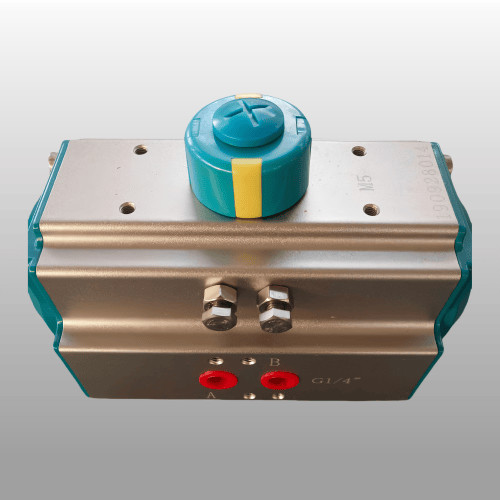

Model AT052 Rack And Pinion Pneumatic Actuator

High-performance double effect valve actuators designed for precision control in industrial applications.

Key Specifications
MaterialExtruded Aluminum alloy
Rotary Angle0~90 degree
StructureRack and pinion rotary actuator
Working Pressure2~8bar
Surface TreatmentHard anodizing
Working TemperatureNormal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F)
High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F)
Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F)
ConnectionNAMUR, ISO5211 and DIN3337
ApplicationBall valve, butterfly valve, and rotary machine
Color OptionsGrey, black, sky blue, dark blue, red, orange
Product Features
  • Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
  • Extruded high-intensity aluminum body with hard anodized coating for durability
  • Low friction coefficient and swift performance
  • Compact, modern construction with multiple specifications
  • High-quality bearings for low friction, high cycle life, and quiet operation
  • External stroke adjustment bolts for precise ±5° adjustment
  • Available in double acting and single acting (spring return) models
  • Multi-function indicator with NAMUR for easy accessory mounting
  • Pre-compressed load spring for safe mounting and tear down
  • Die-cast aluminum pistons and end caps for strength and light weight
  • Various O-ring materials available for different temperature requirements
  • Direct solenoid valve mounting without connecting plank
Technical Dimensions
ModelABCDH × IGNJKLMAir connection
ATO3211045452050 ×25129Æ36 M5 ×7.5 G1/8 "
AT04012260652080 ×301411Æ50Æ36M6 ×10M5 ×7.5NAMUR G1/4 "
AT05214772722080 ×301411Æ50Æ36M6 ×10M5 ×7.5NAMUR G1/4 "
AT06317288832080 ×301814Æ70Æ50M8 ×13M6 ×10NAMUR G1/4 "
AT075184100952080 ×302014Æ70Æ50M8 ×13M6 ×10NAMUR G1/4 "
AT0832041091032080 ×302117Æ70Æ50M8 ×13M6 ×10NAMUR G1/4 "
AT0922621171092080 ×302217Æ70Æ50M8 ×13M6 ×10NAMUR G1/4 "
AT1052681331212080 ×302622Æ102Æ70M10 ×16M8 ×13NAMUR G1/4 "
AT1253011551432080 ×302722Æ102Æ70M10 ×16M8 ×13NAMUR G1/4 "
AT1403941731522080 ×303227Æ125Æ102M12 ×20M10 ×16NAMUR G1/4 "
AT1604581981742080 ×303427Æ125Æ102M12 ×20M10 ×16NAMUR G1/4 "
AT19052823220630130 ×304036Æ140 M16 ×24 NAMUR G1/4 "
AT21053225722630130 ×304036Æ140 M16 ×24 NAMUR G1/4 "
AT24066029126030130 ×305046Æ165 M20 ×25 NAMUR G1/4 "
AT27074033029430130 ×305046Æ165 M20 ×25 NAMUR G1/2 "
AT30079835433630130 ×306046Æ165 M20 ×25 NAMUR G1/2 "
AT35088040838530130 ×306046Æ165 M20 ×25 NAMUR G1/2 "
AT40095046451630130 ×306055Æ254Æ1658-M16 ×25M20 ×25NAMUR G1/2 "

OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators OEM Double Action Pneumatic Actuator Aluminum Alloy Rack And Pinion Actuators
