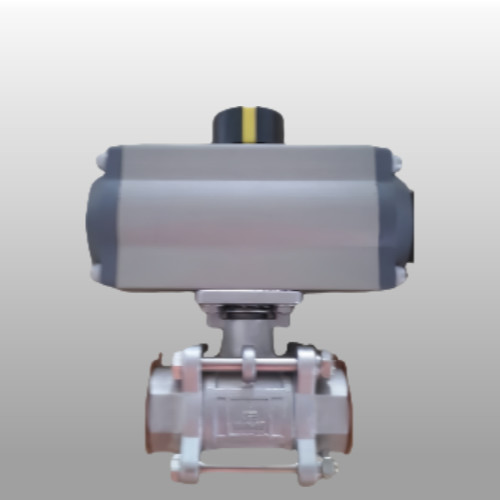

90 Degree Pneumatic Ball Valves Aluminum Alloy Control Ball Valve
90 Degree Pneumatic Ball Valves Aluminum Alloy Control Ball Valve
90 Degree Pneumatic Ball Valves Aluminum Alloy Control Ball Valve
90 Degree Pneumatic Ball Valves Aluminum Alloy Control Ball Valve
90 Degree Pneumatic Ball Valves Aluminum Alloy Control Ball Valve
90 Degree Pneumatic Ball Valves Aluminum Alloy Control Ball Valve
Specifications
Brand Name :
OEM
Model Number :
AT32-AT400
Certification :
CE,ATEX,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
10-2000USD
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
Foam+Carton Box+Wooden Case
Name :
Pneumatic Ball Valve
Type :
Double action Spring return
Material :
Aluminum Alloy
Structure :
Rack & Pinion
Application :
Automatic control valve
Temperature :
Normal Temperature,Low Temperature,High Temperature
Media :
hydraulic oil or water
Color :
RAL5021.blue,gray,according to customer's requirements,customized
Size :
32mm to 400mm
Description
90 Degree Pneumatic Actuator Aluminum Alloy Ball Valve
Product Overview

High-performance 90° pneumatic actuator designed for ball valves, featuring aluminum alloy construction and rack & pinion mechanism for reliable automatic control.

Key Specifications
Attribute Value
Type Double action / Spring return
Material Aluminum Alloy
Structure Rack & Pinion
Application Automatic control valve
Power Pneumatic
Temperature Range Normal, Low, and High Temperature variants
Media Hydraulic oil or water
Color Options RAL5021 blue, gray, or customized colors
Size Range 32mm to 400mm
Technical Features
  • Conforms to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
  • Extruded high-intensity aluminum body with hard anodized coating
  • Compact, modern construction with multiple specifications
  • High-quality bearings for low friction and silent operation
  • External stroke adjustment bolts for precise ±5° adjustment
  • Available in double acting and single acting (Spring-Return) models
  • Multi-function indicator with NAMUR for easy accessory mounting
  • Pre-compressed load spring for safe mounting and tear down
  • Die-casting aluminum pistons and end caps for strength and light weight
  • Various O-ring materials available for different temperature ranges
Detailed Specifications

Working Pressure: 2~8bar (0.3~0.8MPa)

Surface Treatment: Hard anodizing

Temperature Ranges:

- Normal: -20°C to +80°C (-4°F to +176°F)
- High: -15°C to +150°C (+5°F to +302°F)
- Low: -40°C to +80°C (-104°F to +176°F)

Connections: NAMUR, ISO5211 and DIN3337

Applications

AT series Pneumatic Actuators are suitable for various demanding environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions. Common applications include:

  • Electric power plants
  • Petrochemical industry
  • Metallurgy
  • Oil and gas
  • Water treatment
  • Chemical processing
  • Mining
  • Construction
  • Pharmaceutical and food industries
  • Scientific research
