Airtac Type 5/3 Way Pneumatic Pilot Valve 4A330C-10 4A330E-10 4A330P-10
Airtac Type 5/3 Way Pneumatic Pilot Valve 4A330C-10 4A330E-10 4A330P-10
Airtac Type 5/3 Way Pneumatic Pilot Valve 4A330C-10 4A330E-10 4A330P-10
Airtac Type 5/3 Way Pneumatic Pilot Valve 4A330C-10 4A330E-10 4A330P-10
Specifications
Brand Name :
DOPOW
Model Number :
4A330C-10
Certification :
CE ISO9001
Place of Origin :
Yueqing China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100000PCS/MO
Delivery Time :
5 working days after receiving the customers' payment
Packaging Details :
Wooden box，Standard carton packaging
Product Name :
Pneumatic Solenoid Valve
Valve Type :
5/3 Way, Single Solenoid
Working pressure :
0.15-0.8MPa
Port size(Note) :
In=Out=3/8'' Exhaust=1/4''
Working Temperature :
0℃~60℃
Power: :
Pneumatic
Action: :
Direct Acting
Material :
Aluminum
Description

4A330C-10 4A330E-10 4A330P-10 Airtac Type 5/3 Way Pneumatic Pilot Valve

Air pilot operated pneumatic valves control compressed air within pneumatic systems; they are used to signal valves, cylinders or other pneumatic devices. Pneumatic air pilot valves are either single or dual air pilot control with or without priority; the priority function ensures a default position should two pilot control signals arrive at the same time. Pilot operated pneumatic valves are available as a 3 or 5 way valve configuration with 1/8'', 1/4'', 3/8'' or 1/2'' threaded ports.


Technical Data of 4A300 Series Pneumatic Air Pilot Valve:

Model
4A310-08
4A320-08
4A330C-08
4A330E-08
4A330P-08
4A310-10
4A320-10
4A330C-10
4A330E-10
4A330P-10
Fluid
Air (to be filtered by 40 μm filter element)
Acting
exterior control
Port Size
in=out=exhaust=1/4''
in=out=3/8'', exhaust=1/4''
Orifice Size
4A310-10, 4A320-10: 28.0mm² (Cv=1.65)
4A330C-10: 21.3mm² (Cv=1.25)
Vlave Type
5 way 2 position
5 way 3 postion
5 way 2 position
5 way 3 position
Operating Pressure
0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure
1.2MPa (175psi)
Temperature
-20 to +70℃
Body Material
Aluminum Alloy
Max Frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec

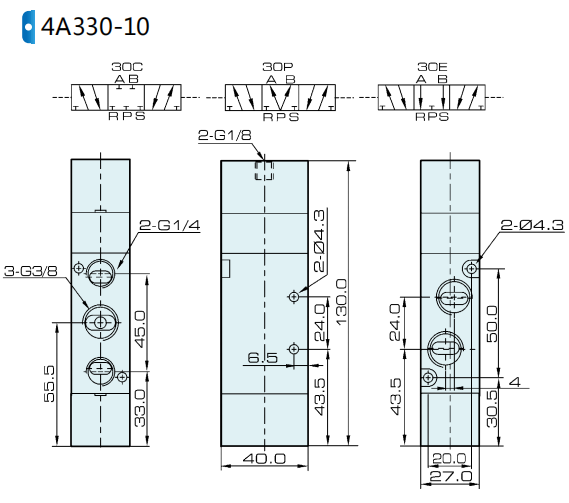

Dimension of 4A330C-10 Pneumatic Air Pilot Valve:

Airtac Type 5/3 Way Pneumatic Pilot Valve 4A330C-10 4A330E-10 4A330P-10
