Specifications
Brand Name :
Henger
Model Number :
HE-HPF
Certification :
CCS,ABS,BV,LR,CCS BV GL
Place of Origin :
China
MOQ :
1PC
Price :
USD 50-3000 PER PIECE
Payment Terms :
T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability :
10PCS PER WEEK
Delivery Time :
7-15 WORKING DAYS
Packaging Details :
NUDE/PALLET
Application :
salvage,heavy lifting,ship launching,landing
Material :
Natural Rubber
Color :
Black
Size :
Customer's Ruquirement
Lifespan :
8~10 Years
Standard :
ISO14409
Layer :
5/ 6/ 7 / 8 / 9 / 10 layers
Warranty :
18 Months
Type :
Pnematic
Description

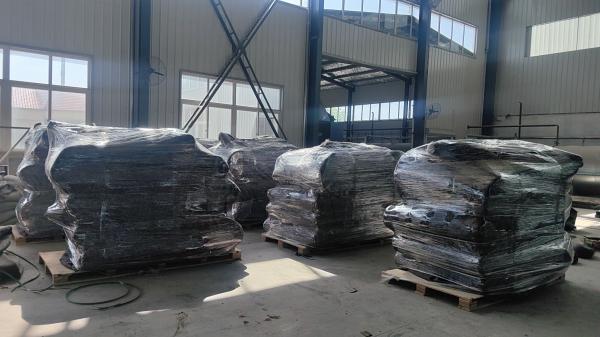

Marine Ship Launching Inflatable Rubber Airbag

Ship Launching Marine Rubber Roller Airbag Introduction

Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.

Marine Ship Launching Inflatable Rubber Airbag

Ship Launching Marine Rubber Roller Airbag Specifications

Diameter Working Pressure Working height Bearing capacity per unit length
KN/m Ton/m
D=1.0m 0.20Mpa 0.6m 125.76 12.82
0.5m 157.16 16.02
D=1.2m 0.17Mpa 0.7m 133.61 13.62
0.6m 160.3 16.34
D=1.5m 0.13Mpa 0.9m 112.63 12.5
0.8m 143.03 14.58
0.7m 163.43 16.66
D=1.8m 0.11Mpa 1.1m 120.96 12.33
1.0m 138.22 14.09
0.9m 155.59 15.86
0.8m 172.85 17.62
0.7m 190.22 19.39
D=2.0m 0.10Mpa 1.2m 125.76 12.82
1.1m 141.46 14.42
1.0m 157.16 16.02
0.9m 172.85 17.62
0.8m 188.64 19.23

Ship Launching Marine Rubber Roller Airbag Application

1.Ship Launching & Upgrading

2.Weight Lifting & Moving

3.Buoyancy Aid & Salvage

Marine Ship Launching Inflatable Rubber Airbag

Ship Launching Marine Rubber Roller Airbag Features

1. Long lifespan

2. Movable and reusable

3. Saving investment costs

4. Saving labor and time

Marine Ship Launching Inflatable Rubber Airbag

Upgrade of the airbag end fittings

The material and structure were reformed respectively :

1. Material: The upgraded end fittings are made of stainless steel, which is more resistant to corrosion than the previous hot-dip galvanized material.


2. Structurally: Technical changes have been made to the structure design of the end, and the air retention performance has been greatly improved. After testing, our airbags can be air-tight for 24 hours.

Marine Ship Launching Inflatable Rubber Airbag

FAQ

1. Minimum Order Quantity ( MOQ): 1 Pcs

2. Delivery time: 7 days ( depends on the quantity of order)

3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.

4. Production standard: ISO14409 & GB/T 3795-1996

5. Expected lifespan: 10-15 years.

6. Warranty period: 24 Monthes

7. Factory direct selling of Marine rubber airbags Please inquiry our salespersons for the best price.
