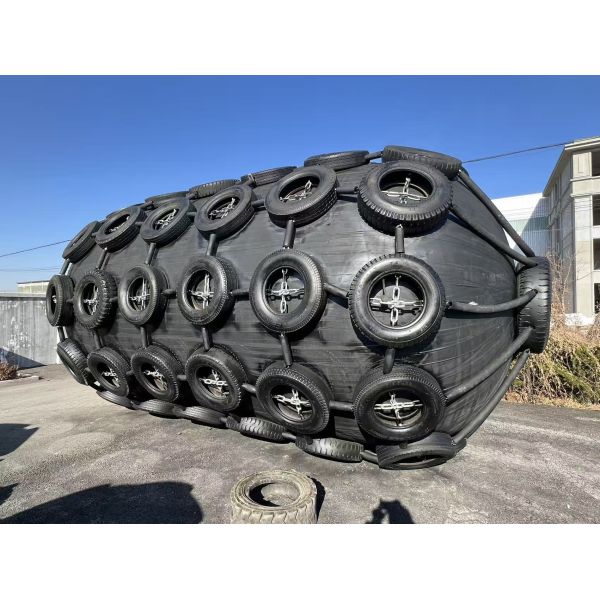

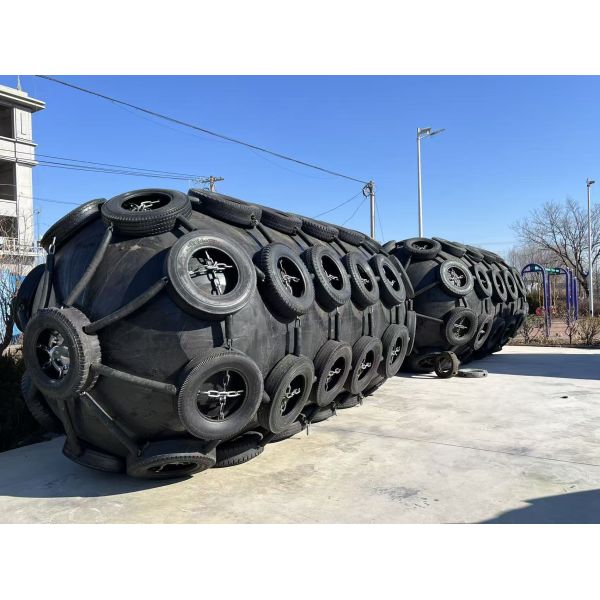

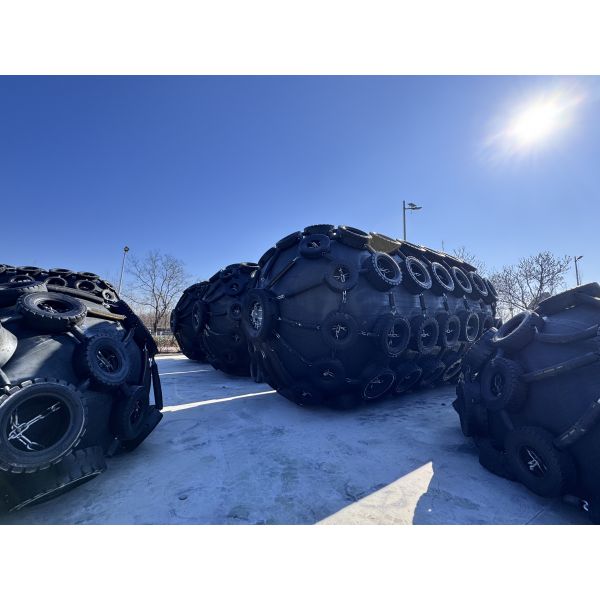

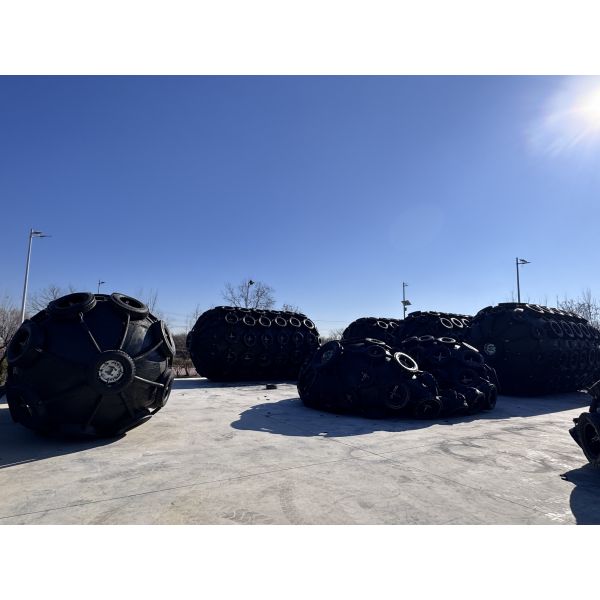

Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Specifications
MOQ :
1
Delivery Time :
5-8 work day
Noumenon Weight :
23 Kg
Payment Terms :
L/C,D/P,D/A,Western Union,T/T
Model Number :
FFF
Pressure :
50kpa & 80kpa
Brand Name :
Henger
Structure :
Inflatable
Price :
$806
Weight with Jacket :
35 Kg
Supply Ability :
500 Pieces/Month
Certification :
ABS, CCS, BV, LR, DNV
Material :
Rubber
Place of Origin :
China
Compression Amount :
60%
Packaging Details :
Pallet
Description
Pneumatic Rubber Fender Low Rolling Resistance for Floating Fender Applications
Qingdao Henger Shipping Supplies Co., Ltd, located in the coastal city of Qingdao, is a leading high-tech enterprise specializing in premium marine products including marine rubber fenders, marine airbags, navigation marks, and marine buoys. Our commitment to quality is underscored by ISO 9001:2008 certification and IACS approvals from renowned classification societies including CCS, BV, GL, ABS, and LR.
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Inflatable Rubber Fender Introduction
The "Yokohama Type Inflatable Rubber Fender" was developed in 1958. These fenders have evolved alongside ship technology to accommodate progressively larger vessels including VLCCs, ULCCs, large gas carriers, and bulk carriers.
Floating Inflatable Fenders are used worldwide for ship-to-ship (STS) transfer operations, terminals, and various marine applications. Millions of fenders have been supplied globally for both ship-to-ship and ship-to-dock operations.
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Inflatable Rubber Fender Technical Parameters
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Fender Size Compression Amount (60%) Noumenon Weight (Kg) Weight with Protective Jacket (Kg)
D (mm) | L (mm) Reaction (KN) | Energy Absorption (KNm) 23 35
500 | 1000 64 | 6
* There are inflatable fenders of 0.05Mpa & 0.08Mpa internal pressure available. Contact our service consultant for details and competitive prices. * Fender size and accessories can be customized according to customer requirements.
Henger Inflatable Rubber Fender Advantages
Safety and Reliability: Constructed with multiple layers of strong tire-cord, our fenders are resistant to pressure and cutting. Large-size fenders include safety valves for accidental over-pressure situations.
No Deterioration or Variation in Performance: Utilizing the compressive elasticity of air, our fenders show no performance deterioration due to fatigue.
Advantages at Inclined Berthing: Energy absorption remains consistent at inclined compression up to 15 degrees.
Most Cost Competitive System: Uniform surface pressure makes our fenders ideal for LNG-ship terminals and other sensitive applications.
Soft Reaction Force: Our fenders provide gentle protection for ships and mooring facilities, even under excess load conditions.
Lower Mooring Forces: The gradual increase in reaction force makes our fenders particularly effective in rough weather conditions.
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
Inflatable Rubber Fender Applications
  • Large crude oil carriers (VLCC)
  • Container vessels
  • Offshore sea task platforms
  • Large shipyards and docks
  • Large ships and cruise ships
  • Army harbor docks
  • Large bridge piers
Pneumatic Rubber Fender with Low Rolling Resistance and 50kpa & 80kpa Pressure for Custom Floating Fender Applications
