Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Rubber Pneumatic Marine Fender Protection for Pressure Situations
Specifications
Model Number :
PF
Material :
Rubber
MOQ :
1pc
Delivery Time :
10 days
Color :
Black,grey
Brand Name :
Henger
Performance :
High Performance
Packaging Details :
Pallets, Nude, iron frames, etc
Payment Terms :
30% TT in advance +70% balance before delivery,
Warranty :
2 Year
Installation :
Easy To Install
Certificate :
ABS,BV,CCS,DNV
Certification :
BV CCS DNV
Price :
USD 300
Size :
Customized
Supply Ability :
60 pcs per month
Shape :
Cylinder
Pressure :
High Pressure
Place of Origin :
China
Type :
50/80Kpa
Description

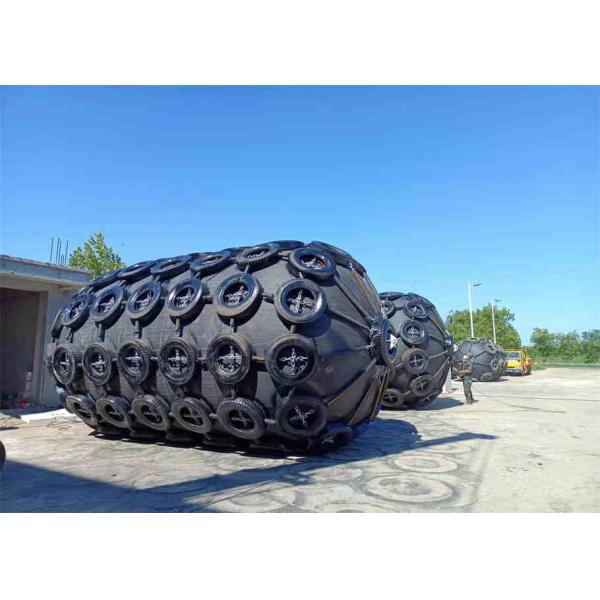

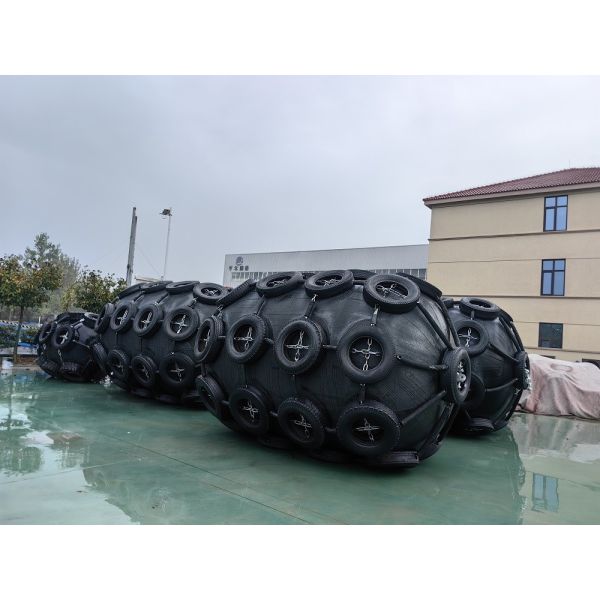

Rubber Pneumatic Marine Fender Protection for Pressure Situations

Product Description

INTRODUCTION OF MARINE PNEUMATIC RUBBER FENDER

Marine fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layers of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms
Rubber Pneumatic Marine Fender Protection for Pressure Situations

Pneumatic rubber fender Parameter

Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship
For Small & Middle Size Ship

Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)
200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5
For Large-tonnage Ship

Rubber Pneumatic Marine Fender Protection for Pressure SituationsRubber Pneumatic Marine Fender Protection for Pressure Situations

Pneumatic Rubber Fender Features

The rubber content can reach 60%

Our rubber content has been upgraded from 54% of the same industry standard at the beginning to 56%. In order to improve the quality of our products again and make you or your customers more competitive in the market, we have now increased the rubber content to 60%. In this way, the flexibility of the rubber fender will be greatly improved, and the puncture resistance will also be enhanced. We can provide the highest standard SGS certificate in the industry to prove our quality.

Certificate and warranty

We have been engaged in the marine industry for more than 20 years. We not only have BV, ABS, LR, CCS and other certificates, our products are in full compliance with international standards, and all our products can provide factory inspection reports. For so many years, we have maintained a complete warranty and after-sales service, the warranty period can be as long as 24 months.
