Specifications
Payment Terms :
L/C,D/A,D/P,Western Union,T/T,MoneyGram
Diameter Range :
0.8-2.5M
Effective Length :
10-24m
Brand Name :
Henger
Model Number :
HE0015
Certification :
ISO1735,CCS, ABS, LRS, BV, GL, DNV, NK
Place of Origin :
China
MOQ :
1pcs
Delivery Time :
7-15 working days
Packaging Details :
Normal packing,Nude Packing/As Requirement
Test Pressure :
0.07-0.26 MPa
Working Pressure :
0.06-0.24 MPa
Cord Layers :
4-12 layers
Material :
Natural Rubber, Mixed rubber with natural rubber and carbon
Description
Shipping Launching Inflatable Rubber Airbag For Vessel
Product Overview

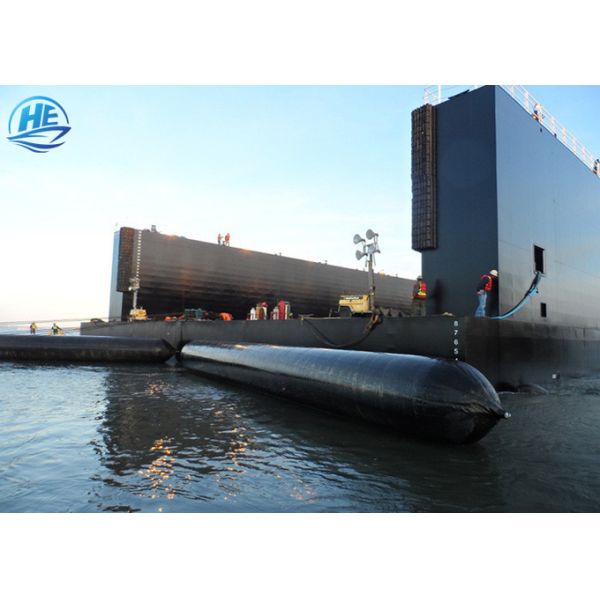

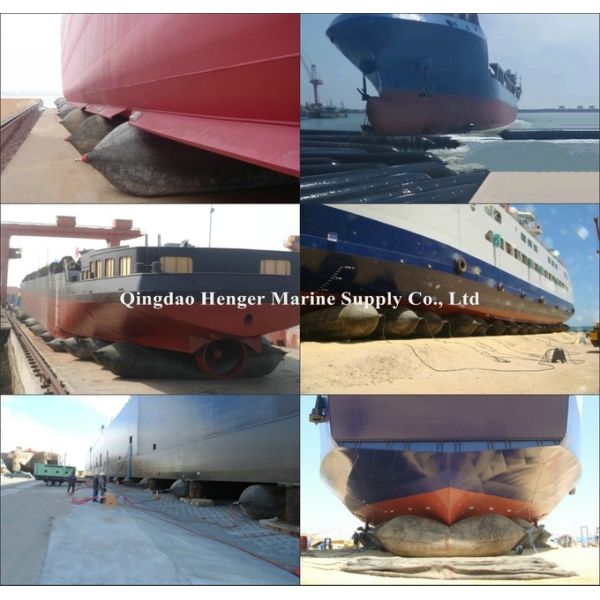

Marine airbags, also known as roller bags, launching air balloons, inflatable marine airbags, air lift bags, and salvage bags, are specialized marine rubber air bags designed for launching marine vessels, ship landing or haul-outs. These versatile products are widely used in loading, floating, lifting, moving sunken ships, and salvaging stranded boats.

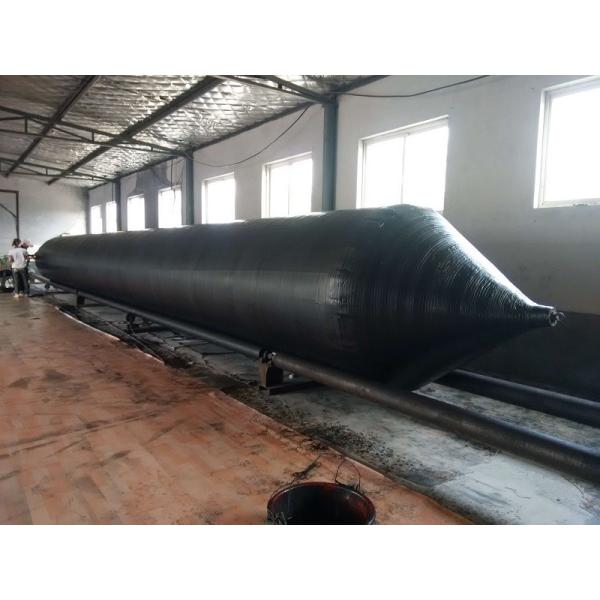

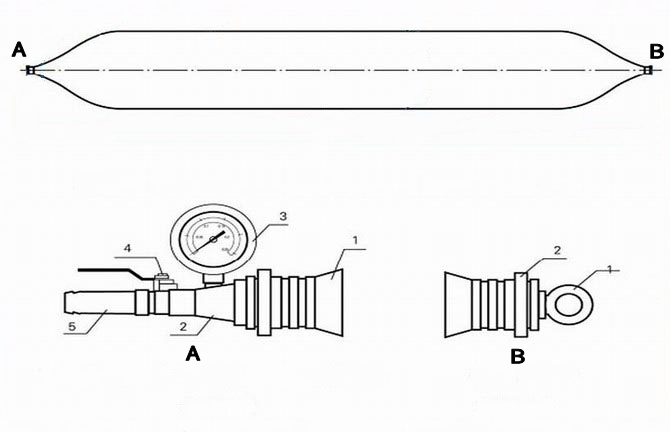

Constructed from heavy-duty synthetic-tire-cord layers with rubber layers in a long cylindrical balloon shape, "HENGER" airbag structure consists of outer rubber + synthetic cord reinforced rubber layers. The characteristic shape features a central cylindrical body with tapered ends on both sides. Available cord layers: 4, 5, 6, 7, 8, 9, 10, 11, 12 layers.

Shipping Launching Inflatable Rubber Airbag For Vessel
Technical Specifications
Diameter (m) 1.0 1.2 1.5 1.8 2.0
Medium Pressure (4-5)
Test Pressure 0.14-0.16 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09
Working Pressure 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09 0.06-0.08
High Pressure (6-8)
Test Pressure 0.22-0.26 0.20-0.24 0.15-0.20 0.13-0.16 0.12-0.15
Working Pressure 0.20-0.24 0.17-0.22 0.13-0.18 0.11-0.14 0.10-0.13
Standard Sizes

Customized sizes are also available upon request.

Diameter (m) Effective Length (m) Layer Pressure (MPa)
1.0105~60.07~0.10
1.0125~60.07~0.10
1.0155~60.07~0.10
1.2105~60.08~0.12
1.2125~60.08~0.12
1.2155~60.08~0.12
1.5125~80.08~0.16
1.5155~80.08~0.16
1.5185~80.08~0.16
1.5204~80.08~0.16
1.5245~80.08~0.16
1.8125~80.08~0.15
1.8155~80.08~0.15
1.8185~80.08~0.15
1.8205~80.08~0.15
1.8245~80.08~0.15
2.0186~100.08~0.18
2.0206~100.08~0.18
2.0246~100.08~0.18
2.5187~100.07~0.13
2.5207~100.07~0.13
2.5247~100.07~0.13
Product Advantages
  • High Bearing Capacity
  • High Kneading-resistance Capability
  • New Anti-explosion Design of End Part
  • High strength galvanized anti-release structure
  • Optimizing Structure Configuration
  • Good Abrasion-resistance Performance and High Ageing Resistance
  • Higher Flexibility and Shock Absorption Capability
Shipping Launching Inflatable Rubber Airbag For Vessel

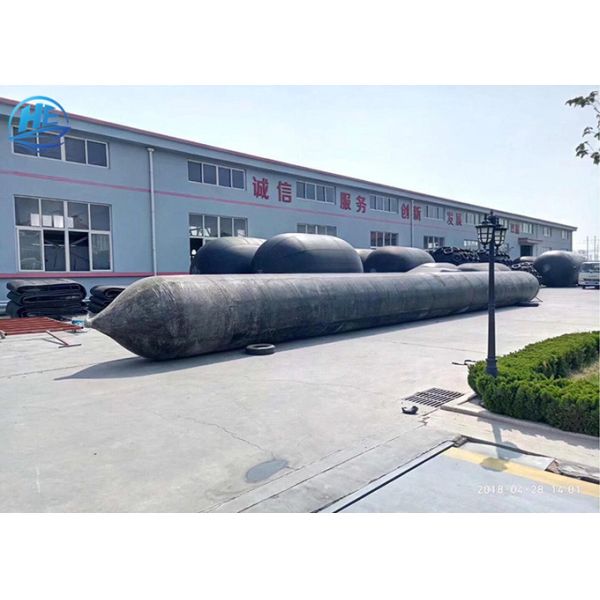

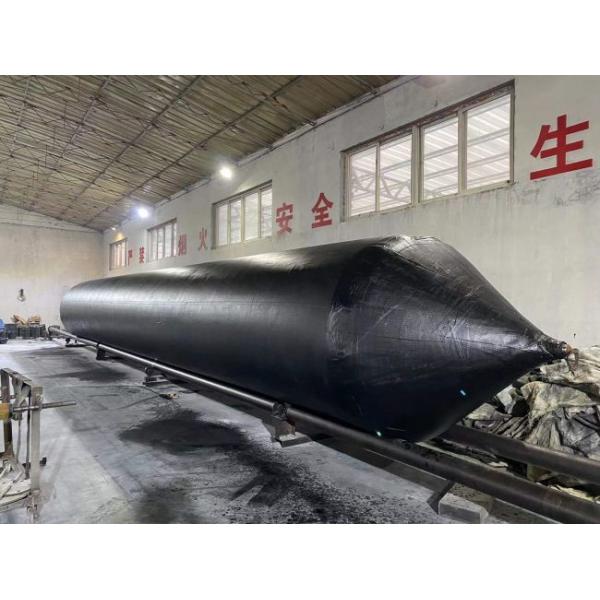

Our Manufacturing Facility

Our factory maintains high productivity and large inventory capabilities. All production equipment and testing procedures strictly adhere to international standards. We welcome customer visits and accept third-party testing to ensure quality assurance.

Shipping Launching Inflatable Rubber Airbag For Vessel
Our Services

Why customers choose us:

  • Value for Money - Best pricing based on excellent quality
  • Unrivalled Expertise - First-rate product quality and service
  • Extended Product Lifespan - 10-15 years service life with quality warranty
  • Professional After-sales Service - 24-hour response for product inquiries
  • Comprehensive Support - Free repair tool set provided with purchase
Shipping Launching Inflatable Rubber Airbag For Vessel
Company Profile

Qingdao Henger Shipping Supplies Co., Ltd, located in the beautiful coastal city of Qingdao, is a high-tech enterprise specializing in manufacturing marine products including marine rubber fenders, marine airbags, navigation marks, and marine buoys. The company integrates manufacturing, research and innovation, and technical services.

All products are ISO 9001-2008 certified and hold IACS quality authentication from leading classification societies including CCS, BV, GL, ABS, and LG. With strong technological foundations, advanced manufacturing techniques, complete facilities, and well-equipped testing equipment, Qingdao Henger Marine Supplies is committed to becoming a top-ranking international marine products manufacturer, providing high-quality products and perfect service while ensuring global marine safety through mutually beneficial cooperation.
