Floating Rubber Marine Airbag 8 Layers D2 L12m
Floating Rubber Marine Airbag 8 Layers D2 L12m
Floating Rubber Marine Airbag 8 Layers D2 L12m
Floating Rubber Marine Airbag 8 Layers D2 L12m
Floating Rubber Marine Airbag 8 Layers D2 L12m
Floating Rubber Marine Airbag 8 Layers D2 L12m
Specifications
Brand Name :
Henger
Model Number :
016
Certification :
CCS BV GL
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50pcs week
Delivery Time :
5days
Packaging Details :
paller
Product name :
Marine Airbag
Material :
Natural Rubber
Color :
Black,Yellow/Orange/Custom
Size :
Customized Size
Application :
salvage,ship launching
Packing :
Pallet
Usage :
Ship Salvage
Warranty :
12 Months
Layer :
4 and 6 and 8 etc
Design using life :
6-10 years
Description

D2 L12m 8 Layers Floating Rubber Marine Airbag

1. Marine Rubber Airbag Introduction

6000 years ago, our ancestor begin to use log-rolling method to lift and move weights, which is still widely used in daily production and actual life nowadays. Marine rubber airbag is designed with soft rubber to lift and carry weights, based on log-rolling method.

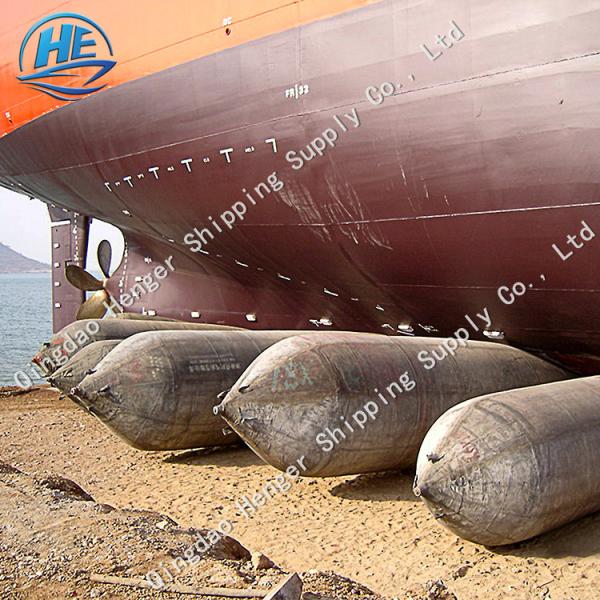

Marine rubber airbag is an innovative product of Chinese own proprietary intellectual property rights. It has wide application like ship launching & upgrading, caisson lifting & moving, heavy weights lifting, underwater-engineering buoyancy aid. The marine rubber airbag is not limited to space and heavy machinery

Floating Rubber Marine Airbag 8 Layers D2 L12m

2. Technical Requirement

According to CB/T 3795--1996, marine rubber fender should meet the following requirements.

  • Dimensional Deviation:

Diameter & Effective Length Deviation: ±2%

Total Length Deviation: ±4%

  • Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.
  • Safety Factor: >4.5
  • Air Tightness: depressurization < 5% after 1hour inflation
  • Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.
  • Anti-explosion design of end part.

Floating Rubber Marine Airbag 8 Layers D2 L12m

3. Specifications

Diameter(m) 1.0 1.2 1.5 1.8 2.0
Medium Pressure
(4-5)		 Test Pressure 0.14-0.16 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09
Working Pressure 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09 0.06-0.08
High Pressure
(6-8)		 Test Pressure 0.22-0.26 0.20-0.24 0.15-0.20 0.13-0.16 0.12-0.15
Working Pressure 0.20-0.24 0.17-0.22 0.13-0.18 0.11-0.14 0.10-0.13

4. Some normal sizes of our Marine Rubber Airbag, customized sizes are also available

Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13

5. FAQ

1."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
2."What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.
