Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
Specifications
Brand Name :
Henger
Model Number :
HE-HPF
Certification :
CCS,ABS,BV,LR,CCS BV GL
Place of Origin :
China
MOQ :
1PC
Price :
USD 50-3000 PER PIECE
Payment Terms :
T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability :
10PCS PER WEEK
Delivery Time :
7-15 WORKING DAYS
Packaging Details :
NUDE/PALLET
Application :
salvage,heavy lifting,ship launching,landing
Material :
Natural Rubber
Color :
Black
Size :
Customer's Ruquirement
Lifespan :
8~10 Years
Standard :
ISO14409
Layer :
5/ 6/ 7 / 8 / 9 / 10 layers
Warranty :
18 Months
Type :
Pnematic
Description

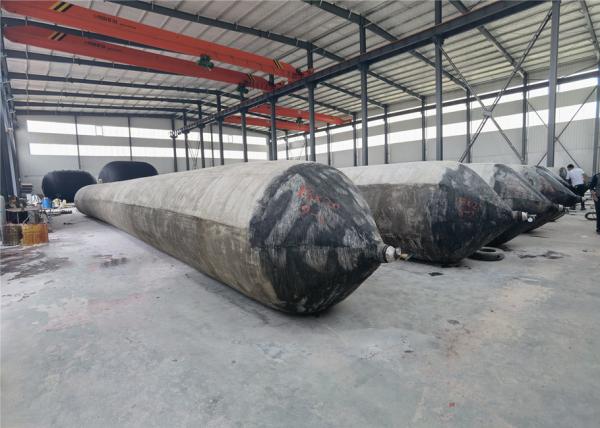

Inflatable Heavy Lifting Marine Rubber Airbag

Marine Rubber Airbag Introduction

Marine Rubber Airbag also known as rubber airbag, ship air bags, ship launching airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.

Marine Rubber Airbag are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.

Marine Rubber Airbag are very popular with shipyard, ship owner, and marine supplies.

Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic

Marine Rubber Airbag Advantages of Concrete Pontoon

1. Long lifespan

2. Movable and reusable

3. Saving investment costs

4. Saving labor and time

Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic

Marine Rubber Airbag Specifications

Diameter(m) 1.0 1.2 1.5 1.8 2.0

Medium Pressure

(4-5)

 Test Pressure 0.14-0.16 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09
Working Pressure 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09 0.06-0.08

High Pressure

(6-8)

 Test Pressure 0.22-0.26 0.20-0.24 0.15-0.20 0.13-0.16 0.12-0.15
Working Pressure 0.20-0.24 0.17-0.22 0.13-0.18 0.11-0.14 0.10-0.13

Some normal sizes, customized sizes are also available

Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13

Marine Rubber Airbag Application

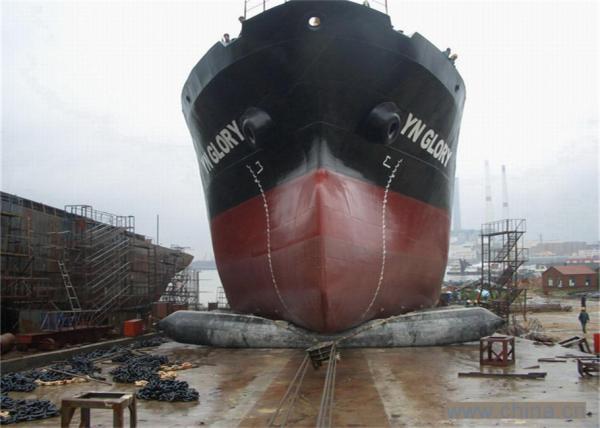

  • Ship Launching & Upgrading

With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic

  • Weight Lifting & Moving

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects

Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic

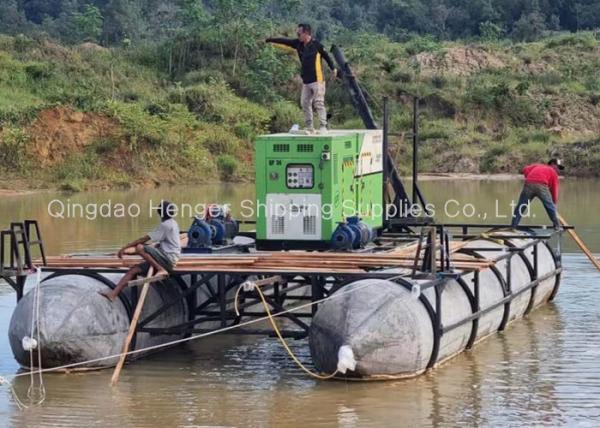

  • Buoyancy Aid & Salvage

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.

Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic
