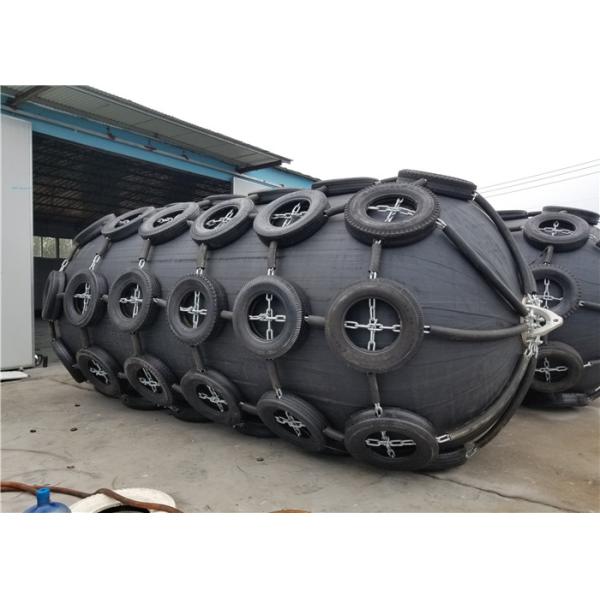

Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
Specifications
Brand Name :
Henger
Model Number :
1500*3000MM
Certification :
BV CCS LRS GL SGS
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100Pieces Per Month
Delivery Time :
5-7days
Packaging Details :
Node packing / Pallet
Product name :
Pnematic Rubber Fender / Yokahama Rubber Fender / Inflatable Rubber Fender
Brand :
HENGER
Material :
Natural Rubber
Size :
D0.5m-3.3m
Warranty period :
24months
Application :
STS,Ships and Boats
Packing :
Nude Packing/As Requirement
Design using life :
10 years
Feature :
Aging Resistance
Description

Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender

Pneumatic rubber fender introduction

Pneumatic rubber fender is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision when the ship is berthing. The pneumatic rubber fender is more economical and durable than the ordinary rubber fender, so it is more popular and widely used.

Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today and has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.

Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender

Pneumatic rubber fender Parameter

Fender Size Compression Amount(60%)

Noumenon Weight (kg)

Weight with Protective Jacket

(kg)

D

(mm)

L

(mm)

Reaction

(KN)

Energy Absorption

(KNM)
500 1000 64 6 23 35
600 1000 74 8 28 40
700 1000 137 17 58 52
1000 1500 182 32 82 100
1000 2000 257 45 148 152
1200 2000 297 63 167 200
1350 2500 427 102 220 298
1500 2500 499 134 270 300
1500 3000 579 153 318 450
1700 3000 639 191 380 482
2000 3500 875 308 580 890
2000 4000 1000 352 680 1000
2500 4000 1381 663 1064 1180
2500 5500 2019 1131 1268 1380
3000 5000 2422 1357 1980 2388
3000 6000 2906 1293 2400 2690
3300 4500 1884 1175 2380 2617
3300 6500 3015 1814 2980 3000
  • There are pneumatic rubber fender of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices.
  • Pneumatic rubber fender size could be customized according to customer requirement.
  • All accessories could be customized according to customers’ requirement or drawings.

Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender

Pneumatic Rubber Fender Features

1. Guaranteed energy absorption
2. Chain tyre net and sling type
3. Thick skin construction
4. Good angular performance
5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
6. No reduction on the performance of compression when inclined.
7. Suitable for areas with large or small tides.
8. Suitable in cold weather because the compressed air as buffering medium.
9. Especially in mooring of large scale ships in sea docks and lightering.

10. Maintains large clearances between hull and structure

Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender

Boat Rubber Fender Advantages

1. Safety and Reliability

are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this Rubber dock fender is based on accepted theory and has been proven by extensive experimentation. large-size Rubber dock fender s are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

2. No Deterioration or Variation in Performance

Rubber dock fender utilize the compressive elasticity of air, therefore performance deterioration due to fatigue is absent.

3. Advantages at Inclined Berthin

Rubber marine fenders energy absorption does not decrease at inclined compression up to 15 degrees.

4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Boat Rubber Fender ideal. The surface pressure of the Rubber marine fenders is equal to the internal air pressure. Due to low and uniform surface pressure properties, the Henger Rubber marine fenders are popular at LNG-ship terminals.

5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Henger Rubber marine fenders does not increase sharply, even under excess load conditions. Therefore, the Boat Rubber Fender perform well in such cases, and protect ships and mooring facilities.

6. Lower Mooring Forces under Rough Weather Conditions

The reaction force and deflection of Boat Rubber Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Pneumatic Rubber Fenders safely protect ships and mooring facilities even under rough weather.

Rubber Marine Fenders Storage instructions

1. When the rubber marine fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .

2 .The place where the fender is stored should be kept away from the heat source.

3 .rubber marine fender shall not be in contact with acids, alkalis, greases and organic solvents.

4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba.

In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict

accordance with the above recommendations.

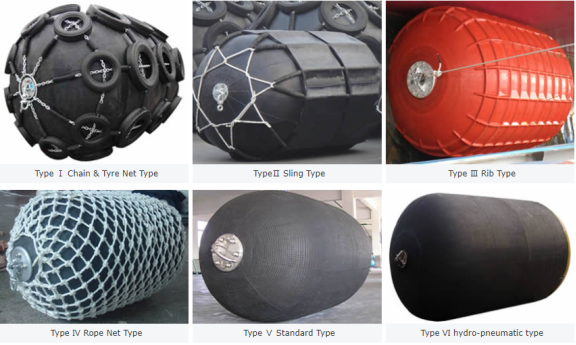

Pneumatic Rubber Fender Type

Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender

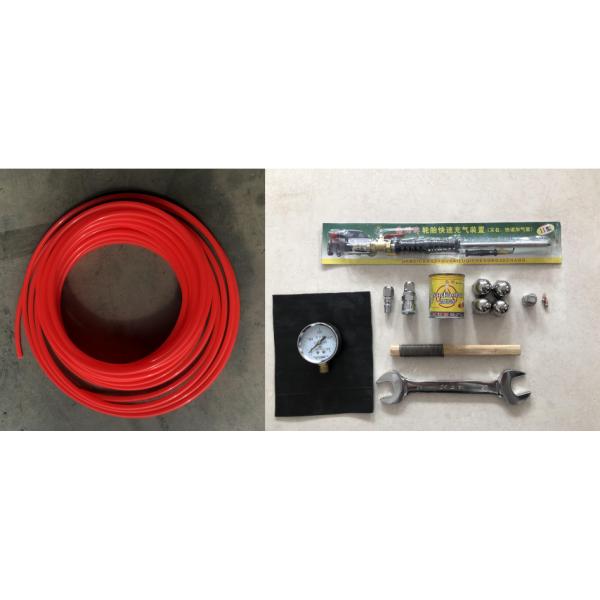

Pneumatic Rubber Fender Inflatable tool

Pneumatic Aging Resistance STS 3.3m Marine Rubber Fender
